Killark® LZ2N32330 LZ 4' 3LAMP 32W FLUO
SKU499555
MFGR #LZ2N32330
Your Cost: $2,641.68/ea

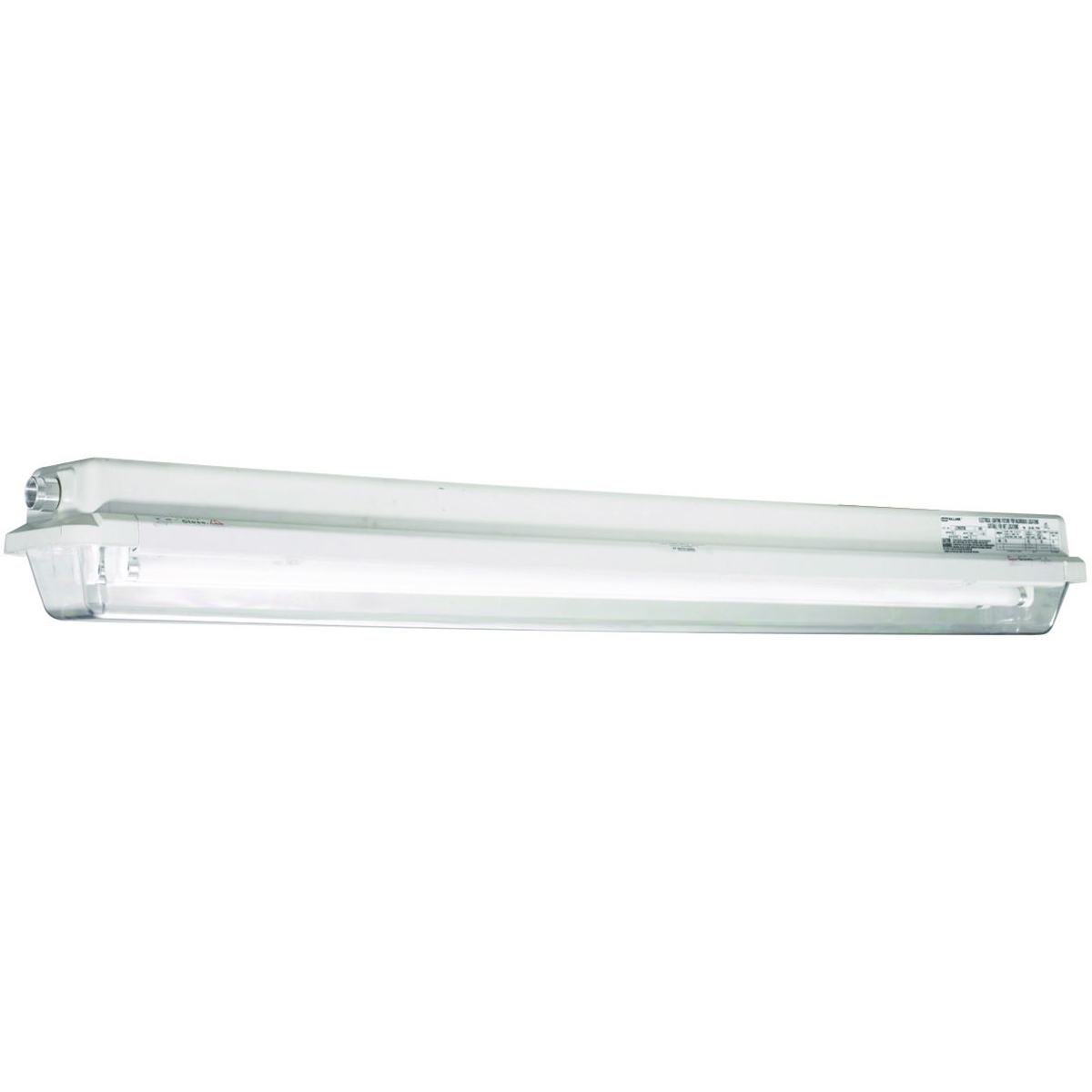

The LINEARLITE?® LZ2N 3 - 32 watt T8 lamp fixture is a rugged Non-Metallic fluorescent fixture that is suitable for wet, harsh andhazardous locations. Use where enclosed and gasketed fixtures arerequired to withstand exposure to moisture, dust and corrosives. Typicalareas used are in refineries, chemical plants, waste water &sewagetreatment facilities, as well as in tunnels, food processing and coastalareas. The LZ2N is good for Class I, Div. 2, Groups A,B,C,D and ClassI, Zone 2, Groups IIC, IIB, IIA and Class II, Div. 1 & 2, GroupsF,G
The LINEARLITE?® LZ2N 3 - 32 watt T8 lamp fixture is a rugged Non-Metallic fluorescent fixture that is suitable for wet, harsh andhazardous locations. Use where enclosed and gasketed fixtures arerequired to withstand exposure to moisture, dust and corrosives. Typicalareas used are in refineries, chemical plants, waste water &sewagetreatment facilities, as well as in tunnels, food processing and coastalareas. The LZ2N is good for Class I, Div. 2, Groups A,B,C,D and ClassI, Zone 2, Groups IIC, IIB, IIA and Class II, Div. 1 & 2, GroupsF,G
Amperage Rating 310m-710m A ARRA Compliant C Ballast Type T8 electronic fluorescent Buy American Compliant C Catalog Number LZ2N32330 Color White Country of Origin US Currency USD Dimensions 53.23 in L x 8.27 in W x 5.79 in H Enclosure Type NEMA 4X/IP66 EU RoHS Indicator C Finish Natural Frequency Rating 50/60 Hz Gross Volume Per Pack 29.25 Gross Volume per Pack Metric 479.32 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 21.0000 lb Gross Weight per Pack Metric 9.53 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9405118020 Height 6.50 in Height [Metric] 16.5100 cm Housing Material Fiberglass Reinforced Polyester Lamp Base Type G13 Snap-In/Bi-Pin Medium Lamp Included No Lamp Wattage 32 W Length 4.50 in Length [Metric] 11.4300 cm Lens Type Polycarbonate Material Polyester, Fiberglass Reinforced Mounting Pendant;Surface Mounting Type Pendant/Surface Number Of Lamps 0 Reflector Type Steel Reflector Returnable N Series LZ2N Socket Type G13 snap-in T12-T8 Standard cCSAus, ABS, NSF Style Double-ended lamp type fluorescent fixture Sub Brand LINEARLITE Type Non-Metallic Fluorescent Fixture UNSPSC 39111501 UPC 11 78393639517 UPC 12 783936395173 Wattage 32 W Width 1.00 in Width [Metric] 2.5400 cm Stock Status NONSTOCK Brand Killark Manufacturer Hubbell Fixture Wattage 85 W Housing Finish Natural/White Lamp Type T8 Voltage Rating 120 to 277 VAC LINEARLITE rugged non-metallic fluorescent fixtures are suitable for wet, harsh, and hazardous locations. Use where enclosed and gasketed fixtures are required to withstand exposure to moisture, dust, and corrosives. The LZ2N Series can also be used in Cl Housing-one piece fiberglass reinforced polyester, NEMA 4X and IP66 rated. Lexan clear lens, impact resistant polycarbonate. Two 3/4" NTP aluminum hubs - one at each end (includes one 3/4" close-up plug and two 3/4" x 1/2" reducers for maximum user flexib Lexan® clear lens, impact-resistant polycarbonate Housing one-piece fiberglass reinforced polyester, NEMA 4X and IP66 rated (2) 3/4 in NPT aluminum hubs - one at each end (includes one 3/4 in close-up plug and (2) 3/4 x 1/2 in reducers for maximum user flexibility) (2) 1/4-20 aluminum bushings furnished in top of fixture for threaded rod 0.71 A at 120 VAC, 0.31 A at 277 VAC Without lamp
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 310m-710m A |
| ARRA Compliant | C |
| Ballast Type | T8 electronic fluorescent |
| Buy American Compliant | C |
| Catalog Number | LZ2N32330 |
| Color | White |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 53.23 in L x 8.27 in W x 5.79 in H |
| Enclosure Type | NEMA 4X/IP66 |
| EU RoHS Indicator | C |
| Finish | Natural |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 29.25 |
| Gross Volume per Pack Metric | 479.32 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 21.0000 lb |
| Gross Weight per Pack Metric | 9.53 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9405118020 |
| Height | 6.50 in |
| Height [Metric] | 16.5100 cm |
| Housing Material | Fiberglass Reinforced Polyester |
| Lamp Base Type | G13 Snap-In/Bi-Pin Medium |
| Lamp Included | No |
| Lamp Wattage | 32 W |
| Length | 4.50 in |
| Length [Metric] | 11.4300 cm |
| Lens Type | Polycarbonate |
| Material | Polyester, Fiberglass Reinforced |
| Mounting | Pendant;Surface |
| Mounting Type | Pendant/Surface |
| Number Of Lamps | 0 |
| Reflector Type | Steel Reflector |
| Returnable | N |
| Series | LZ2N |
| Socket Type | G13 snap-in T12-T8 |
| Standard | cCSAus, ABS, NSF |
| Style | Double-ended lamp type fluorescent fixture |
| Sub Brand | LINEARLITE |
| Type | Non-Metallic Fluorescent Fixture |
| UNSPSC | 39111501 |
| UPC 11 | 78393639517 |
| UPC 12 | 783936395173 |
| Wattage | 32 W |
| Width | 1.00 in |
| Width [Metric] | 2.5400 cm |
| Stock Status | NONSTOCK |
| Brand | Killark |
| Manufacturer | Hubbell |
| Fixture Wattage | 85 W |
| Housing Finish | Natural/White |
| Lamp Type | T8 |
| Voltage Rating | 120 to 277 VAC |
| LINEARLITE rugged non-metallic fluorescent fixtures are suitable for wet, harsh, and hazardous locations. Use where enclosed and gasketed fixtures are required to withstand exposure to moisture, dust, and corrosives. The LZ2N Series can also be used in Cl |
| Housing-one piece fiberglass reinforced polyester, NEMA 4X and IP66 rated. Lexan clear lens, impact resistant polycarbonate. Two 3/4" NTP aluminum hubs - one at each end (includes one 3/4" close-up plug and two 3/4" x 1/2" reducers for maximum user flexib |
| Lexan® clear lens, impact-resistant polycarbonate |
| Housing one-piece fiberglass reinforced polyester, NEMA 4X and IP66 rated |
| (2) 3/4 in NPT aluminum hubs - one at each end (includes one 3/4 in close-up plug and (2) 3/4 x 1/2 in reducers for maximum user flexibility) |
| (2) 1/4-20 aluminum bushings furnished in top of fixture for threaded rod |
| 0.71 A at 120 VAC, 0.31 A at 277 VAC |
| Without lamp |
