Intermatic®

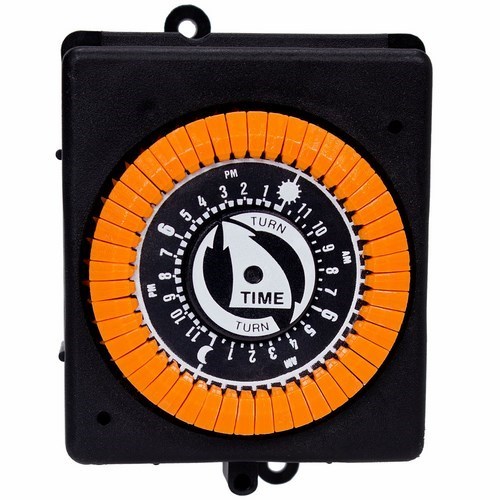

Intermatic® PB913N PB Series Electro-Mechanical Mechanical Timer, 24 hr Time Setting, 120/277 VAC, 2 hp, 1NO SPST Contact Form
Custom_Product_Images_Illustration
Intermatic®
Intermatic® PB913N PB Series Electro-Mechanical Mechanical Timer, 24 hr Time Setting, 120/277 VAC, 2 hp, 1NO SPST Contact Form
SKU622889
MFGR #PB913N
Your Cost: $31.94/ea
List: Intermatic® Mechanical Timer, Electro-Mechanical, Series: PB Series, 120/277 VAC, 20 A, 2 hp, 1 Pole, 1NO SPST, 24 hr, Panel Mount, 3-1/3 in H x 2-13/16 in W x 1-61/64 in D
Intermatic® Mechanical Timer, Electro-Mechanical, Series: PB Series, 120/277 VAC, 20 A, 2 hp, 1 Pole, 1NO SPST, 24 hr, Panel Mount, 3-1/3 in H x 2-13/16 in W x 1-61/64 in D
Action SPST Amperage Rating 20 A Application Filter Pumps, Booster Pumps, Sprinkler Systems, Heating Systems, Lights, Cleaning Systems, Security Systems ARRA Compliant N Buy American Compliant N Catalog Number PB913N Contact Configuration 1 NO Contact Rating 20 AMP @ 120 - 277 VAC (Resistive), 1250 WTT @ 125 VAC (Tungsten) Country of Origin MX Currency USD Dimensions 3-1/3 in H x 2-13/16 in W x 1-61/64 in D EU RoHS Indicator C Gross Weight Per Pack 19.0000 lb Gross Weight per Pack Metric 8.62 Gross Weight UOM Metric kg Height 4.12 in Height [Metric] 10.4775 cm Length 24.00 in Length [Metric] 60.9600 cm Mounting Panel Mount Mounting Type Panel Number Of Poles 1 Series PB Series Size 3-1/3 HEIGHT X 2-13/16 WIDTH X 1-61/64 DEPTH IN, 84.8 HEIGHT X 17.4 WIDTH X 49.6 DEPTH CM Standard CSA, UL Listed, cCSAus Certified, UL Recognized Standards CSA, cCSAus Certified, RoHS Compliant, UL Listed Timer Duration 24 hr Timing Range 0-24 hr Type Electromechanical UNSPSC 39122208 UPC 11 07827570146 UPC 12 07827570146 Wattage 1,250 W Width 19.00 in Width [Metric] 48.2600 cm Stock Status NONSTOCK Brand Intermatic® Manufacturer Intermatic Incorporated Contact Form 1NO SPST Horsepower 1 hp Time Setting 24 hr Voltage Rating 120 VAC Filter Pumps, Booster Pumps, Sprinkler Systems, Heating Systems, Lights, Cleaning Systems, Security Systems Features: Automated Control, 3 Different Mounting Methods, These timers provide automatic control for pumps, cleaners and other types of loads Automated control for pumps, cleaners, and other types of loads 3 different mounting methods Quick connect terminals for easy installation 24-hour timing cycle - MIN ON time 1-hr, MAX ON time 23-hr, 30-min intervals 7-day timing cycle - 6 to 162-hr ON time, 3-hr intervals 20 A at 120 - 277 VAC (resistive), 1250 WTT at 125 VAC (tungsten) 1 hp, 16 FLA at 120 VAC, 2 hp, 12 FLA at 240 VAC motor 60 Hz 1250 W power 24 hr time duration Terminals - (4) 1/4 in male, (2) for load, (2) for independent clock motor 48 trippers Without Manual Override
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | SPST |
| Amperage Rating | 20 A |
| Application | Filter Pumps, Booster Pumps, Sprinkler Systems, Heating Systems, Lights, Cleaning Systems, Security Systems |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PB913N |
| Contact Configuration | 1 NO |
| Contact Rating | 20 AMP @ 120 - 277 VAC (Resistive), 1250 WTT @ 125 VAC (Tungsten) |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3-1/3 in H x 2-13/16 in W x 1-61/64 in D |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 19.0000 lb |
| Gross Weight per Pack Metric | 8.62 |
| Gross Weight UOM Metric | kg |
| Height | 4.12 in |
| Height [Metric] | 10.4775 cm |
| Length | 24.00 in |
| Length [Metric] | 60.9600 cm |
| Mounting | Panel Mount |
| Mounting Type | Panel |
| Number Of Poles | 1 |
| Series | PB Series |
| Size | 3-1/3 HEIGHT X 2-13/16 WIDTH X 1-61/64 DEPTH IN, 84.8 HEIGHT X 17.4 WIDTH X 49.6 DEPTH CM |
| Standard | CSA, UL Listed, cCSAus Certified, UL Recognized |
| Standards | CSA, cCSAus Certified, RoHS Compliant, UL Listed |
| Timer Duration | 24 hr |
| Timing Range | 0-24 hr |
| Type | Electromechanical |
| UNSPSC | 39122208 |
| UPC 11 | 07827570146 |
| UPC 12 | 07827570146 |
| Wattage | 1,250 W |
| Width | 19.00 in |
| Width [Metric] | 48.2600 cm |
| Stock Status | NONSTOCK |
| Brand | Intermatic® |
| Manufacturer | Intermatic Incorporated |
| Contact Form | 1NO SPST |
| Horsepower | 1 hp |
| Time Setting | 24 hr |
| Voltage Rating | 120 VAC |
| Filter Pumps, Booster Pumps, Sprinkler Systems, Heating Systems, Lights, Cleaning Systems, Security Systems |
| Features: Automated Control, 3 Different Mounting Methods, These timers provide automatic control for pumps, cleaners and other types of loads |
| Automated control for pumps, cleaners, and other types of loads |
| 3 different mounting methods |
| Quick connect terminals for easy installation |
| 24-hour timing cycle - MIN ON time 1-hr, MAX ON time 23-hr, 30-min intervals |
| 7-day timing cycle - 6 to 162-hr ON time, 3-hr intervals |
| 20 A at 120 - 277 VAC (resistive), 1250 WTT at 125 VAC (tungsten) |
| 1 hp, 16 FLA at 120 VAC, 2 hp, 12 FLA at 240 VAC motor |
| 60 Hz |
| 1250 W power |
| 24 hr time duration |
| Terminals - (4) 1/4 in male, (2) for load, (2) for independent clock motor |
| 48 trippers |
| Without Manual Override |
