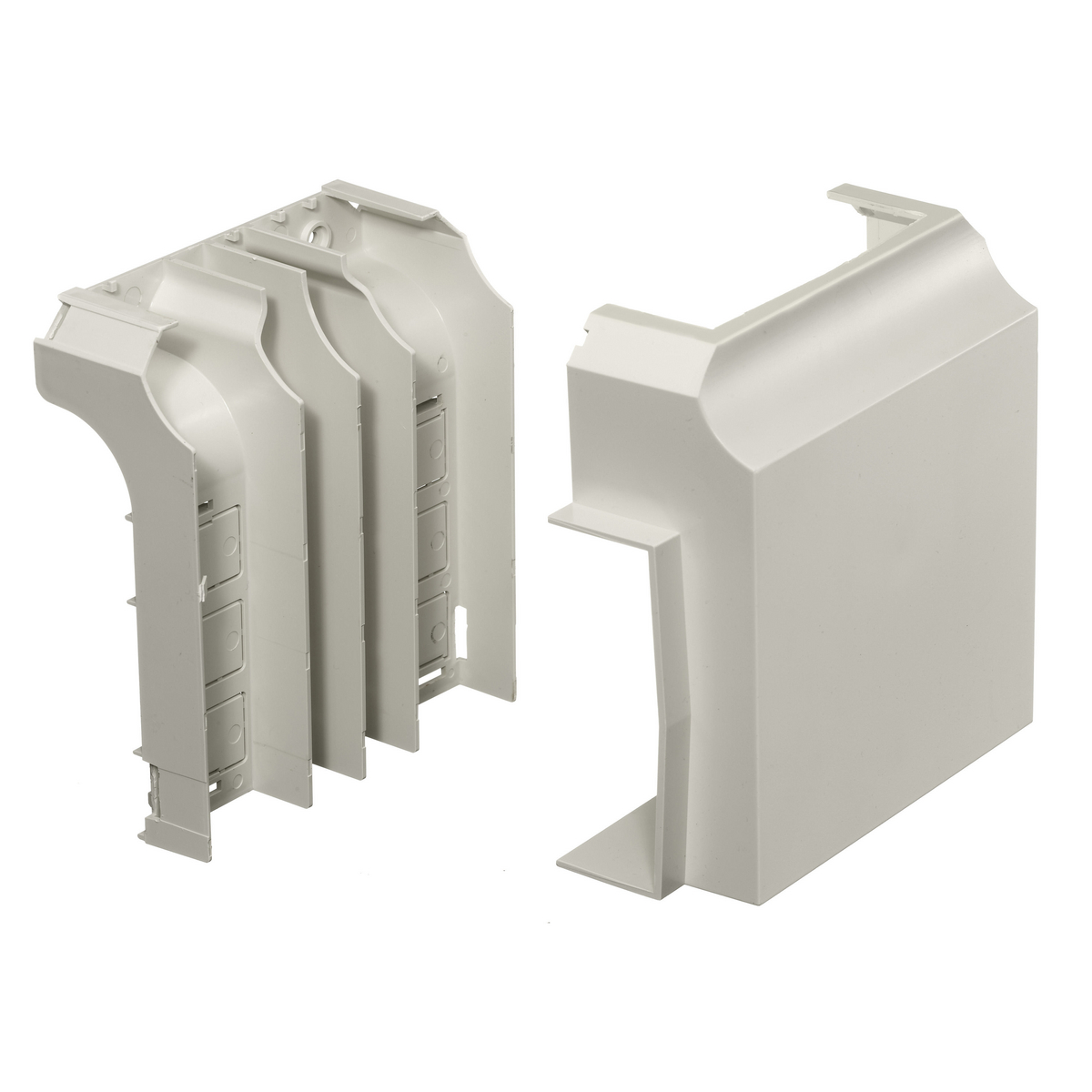

Hubbell Wiring Device-Kellems PB3TCBCA Tee Base and Cover, For Use With BASETRAK® PB2, PB3 Series Non-Metallic Raceway, PVC, Off-White
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems PB3TCBCA Tee Base and Cover, For Use With BASETRAK® PB2, PB3 Series Non-Metallic Raceway, PVC, Off-White
SKU278195
MFGR #PB3TCBCA
Your Cost: $34.31/ea
List: POLYTRAK® Non-Metallic Surface Raceway is a complete system that includes raceway, fittings, boxes and devices. Sizes range from single channel PREMISETRAK® to three channel. Super BASETRAK® for all types of surface raceway requirements. Single and two channel latching raceways are dual-rated for both power and data applications, reducing inventory requirements.
POLYTRAK® Non-Metallic Surface Raceway is a complete system that includes raceway, fittings, boxes and devices. Sizes range from single channel PREMISETRAK® to three channel. Super BASETRAK® for all types of surface raceway requirements. Single and two channel latching raceways are dual-rated for both power and data applications, reducing inventory requirements.
Application Tee Fitting Base and Cover ARRA Compliant C Buy American Compliant C Catalog Number PB3TCBCA Construction Extruded Country of Origin PR Currency USD Dimensions 7.37 in L x 7.06 in W x 2.72 in H EU RoHS Indicator Y Finish Office White Gross Weight Per Pack 0.9500 lb Gross Weight per Pack Metric 0.41 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 3925900000 Height 3.39 in Height [Metric] 8.6106 cm Length 7.37 in Length [Metric] 18.7198 cm Nominal Cross Section 5.57 Square Inches Non Hazardous Location Non-Hazardous Returnable Y Series PB2/PB3 Standard CSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A Standards ARRA CompliantBuy American Act CompliantUL 5ACSA C22.2 File No. 62 Sub Brand Non-Metallic Raceway Products Type Non-Metallic Standard UNSPSC 39131711 UPC 11 78358561043 UPC 12 783585610436 Width 7.24 in Width [Metric] 18.3896 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Color Off-White Material Extruded PVC Suitable For Use With BaseTrak® Non-Metallic Raceways Tee Fitting Base and Cover Standard Product Without knockouts Eliminates need to order three separate boxes and reducing inventory requirements Boxes utilize Hubbell® KP plates or iSTATION™ modules and bezel Full capacity in-line boxes eliminate the need to de-rate the wire fill capacity due to the intrusion of devices into the raceway channel 5 ft-lb impact resistance 300 lb crush resistance -25.6 to 158 deg F temperature UL 94V-0 flammability rating UV stabilized PVC material
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Tee Fitting Base and Cover |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | PB3TCBCA |
| Construction | Extruded |
| Country of Origin | PR |
| Currency | USD |
| Dimensions | 7.37 in L x 7.06 in W x 2.72 in H |
| EU RoHS Indicator | Y |
| Finish | Office White |
| Gross Weight Per Pack | 0.9500 lb |
| Gross Weight per Pack Metric | 0.41 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 3925900000 |
| Height | 3.39 in |
| Height [Metric] | 8.6106 cm |
| Length | 7.37 in |
| Length [Metric] | 18.7198 cm |
| Nominal Cross Section | 5.57 Square Inches |
| Non Hazardous Location | Non-Hazardous |
| Returnable | Y |
| Series | PB2/PB3 |
| Standard | CSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A |
| Standards | ARRA CompliantBuy American Act CompliantUL 5ACSA C22.2 File No. 62 |
| Sub Brand | Non-Metallic Raceway Products |
| Type | Non-Metallic Standard |
| UNSPSC | 39131711 |
| UPC 11 | 78358561043 |
| UPC 12 | 783585610436 |
| Width | 7.24 in |
| Width [Metric] | 18.3896 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Color | Off-White |
| Material | Extruded PVC |
| Suitable For Use With | BaseTrak® Non-Metallic Raceways |
| Tee Fitting Base and Cover |
| Standard Product |
| Without knockouts |
| Eliminates need to order three separate boxes and reducing inventory requirements |
| Boxes utilize Hubbell® KP plates or iSTATION™ modules and bezel |
| Full capacity in-line boxes eliminate the need to de-rate the wire fill capacity due to the intrusion of devices into the raceway channel |
| 5 ft-lb impact resistance |
| 300 lb crush resistance |
| -25.6 to 158 deg F temperature |
| UL 94V-0 flammability rating |
| UV stabilized PVC material |
