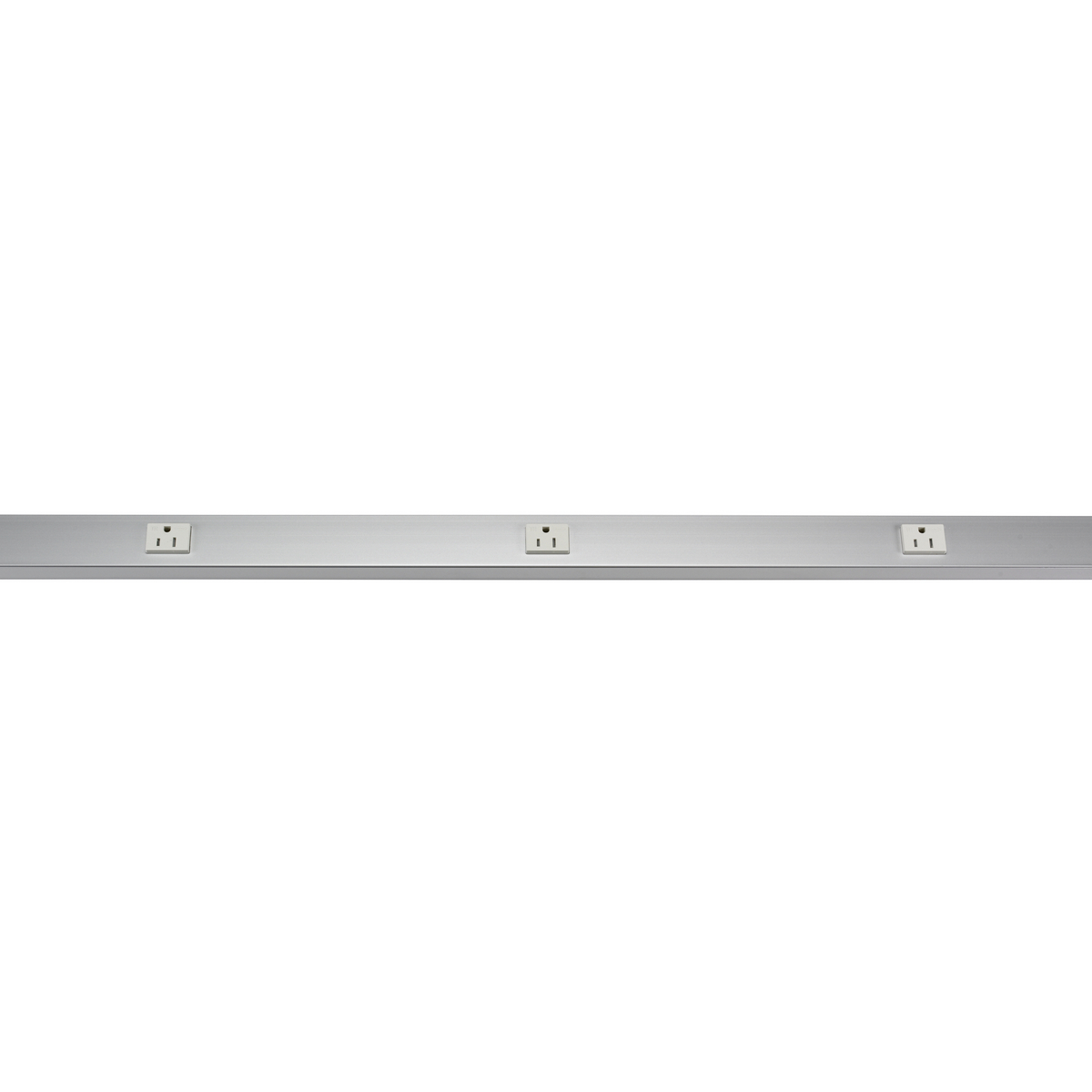

Hubbell Wiring Device-Kellems HBLALU20GB512TR PLUGTRAK TAMPE
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems HBLALU20GB512TR PLUGTRAK TAMPE
SKU794815
MFGR #HBLALU20GB512TR
Your Cost: $210.14/ea
Tamper-Resistant (TR) PlugTrak is an ideal solution when additional outlets are required in kitchens, workshops, laboratories and many other areas of a home, school or commercial building. TR PlugTrak complies with NEC 406.12 which calls for "Tamper-Resistant Receptacles in Dwelling Units". Hubbell offers a broad range of Tamper-Resistant PlugTrak. Available in aluminum, steel and non-metallic versions, each material is offered in 15 A and 20 A configurations, with a variety of lengths and receptacle spacing options. Hubbell's 20 A PlugTrak features the same compact housing as our 15 A product. A wide assortment of accessories allow for easy installation in every application.
Tamper-Resistant (TR) PlugTrak is an ideal solution when additional outlets are required in kitchens, workshops, laboratories and many other areas of a home, school or commercial building. TR PlugTrak complies with NEC 406.12 which calls for "Tamper-Resistant Receptacles in Dwelling Units". Hubbell offers a broad range of Tamper-Resistant PlugTrak. Available in aluminum, steel and non-metallic versions, each material is offered in 15 A and 20 A configurations, with a variety of lengths and receptacle spacing options. Hubbell's 20 A PlugTrak features the same compact housing as our 15 A product. A wide assortment of accessories allow for easy installation in every application.
Amperage Rating 15 A Application Permanently Installed ARRA Compliant C Buy American Compliant C Cable Type 12 AWG THHN Stranded Catalog Number HBLALU20GB512TR Control None Country of Origin MX Currency USD Environmental Conditions Indoor Only EU RoHS Indicator N Finish Satin Anodized Frequency Rating 60 Hz Fuse Rating None Gross Weight Per Pack 2.2500 lb Gross Weight per Pack Metric 1.02 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536698000 Height [Metric] 3.8100 cm Insulation Fully Insulated Length [Metric] 152.4000 cm Mounting Mounting holes Mounting Type Hole Number of Outlets 5 Number Of Receptacles 5 Outlet Center Distance 12 in Outlet Configuration (5) Tamper Resistant Receptacle, (1) Circuit Outlet Rating 15 A Outlet Type Single Receptacle/Circuit Phase 1 Receptacle Included Returnable N Standard CSA Standard C22.2 no. 62;E253976 /E253830 /E253833;UL Standard UL 5 Standards ARRA CompliantBuy American Act CompliantUL 5UL 498CSA C22.2 No. 2 Sub Brand PlugTrak Type Single Circuit UNSPSC 39121031 UPC 11 78358545594 UPC 12 783585455945 Voltage Rating 125 VAC Wattage 1,875 W Width [Metric] 7.6200 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Height 1.50 in Length 60.00 in Material Aluminum Width 3.00 in Permanently Installed Tamper Resistant (5) 15 A 12 in spacing receptacles
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 15 A |
| Application | Permanently Installed |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Cable Type | 12 AWG THHN Stranded |
| Catalog Number | HBLALU20GB512TR |
| Control | None |
| Country of Origin | MX |
| Currency | USD |
| Environmental Conditions | Indoor Only |
| EU RoHS Indicator | N |
| Finish | Satin Anodized |
| Frequency Rating | 60 Hz |
| Fuse Rating | None |
| Gross Weight Per Pack | 2.2500 lb |
| Gross Weight per Pack Metric | 1.02 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536698000 |
| Height [Metric] | 3.8100 cm |
| Insulation | Fully Insulated |
| Length [Metric] | 152.4000 cm |
| Mounting | Mounting holes |
| Mounting Type | Hole |
| Number of Outlets | 5 |
| Number Of Receptacles | 5 |
| Outlet Center Distance | 12 in |
| Outlet Configuration | (5) Tamper Resistant Receptacle, (1) Circuit |
| Outlet Rating | 15 A |
| Outlet Type | Single Receptacle/Circuit |
| Phase | 1 |
| Receptacle | Included |
| Returnable | N |
| Standard | CSA Standard C22.2 no. 62;E253976 /E253830 /E253833;UL Standard UL 5 |
| Standards | ARRA CompliantBuy American Act CompliantUL 5UL 498CSA C22.2 No. 2 |
| Sub Brand | PlugTrak |
| Type | Single Circuit |
| UNSPSC | 39121031 |
| UPC 11 | 78358545594 |
| UPC 12 | 783585455945 |
| Voltage Rating | 125 VAC |
| Wattage | 1,875 W |
| Width [Metric] | 7.6200 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Height | 1.50 in |
| Length | 60.00 in |
| Material | Aluminum |
| Width | 3.00 in |
| Permanently Installed |
| Tamper Resistant |
| (5) 15 A 12 in spacing receptacles |
