Carlon® CS16147 Single Door JIC Enclosure Assembly, 16 in L x 14 in W x 7 in D, NEMA N12/4X, Polycarbonate

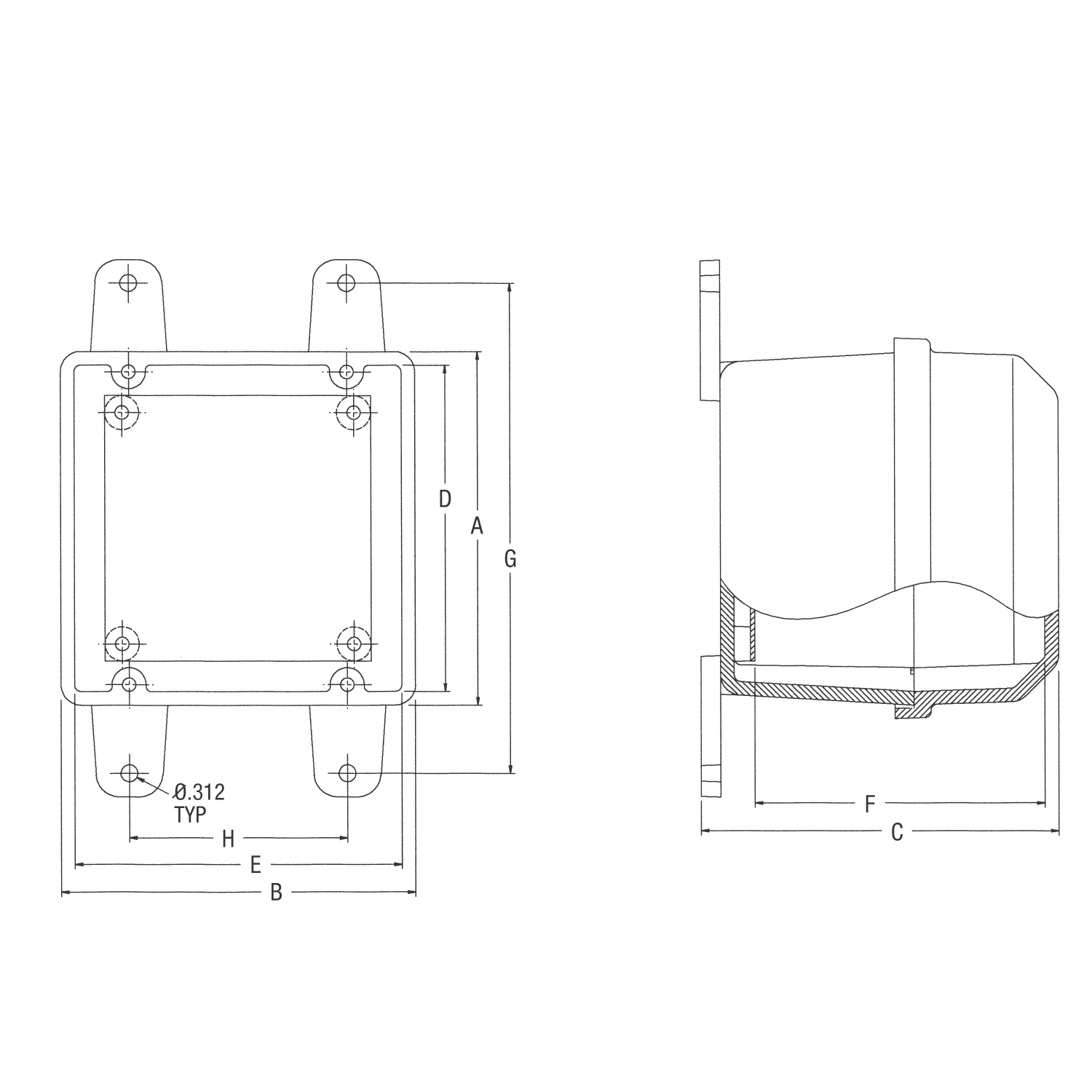

Custom_Product_Images_Illustration
Carlon® CS16147 Single Door JIC Enclosure Assembly, 16 in L x 14 in W x 7 in D, NEMA N12/4X, Polycarbonate
SKU489277
MFGR #CS16147
Your Cost: $432.50/ea
Manufactured from structural foam thermoplastic, Carlon® Circuit Safe® JIC enclosures provide high impact strength to eliminate dents and deformations along with high dielectric
Manufactured from structural foam thermoplastic, Carlon® Circuit Safe® JIC enclosures provide high impact strength to eliminate dents and deformations along with high dielectric
Alternate Catalog Number 7TAA238230R0022 Application Instrument case ARRA Compliant C Buy American Compliant C Catalog Number CS16147 Color Gray Country of Origin US Cover Type Screw-On Currency USD EU RoHS Indicator C Gross Weight Per Pack 11.8800 lb Gross Weight per Pack Metric 5.39 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 3926909989 Height [Metric] 0.0254 cm Item Group 5Y Item Group 2 5YE Length [Metric] 0.0254 cm Mounting Type Rail Panel Size 14.75 in H x 12.88 in W Returnable C Standards ARRA CompliantBuy American Act CompliantRoHS CompliantJIC CompliantcULus ListedCSA Certified Temperature Rating -31 to 230 °F Type Factory Assembled UNSPSC 39121324 UPC 11 03448110235 UPC 12 034481102359 Width [Metric] 0.0254 cm Stock Status NONSTOCK Brand Carlon® Manufacturer Thomas & Betts Depth 16 in Height 0.01 in Length 0.01 in Material Polycarbonate NEMA Rating NEMA 1/3/3S/3X/3SX/4/4X/12/13 Width 0.01 in Instrument case Non-metallic mounting feet with all mounting hardware included. Hinge caps make covers captive Non-metallic mounting feet with all mounting hardware included No rough corners, sharp edges or burrs Non-conductive eliminates danger of electrical shock Lid design provides greater usable internal volume Ample interior space for ease of wiring Fully gasketed Ultraviolet stabilized for outdoor use White painted 14 ga steel or 1/4 in PVC back panel Brass screw inserts 380 V/mil dielectric strength, 3 at 60 Hz, 2.96 at 106 Hz dielectric constant
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 7TAA238230R0022 |
| Application | Instrument case |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | CS16147 |
| Color | Gray |
| Country of Origin | US |
| Cover Type | Screw-On |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 11.8800 lb |
| Gross Weight per Pack Metric | 5.39 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 3926909989 |
| Height [Metric] | 0.0254 cm |
| Item Group | 5Y |
| Item Group 2 | 5YE |
| Length [Metric] | 0.0254 cm |
| Mounting Type | Rail |
| Panel Size | 14.75 in H x 12.88 in W |
| Returnable | C |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantJIC CompliantcULus ListedCSA Certified |
| Temperature Rating | -31 to 230 °F |
| Type | Factory Assembled |
| UNSPSC | 39121324 |
| UPC 11 | 03448110235 |
| UPC 12 | 034481102359 |
| Width [Metric] | 0.0254 cm |
| Stock Status | NONSTOCK |
| Brand | Carlon® |
| Manufacturer | Thomas & Betts |
| Depth | 16 in |
| Height | 0.01 in |
| Length | 0.01 in |
| Material | Polycarbonate |
| NEMA Rating | NEMA 1/3/3S/3X/3SX/4/4X/12/13 |
| Width | 0.01 in |
| Instrument case |
| Non-metallic mounting feet with all mounting hardware included. |
| Hinge caps make covers captive |
| Non-metallic mounting feet with all mounting hardware included |
| No rough corners, sharp edges or burrs |
| Non-conductive eliminates danger of electrical shock |
| Lid design provides greater usable internal volume |
| Ample interior space for ease of wiring |
| Fully gasketed |
| Ultraviolet stabilized for outdoor use |
| White painted 14 ga steel or 1/4 in PVC back panel |
| Brass screw inserts |
| 380 V/mil dielectric strength, 3 at 60 Hz, 2.96 at 106 Hz dielectric constant |
