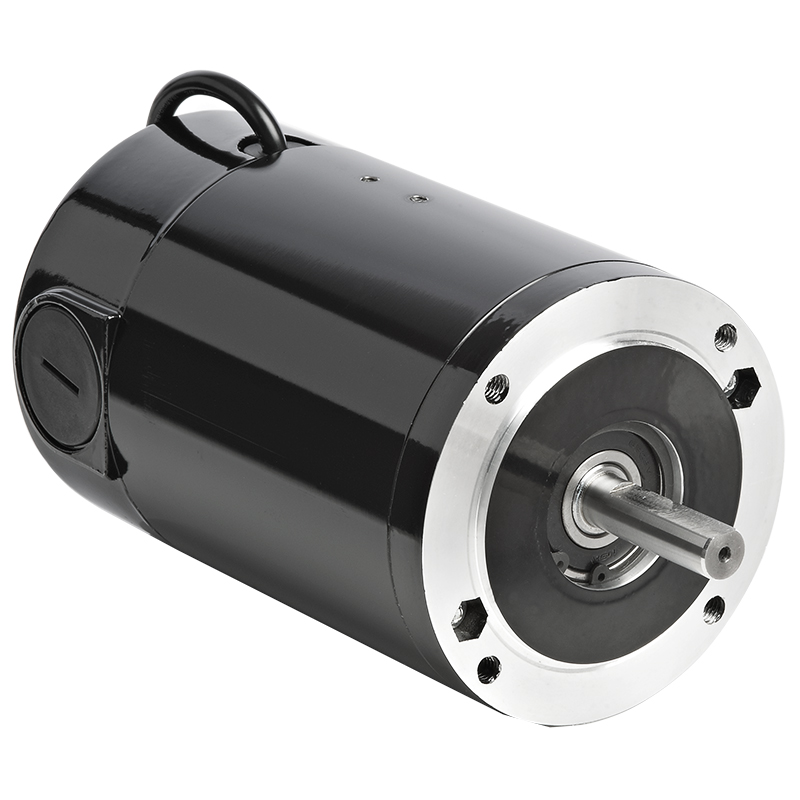

Bodine 4035 42A5BEPM
SKU1153418
MFGR #4035
Your Cost: $461.97/ea
BODINE 4035 42A5BEPM
BODINE 4035 42A5BEPM
Application Performance ratings of 130V models are based on use with filtered controls.Face mount is standard. Catalog Number 4035 Enclosure Type TENV (Totally Enclosed Non-Ventilated) Full Load Current 1.8 A Harmonization Code 8501.31.3000 Horsepower 1/4 HP Insulation Class B IP Rating IP20 Motor Power DC Mounting Type Face NEMA Frame Size 42A Optional Accessories Accessory ready models are available for installation of encoders or brakes.IP-44 achieved with terminal box model 0984 or 1984 (90/130 VDC and 130 VDC models only).IP-44 achieved with boot kit model 0978.Base mount kit model 0991. Standard CSA;CURUS;ROHS;UL Supply Voltage 130 V UPC 11 78169340350 UPC 12 78169340350 Stock Status NONSTOCK Brand Bodine Electric Company Manufacturer Bodine Electric Company Performance ratings of 130V models are based on use with filtered controls.Face mount is standard. -Totally enclosed non-ventilated (IP-40--Class "F" insulation--NEMA 42CZ models are class "F" rated--External brush access for easy inspection and replacement--Constant force brush springs for long life and quietness--Pre-seated graphite or copper-graphite brushes for optimum performance and quiet operation--Skewed armature for smooth low speed operation--Oversized magnets resist demagnetization, stabilized to common strength for consistent performance--High starting torque and self-braking--Noise-tested ball bearings permanently lubricated--Locked bearing minimizes endplay-
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Performance ratings of 130V models are based on use with filtered controls.Face mount is standard. |
| Catalog Number | 4035 |
| Enclosure Type | TENV (Totally Enclosed Non-Ventilated) |
| Full Load Current | 1.8 A |
| Harmonization Code | 8501.31.3000 |
| Horsepower | 1/4 HP |
| Insulation Class | B |
| IP Rating | IP20 |
| Motor Power | DC |
| Mounting Type | Face |
| NEMA Frame Size | 42A |
| Optional Accessories | Accessory ready models are available for installation of encoders or brakes.IP-44 achieved with terminal box model 0984 or 1984 (90/130 VDC and 130 VDC models only).IP-44 achieved with boot kit model 0978.Base mount kit model 0991. |
| Standard | CSA;CURUS;ROHS;UL |
| Supply Voltage | 130 V |
| UPC 11 | 78169340350 |
| UPC 12 | 78169340350 |
| Stock Status | NONSTOCK |
| Brand | Bodine Electric Company |
| Manufacturer | Bodine Electric Company |
| Performance ratings of 130V models are based on use with filtered controls.Face mount is standard. |
| -Totally enclosed non-ventilated (IP-40--Class "F" insulation--NEMA 42CZ models are class "F" rated--External brush access for easy inspection and replacement--Constant force brush springs for long life and quietness--Pre-seated graphite or copper-graphite brushes for optimum performance and quiet operation--Skewed armature for smooth low speed operation--Oversized magnets resist demagnetization, stabilized to common strength for consistent performance--High starting torque and self-braking--Noise-tested ball bearings permanently lubricated--Locked bearing minimizes endplay- |
