SKU338108
MFGR #7000132786
Your Cost: $1,488.59/ea

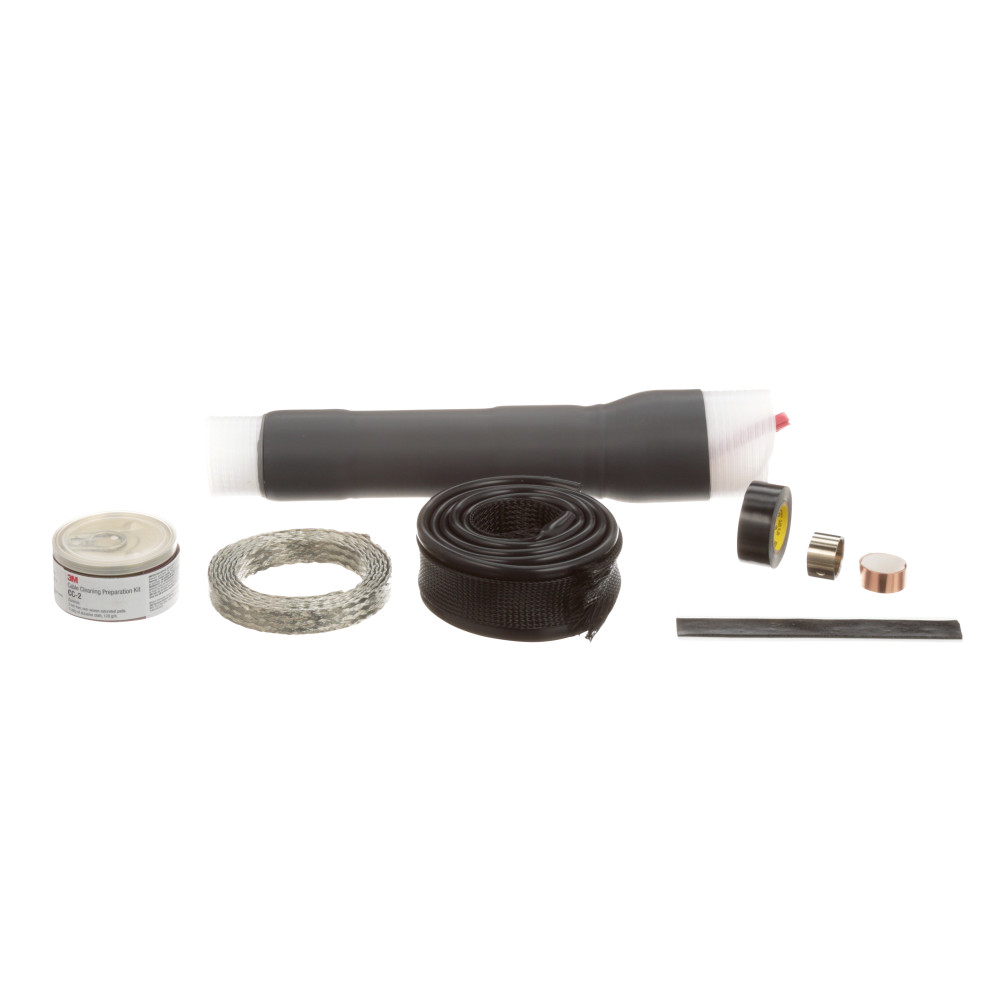

List: 3M™ Cold Shrink QT-III 7600-T-3-RJS Series Termination Kit includes a non-skirted, 3-phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages of 5 - 35 kV.
3M™ Cold Shrink QT-III 7600-T-3-RJS Series Termination Kit includes a non-skirted, 3-phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages of 5 - 35 kV.
Alternate Catalog Number 7624-T-110-3-RJS Application INDOOR ARRA Compliant X Buy American Compliant X Cable Type Tape Shield; UniShield(R); Wire Shield Catalog Number 7000132786 Conductor Size 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil Country of Origin US Currency USD EU RoHS Indicator C Expiry|Spoilage Date Applicable Indicator Y Gross Weight Per Pack 6.2000 lb Gross Weight per Pack Metric 2.81 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8546900000 Height 8.30 in Height [Metric] 21.0820 cm Length 25.70 in Length [Metric] 65.2780 cm Material Composition Declaration Contact 3M for information Number Of Pieces 3 Number Of Terminals 3 Returnable Y Series 7600-T-3-RJS Specifications 5 kV, 8 kV, 15 kV, 110 kV BIL-Rated, 0.92 to 1.18 in OD Cable Insulation, 12 in Max Installed Length, 250 kcmil, 300 kcmil, 350 kcmil, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil Conductor Size Standard AEIC; IEC; JIS Standards ARRA CompliantBuy American Act CompliantRoHS CompliantJISIECAEIC Approved Type Cold Shrink QT-III UNSPSC 39120000 UPC 11 05400704712 UPC 12 054007047124 Voltage Rating 5,000/8,000/15,000 V Width 7.70 in Width [Metric] 19.5580 cm Stock Status NONSTOCK Brand 3M™ Manufacturer 3M™ Color Black Material Silicon Rubber Suitable For Use With Three Core Tape Shield, Wire Shield and UniShield® Cable Indoor Provides a void free seal to tape shield, wire shield and UniShield® power cables High dielectric constant material regulates the distribution of electric field stress Integrated design allows for easier installation, while sealing compounds provide constant radial pressure UniShield®, wire shield, tape shield shielding type Conductor size by voltage (5 kV) 500 to 750 kcmil, (8 kV) 400 to 600 kcmil, (15 kV) 250 to 450 kcmil 3 terminal 3 terminals
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 7624-T-110-3-RJS |
| Application | INDOOR |
| ARRA Compliant | X |
| Buy American Compliant | X |
| Cable Type | Tape Shield; UniShield(R); Wire Shield |
| Catalog Number | 7000132786 |
| Conductor Size | 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | C |
| Expiry|Spoilage Date Applicable Indicator | Y |
| Gross Weight Per Pack | 6.2000 lb |
| Gross Weight per Pack Metric | 2.81 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8546900000 |
| Height | 8.30 in |
| Height [Metric] | 21.0820 cm |
| Length | 25.70 in |
| Length [Metric] | 65.2780 cm |
| Material Composition Declaration | Contact 3M for information |
| Number Of Pieces | 3 |
| Number Of Terminals | 3 |
| Returnable | Y |
| Series | 7600-T-3-RJS |
| Specifications | 5 kV, 8 kV, 15 kV, 110 kV BIL-Rated, 0.92 to 1.18 in OD Cable Insulation, 12 in Max Installed Length, 250 kcmil, 300 kcmil, 350 kcmil, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil Conductor Size |
| Standard | AEIC; IEC; JIS |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantJISIECAEIC Approved |
| Type | Cold Shrink QT-III |
| UNSPSC | 39120000 |
| UPC 11 | 05400704712 |
| UPC 12 | 054007047124 |
| Voltage Rating | 5,000/8,000/15,000 V |
| Width | 7.70 in |
| Width [Metric] | 19.5580 cm |
| Stock Status | NONSTOCK |
| Brand | 3M™ |
| Manufacturer | 3M™ |
| Color | Black |
| Material | Silicon Rubber |
| Suitable For Use With | Three Core Tape Shield, Wire Shield and UniShield® Cable |
| Indoor |
| Provides a void free seal to tape shield, wire shield and UniShield® power cables |
| High dielectric constant material regulates the distribution of electric field stress |
| Integrated design allows for easier installation, while sealing compounds provide constant radial pressure |
| UniShield®, wire shield, tape shield shielding type |
| Conductor size by voltage (5 kV) 500 to 750 kcmil, (8 kV) 400 to 600 kcmil, (15 kV) 250 to 450 kcmil |
| 3 terminal |
| 3 terminals |
