SKU312840
MFGR #WF3LP
Your Cost: $1,380.76/ea

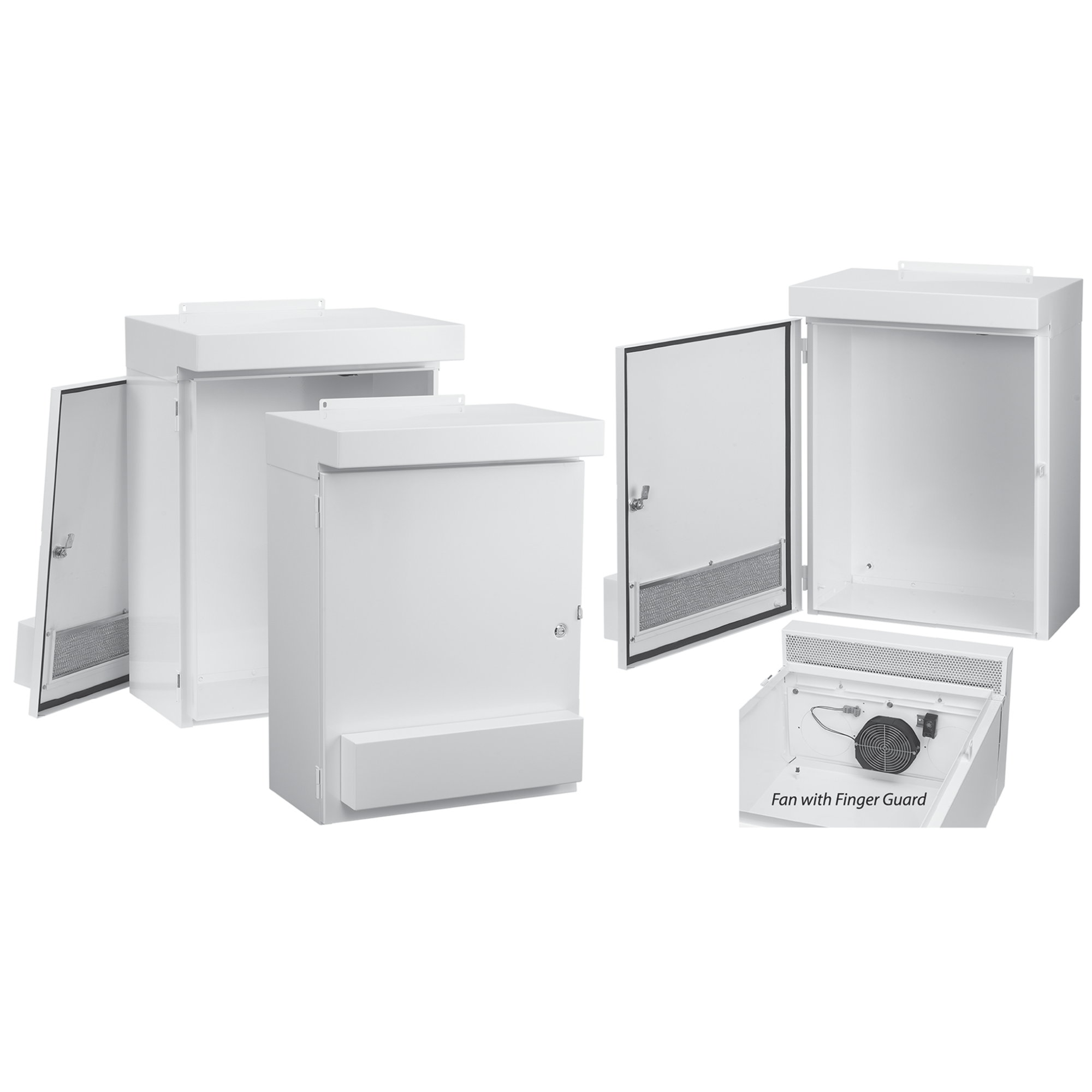

List: nVent HOFFMAN WeatherFlo™ Enclosure, Vented, Series: A3RD, 29 in Length, 24 in Width, 12 in Depth, NEMA 3R/IP32, Hinged/Lift-Off Cover, 21 in W x 21 in H Panel, Lock: Quarter Turn Latch, 115 VAC, 75 cfm, 3 hp, Wall Mount, Steel, Polyester Powder Painted, White
nVent HOFFMAN WeatherFlo™ Enclosure, Vented, Series: A3RD, 29 in Length, 24 in Width, 12 in Depth, NEMA 3R/IP32, Hinged/Lift-Off Cover, 21 in W x 21 in H Panel, Lock: Quarter Turn Latch, 115 VAC, 75 cfm, 3 hp, Wall Mount, Steel, Polyester Powder Painted, White
Application Controls and Drives ARRA Compliant C Assemble to Order No Brand nVent HOFFMAN Buy American Compliant C Catalog Number WF3LP Color Signal White Color Code RAL 9003 Country of Origin MX Currency USD Depth 12 Drive HorsePower 3 hp EU RoHS Indicator NEW Finish Galvanized Gross Volume Per Pack 9.46 Gross Volume UOM FC Gross Weight Per Pack 96.0000 lb Gross Weight per Pack Metric 43.55 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height 18.5000 in Height [Metric] 46.9900 cm Interchangeable No IP Rating IP32 Item Group A3RD Length 25.2500 in Length [Metric] 88.9000 cm Manufacturer HOFFMAN ENCLOSURES Material Mild Steel Modification Services Yes Mounting Holes 29.94 x 13.00 in Mounting Holes [Metric] 760 x 330 mm NEMA Rating 3R Weather-resistant, except dust Package Quantity 1 Panel Size 21.00 x 21.00 in Panel Size [Metric] 533 x 533 mm Panel Type A24P24 Product Family WeatherFlo Returnable Y Shipping Weight 100 lb Size 29.00x24.00x12.00 in Stock Status NORMALLY STOCKED Sub Brand WeatherFlo Thickness 14 ga Thickness [Metric] 1.9 mm Type Mild Steel Wall Mounted Industrial Enclosures UNSPSC 39121324 UPC 11 78351015651 UPC 12 783510156510 Width 35.0000 in Width [Metric] 64.1350 cm Controls and Drives 16 and 14 gauge galvanized steel, Largest two sizes constructed of aluminum Integrated solar shield top and intake cover Gasket and filter Adjustable thermostat (70 to 140 deg F) Active cooling ventilation system with factory installed fan and filter (115 VAC) Terminal power connection for fan Easily accessible and washable metal filter Top front hood exhaust and door Lift off hinged door Grounding provision on door and body Gasketed door
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Controls and Drives |
| ARRA Compliant | C |
| Assemble to Order | No |
| Brand | nVent HOFFMAN |
| Buy American Compliant | C |
| Catalog Number | WF3LP |
| Color | Signal White |
| Color Code | RAL 9003 |
| Country of Origin | MX |
| Currency | USD |
| Depth | 12 |
| Drive HorsePower | 3 hp |
| EU RoHS Indicator | NEW |
| Finish | Galvanized |
| Gross Volume Per Pack | 9.46 |
| Gross Volume UOM | FC |
| Gross Weight Per Pack | 96.0000 lb |
| Gross Weight per Pack Metric | 43.55 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height | 18.5000 in |
| Height [Metric] | 46.9900 cm |
| Interchangeable | No |
| IP Rating | IP32 |
| Item Group | A3RD |
| Length | 25.2500 in |
| Length [Metric] | 88.9000 cm |
| Manufacturer | HOFFMAN ENCLOSURES |
| Material | Mild Steel |
| Modification Services | Yes |
| Mounting Holes | 29.94 x 13.00 in |
| Mounting Holes [Metric] | 760 x 330 mm |
| NEMA Rating | 3R Weather-resistant, except dust |
| Package Quantity | 1 |
| Panel Size | 21.00 x 21.00 in |
| Panel Size [Metric] | 533 x 533 mm |
| Panel Type | A24P24 |
| Product Family | WeatherFlo |
| Returnable | Y |
| Shipping Weight | 100 lb |
| Size | 29.00x24.00x12.00 in |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | WeatherFlo |
| Thickness | 14 ga |
| Thickness [Metric] | 1.9 mm |
| Type | Mild Steel Wall Mounted Industrial Enclosures |
| UNSPSC | 39121324 |
| UPC 11 | 78351015651 |
| UPC 12 | 783510156510 |
| Width | 35.0000 in |
| Width [Metric] | 64.1350 cm |
| Controls and Drives |
| 16 and 14 gauge galvanized steel, Largest two sizes constructed of aluminum |
| Integrated solar shield top and intake cover |
| Gasket and filter |
| Adjustable thermostat (70 to 140 deg F) |
| Active cooling ventilation system with factory installed fan and filter (115 VAC) |
| Terminal power connection for fan |
| Easily accessible and washable metal filter |
| Top front hood exhaust and door |
| Lift off hinged door |
| Grounding provision on door and body |
| Gasketed door |
