SKU311718
MFGR #UU504020W
$/ea

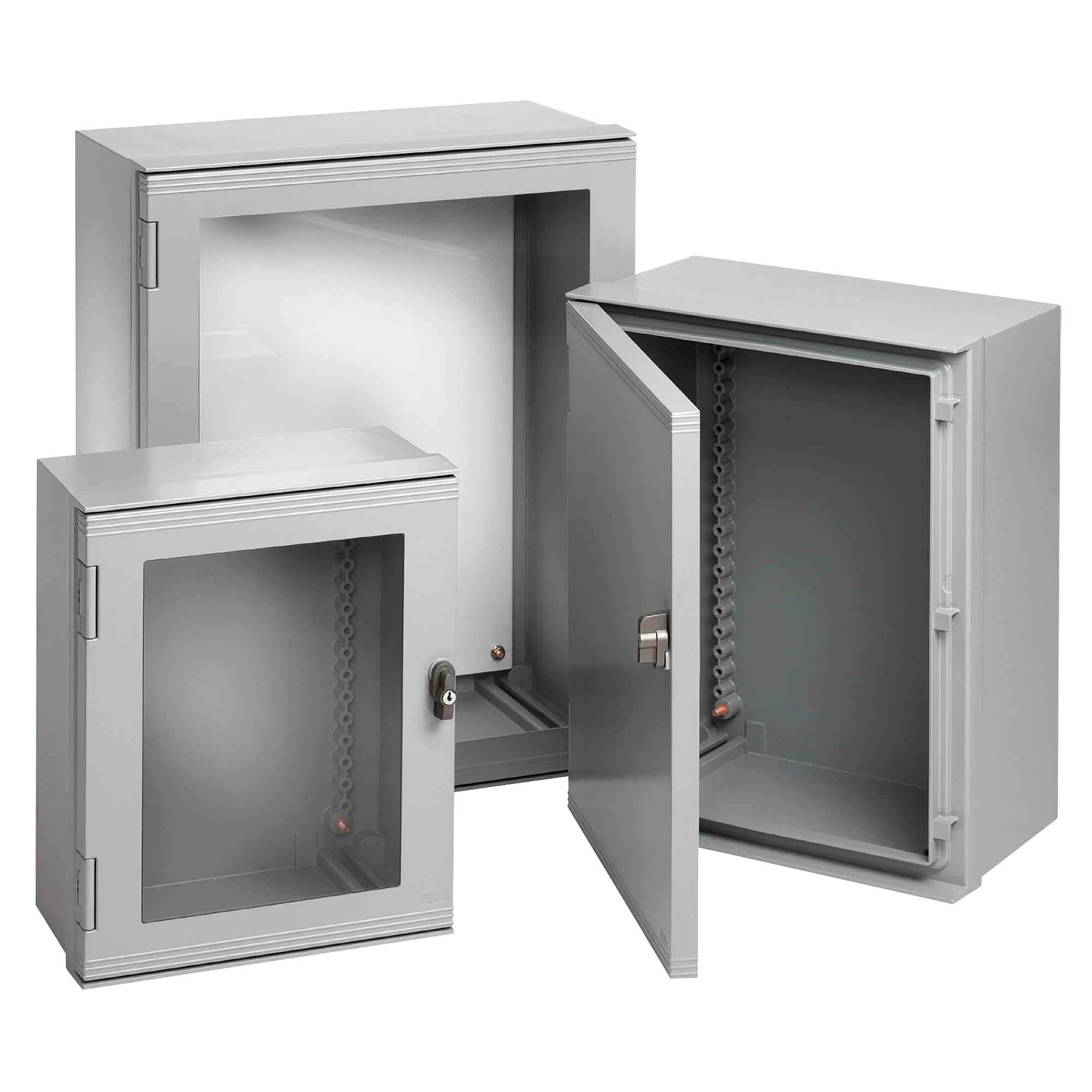

nVent HOFFMAN ULTRX™ Enclosure, Window Door, Series: UX1, 20.2 in Length, 16.26 in Width, 8.66 in Depth, NEMA 4X/IP66, Concealed Hinged Cover, 17 x 12.99 in Panel, Lock: Padlock Latch, 2637 cu-in Capacity, Wall Mount, Fiberglass, Acrylic Enamel Coated, Light Gray
nVent HOFFMAN ULTRX™ Enclosure, Window Door, Series: UX1, 20.2 in Length, 16.26 in Width, 8.66 in Depth, NEMA 4X/IP66, Concealed Hinged Cover, 17 x 12.99 in Panel, Lock: Padlock Latch, 2637 cu-in Capacity, Wall Mount, Fiberglass, Acrylic Enamel Coated, Light Gray
Application Controls and Drives; Corrosive Environments ARRA Compliant C Brand nVent HOFFMAN Buy American Compliant C Catalog Number UU504020W Color Light Gray Country of Origin US Cubic Capacity 2637 cubic in in3 Currency USD Depth 8.98 EU RoHS Indicator RCP Finish Smooth Matte Gross Volume Per Pack 2.89 Gross Volume UOM FC Gross Weight Per Pack 21.3000 lb Gross Weight per Pack Metric 9.66 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 3926909989 Height 11.3000 in Height [Metric] 28.7020 cm Item Group UX1 Length 18.2000 in Length [Metric] 61.7220 cm Manufacturer HOFFMAN ENCLOSURES Material Fiberglass NEMA Rating 4X Watertight, corrosion-resistant Returnable Y Size 20.20 x 16.26 in Stock Status NONSTOCK Sub Brand Ultrx Type Fiberglass and Thermoplastic Wall Mounted Industrial Enclosures UNSPSC 39121324 UPC 11 78351033710 UPC 12 78351033710 Width 24.3000 in Width [Metric] 46.2280 cm Controls and Drives; Corrosive Environments Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties, including high-impact resistance, Fiberglass is easily punched, drilled, filed or sawed, Seamless foam-i Fiberglass is easily punched, drilled, filed or sawed Gasket assures watertight and dusttight seal Enclosure may be rotated 180 deg for left and right hinging Molded in drip shields are standard with each enclosure Impact-resistant polycarbonate window is permanently bonded in place Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure Unique hinge design allows for standard 180 deg door opening with a maximum opening of 270 deg Door hinges are replaceable Molded in DIN bosses Molded bosses on door provide additional mounting provisions Integral mounting rails provide infinite panel adjustment front to back Material is halogen-free Material is halogen free Optional data pocket is high-impact thermoplastic Material is halogen free Providing outstanding protection against corrosion and the elements, the clean lines and molded, embossed design of ULTRX fiberglass enclosures make them the most stylish and aesthetically pleasing of their class These enclosures feature hidden hinges, a padlocking capability for security, and flexible internal mounting options Enclosure flammability evaluated per UL 508 Window door
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Controls and Drives; Corrosive Environments |
| ARRA Compliant | C |
| Brand | nVent HOFFMAN |
| Buy American Compliant | C |
| Catalog Number | UU504020W |
| Color | Light Gray |
| Country of Origin | US |
| Cubic Capacity | 2637 cubic in in3 |
| Currency | USD |
| Depth | 8.98 |
| EU RoHS Indicator | RCP |
| Finish | Smooth Matte |
| Gross Volume Per Pack | 2.89 |
| Gross Volume UOM | FC |
| Gross Weight Per Pack | 21.3000 lb |
| Gross Weight per Pack Metric | 9.66 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 3926909989 |
| Height | 11.3000 in |
| Height [Metric] | 28.7020 cm |
| Item Group | UX1 |
| Length | 18.2000 in |
| Length [Metric] | 61.7220 cm |
| Manufacturer | HOFFMAN ENCLOSURES |
| Material | Fiberglass |
| NEMA Rating | 4X Watertight, corrosion-resistant |
| Returnable | Y |
| Size | 20.20 x 16.26 in |
| Stock Status | NONSTOCK |
| Sub Brand | Ultrx |
| Type | Fiberglass and Thermoplastic Wall Mounted Industrial Enclosures |
| UNSPSC | 39121324 |
| UPC 11 | 78351033710 |
| UPC 12 | 78351033710 |
| Width | 24.3000 in |
| Width [Metric] | 46.2280 cm |
| Controls and Drives; Corrosive Environments |
| Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties, including high-impact resistance, Fiberglass is easily punched, drilled, filed or sawed, Seamless foam-i |
| Fiberglass is easily punched, drilled, filed or sawed |
| Gasket assures watertight and dusttight seal |
| Enclosure may be rotated 180 deg for left and right hinging |
| Molded in drip shields are standard with each enclosure |
| Impact-resistant polycarbonate window is permanently bonded in place |
| Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure |
| Unique hinge design allows for standard 180 deg door opening with a maximum opening of 270 deg |
| Door hinges are replaceable |
| Molded in DIN bosses |
| Molded bosses on door provide additional mounting provisions |
| Integral mounting rails provide infinite panel adjustment front to back |
| Material is halogen-free |
| Material is halogen free |
| Optional data pocket is high-impact thermoplastic |
| Material is halogen free |
| Providing outstanding protection against corrosion and the elements, the clean lines and molded, embossed design of ULTRX fiberglass enclosures make them the most stylish and aesthetically pleasing of their class |
| These enclosures feature hidden hinges, a padlocking capability for security, and flexible internal mounting options |
| Enclosure flammability evaluated per UL 508 |
| Window door |
