Custom_Product_Images_Illustration
SKU749465
MFGR #N280416G051
Your Cost: $5,054.32/ea

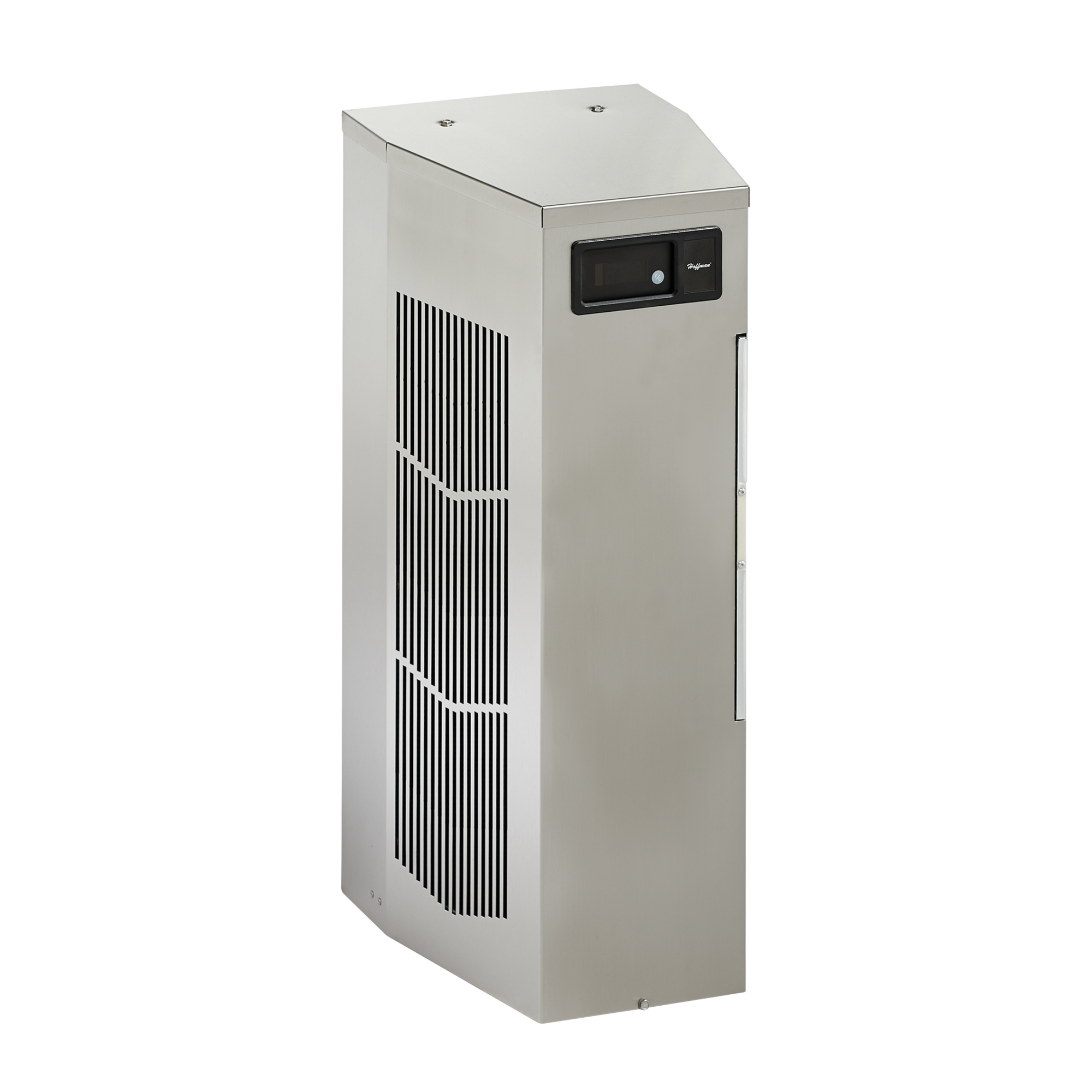

List: nVent HOFFMAN Spectracool™ Enclosure Air Conditioner, Indoor Narrow, Series: MCLG, 115 VAC, 10 A, 1172 W, 50/60 Hz, 4000 Btu/hr Capacity, NEMA 4X, -40 to 55 deg C, Ceiling Mount, 304 Stainless Steel, Light Gray, 28 in H x 11-1/2 in W x 14 in D
nVent HOFFMAN Spectracool™ Enclosure Air Conditioner, Indoor Narrow, Series: MCLG, 115 VAC, 10 A, 1172 W, 50/60 Hz, 4000 Btu/hr Capacity, NEMA 4X, -40 to 55 deg C, Ceiling Mount, 304 Stainless Steel, Light Gray, 28 in H x 11-1/2 in W x 14 in D
Application Controls and Drives; Corrosive Environments; Power Distribution ARRA Compliant C Buy American Compliant C Catalog Number N280416G051 Color Unpainted Country of Origin MX Currency USD Depth 14 in Depth [Metric] 355.6 mm EU RoHS Indicator RNC Finish Brushed #3 Gross Volume Per Pack 4.12 Gross Volume UOM FC Gross Weight Per Pack 0.0086 lb Gross Weight per Pack Metric 38.78 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8415820105 Height 30.0000 in Height [Metric] 77.4700 cm Item Group MCLG Length 18.0000 in Length [Metric] 44.7040 cm Material Stainless Steel 304 Max Current 11.2 A Max Temperature 125 °F Mechanical Durability Galvanized Sheet Metal Standard (Optional: Stainless Steel) Min Temperature -40 °C Mounting Surface Mounted NEMA Rating 4X Watertight Nominal Btu|h 4 Nominal Capacity 4000 BTU / Hr / 1200 Watt Nominal Voltage AC 115 VAC V Nominal Watts 1 Operating Temperature -40-125 Package Quantity 1 Product Family SpectraCool Returnable Y Standards UL/cUL Listed, File No. SA6453, CE, EAC Certified, RoHS Complaint Sub Brand SpectraCool Thickness 18 ga Thickness [Metric] 1.21 mm Type Air Conditioners UNSPSC 40101701 UPC 11 78351023852 UPC 12 783510238520 Voltage AC 100 - 120 VAC Weight [Metric] 38 kg Width 13.5000 in Width [Metric] 33.6550 cm Stock Status NONSTOCK Brand nVent HOFFMAN Manufacturer HOFFMAN ENCLOSURES Voltage Rating 100 - 120 VAC Controls and Drives; Corrosive Environments; Power Distribution Nominal cooling capacity 4000 BTUs/Hr. (1172 W), Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C Narrow design accommodate 12 in D cabinets Energy efficient reciprocating compressor on N28 models R407C and R134A earth friendly refrigerants Attractive industrial design with minimal use of visible fasteners Reliable mechanical thermostat is located behind the cover of the unit, air conditioner models include digital display on ambient side Galvanized sheet metal cover for rugged factory and outdoor environments Easy mount flanges for simple installation Cutout adapter options for enclosures with GENESIS™ air conditioners enable users to easily transition to the new unit Dust-resistant condenser coil allows the unit to be run filterless in most applications Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance Mounting hardware, gaskets and user manual furnished with the unit Every unit functionally tested before shipping
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Controls and Drives; Corrosive Environments; Power Distribution |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | N280416G051 |
| Color | Unpainted |
| Country of Origin | MX |
| Currency | USD |
| Depth | 14 in |
| Depth [Metric] | 355.6 mm |
| EU RoHS Indicator | RNC |
| Finish | Brushed #3 |
| Gross Volume Per Pack | 4.12 |
| Gross Volume UOM | FC |
| Gross Weight Per Pack | 0.0086 lb |
| Gross Weight per Pack Metric | 38.78 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8415820105 |
| Height | 30.0000 in |
| Height [Metric] | 77.4700 cm |
| Item Group | MCLG |
| Length | 18.0000 in |
| Length [Metric] | 44.7040 cm |
| Material | Stainless Steel 304 |
| Max Current | 11.2 A |
| Max Temperature | 125 °F |
| Mechanical Durability | Galvanized Sheet Metal Standard (Optional: Stainless Steel) |
| Min Temperature | -40 °C |
| Mounting | Surface Mounted |
| NEMA Rating | 4X Watertight |
| Nominal Btu|h | 4 |
| Nominal Capacity | 4000 BTU / Hr / 1200 Watt |
| Nominal Voltage AC | 115 VAC V |
| Nominal Watts | 1 |
| Operating Temperature | -40-125 |
| Package Quantity | 1 |
| Product Family | SpectraCool |
| Returnable | Y |
| Standards | UL/cUL Listed, File No. SA6453, CE, EAC Certified, RoHS Complaint |
| Sub Brand | SpectraCool |
| Thickness | 18 ga |
| Thickness [Metric] | 1.21 mm |
| Type | Air Conditioners |
| UNSPSC | 40101701 |
| UPC 11 | 78351023852 |
| UPC 12 | 783510238520 |
| Voltage AC | 100 - 120 VAC |
| Weight [Metric] | 38 kg |
| Width | 13.5000 in |
| Width [Metric] | 33.6550 cm |
| Stock Status | NONSTOCK |
| Brand | nVent HOFFMAN |
| Manufacturer | HOFFMAN ENCLOSURES |
| Voltage Rating | 100 - 120 VAC |
| Controls and Drives; Corrosive Environments; Power Distribution |
| Nominal cooling capacity 4000 BTUs/Hr. (1172 W), Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C |
| Narrow design accommodate 12 in D cabinets |
| Energy efficient reciprocating compressor on N28 models |
| R407C and R134A earth friendly refrigerants |
| Attractive industrial design with minimal use of visible fasteners |
| Reliable mechanical thermostat is located behind the cover of the unit, air conditioner models include digital display on ambient side |
| Galvanized sheet metal cover for rugged factory and outdoor environments |
| Easy mount flanges for simple installation |
| Cutout adapter options for enclosures with GENESIS™ air conditioners enable users to easily transition to the new unit |
| Dust-resistant condenser coil allows the unit to be run filterless in most applications |
| Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance |
| Mounting hardware, gaskets and user manual furnished with the unit |
| Every unit functionally tested before shipping |
