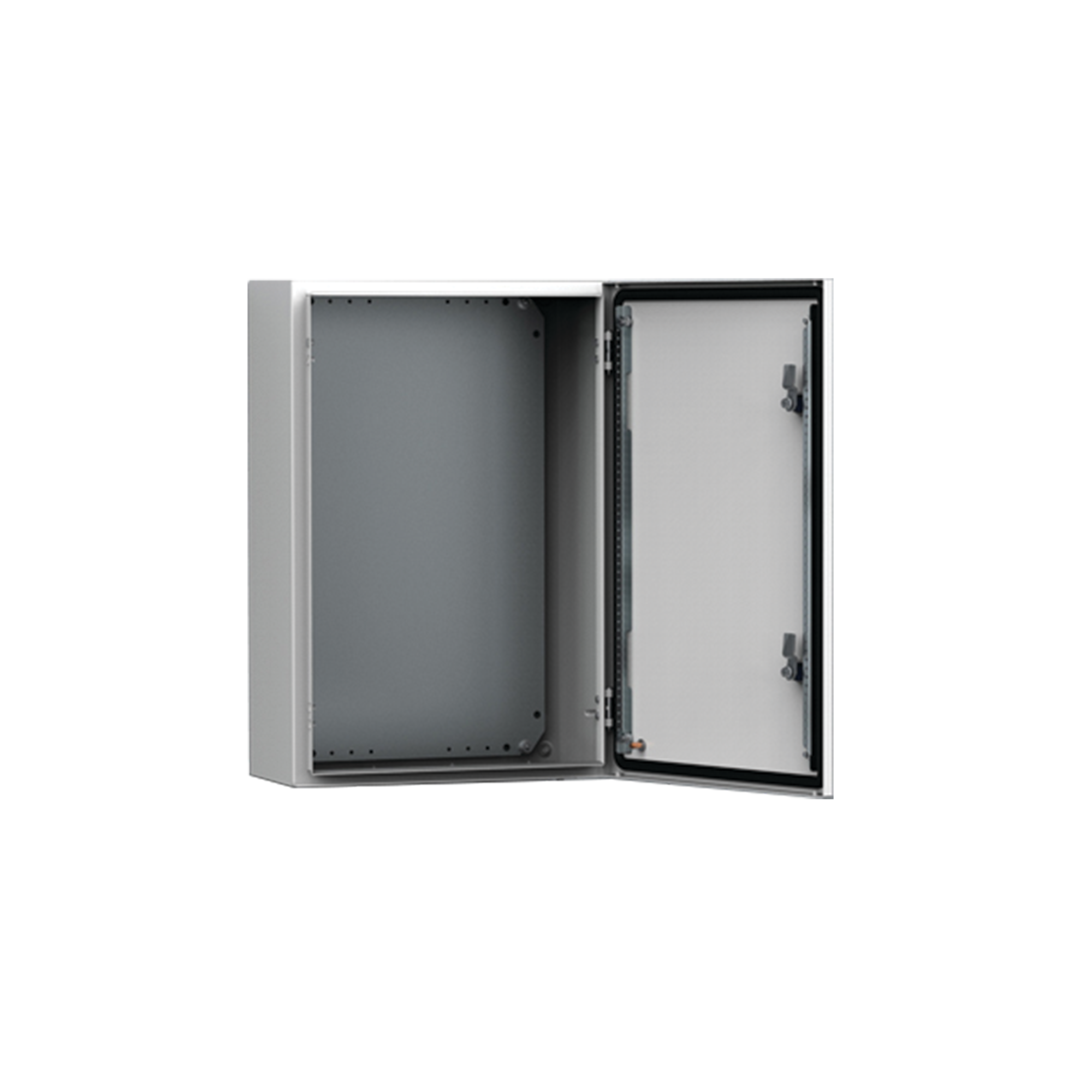

nVent HOFFMAN MAS0608030R5 1-Door Wall Mount Enclosure, 800 mm W x 300 mm D x 600 mm H, NEMA 4/12/13/IK10/IP66 NEMA Rating, Mild Steel
Wall Mount Enclosures
1319782
MFG #: MAS0608030R5
nVent HOFFMAN
693.05000
/ ea
nVent HOFFMAN Wall Mount Enclosure, 1-Door, Series: MAS, 800 mm Width, 300 mm Depth, 600 mm Height, NEMA 4/12/13/IK10/IP66 NEMA Rating, 750 mm W x 570 mm H Panel, Lock: 3 mm Customized Double Bit, Wall Mounting, Mild Steel, Powder Coated, Light Gray
- http://www.hoffmanonline.com(Seller Home Page URL)
- Install Instructions 1 URL - 11015_EDQVRX5816WAGTPJ.pdf(Install Instructions 1 URL)
- Warranty URL - terms-of-sale.pdf(Warranty URL)
- Install Instructions 1 URL - MAS MI_V5.pdf(Install Instructions 1 URL)
- Spec Sheet URL - MAS-SF(ENGLISH).pdf(Spec Sheet URL)
- Applications
- Features
| Controls and Drives; Factory Automation and Process Control |
| Protection - Complies with IP66, Type 4, 12, 13, IK10 |
| For outdoor installation, the use of a rain hood ARF and 100% polyester paint coating is recommended |
| The corrosion resistance must be taken into consideration |
| Body - Folded and seam welded |
| Four 8.5 mm Dia holes for wall fixing, pressed out in 20.4 mm Dia x 2 mm depressions, to allow air circulation around the rear part of the enclosure |
| Door - Surface mounted with 130 deg opening |
| Concealed removable hinges with captive pin |
| Hinges can be mounted to allow left or right hand opening |
| Inner M6 welded studs to mount door profiles MMDP |
| Sealing is ensured by an injected one piece polyurethane gasket |
| Lock - Customized lock with double bit for easy opening of the door |
| Double bit 3 mm insert and 90 deg movement |
| Other inserts are available as an accessory |
| Gland plate - Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier |
| Mounting plate - The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment |
| On the top and bottom there are holes to facilitate cable fixing |
| Fixed onto M8 press welded studs to the rear of the enclosure |
| All sides, from 800 mm and above, are strengthened by folded edges |
| By using the AMG accessory, the mounting plate position can be adjusted to any depth |
