SKU91052
MFGR #LWC201512
Your Cost: $217.05/ea

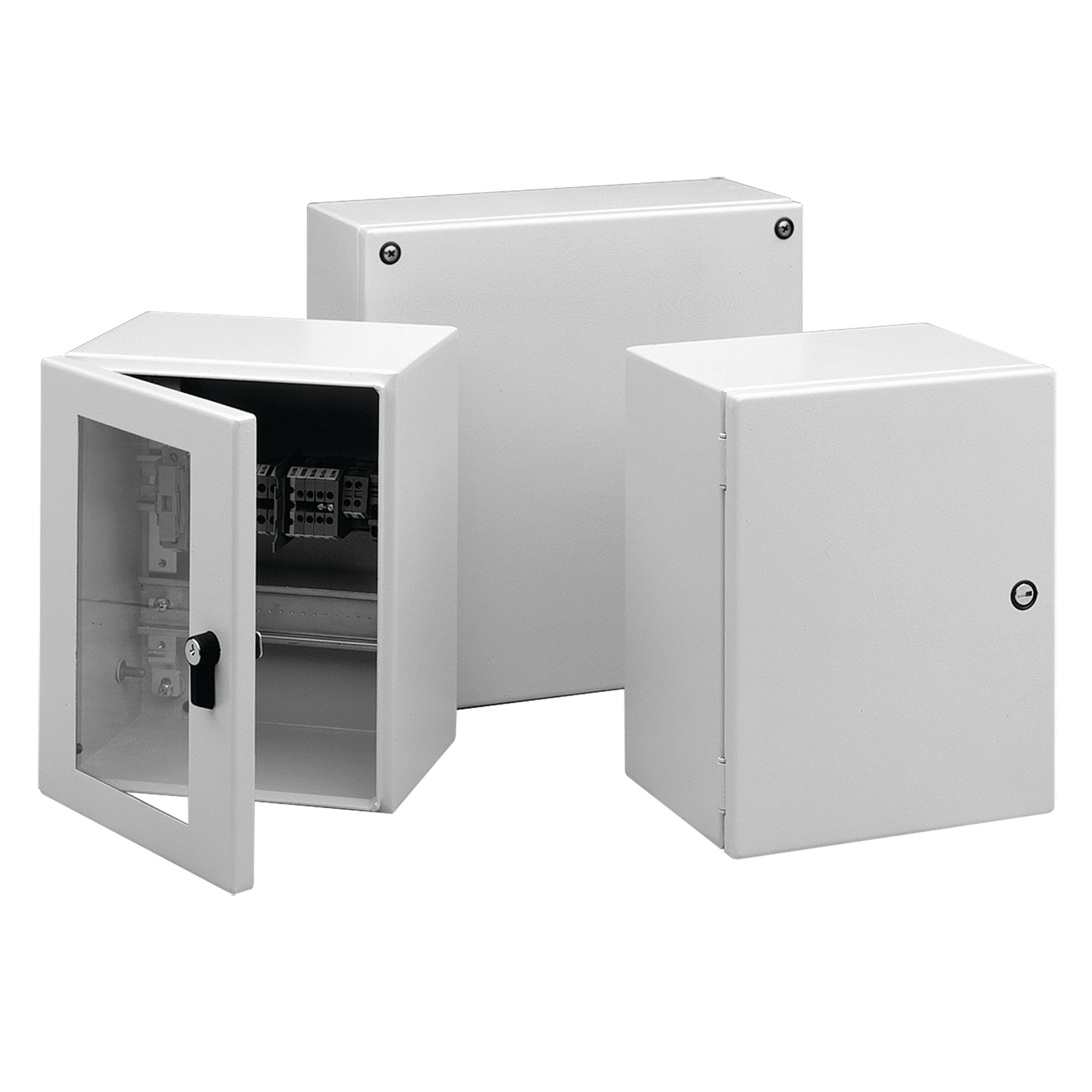

nVent HOFFMAN INLINE™ Enclosure, Series: A54, 200 mm Length, 150 mm Width, 120 mm Depth, NEMA 4, Hinged Cover, 7.13 x 5.16 in Panel, Lock: Quarter Turn Latch, Wall Mount, Steel, Polyester Powder Painted, Light Gray
nVent HOFFMAN INLINE™ Enclosure, Series: A54, 200 mm Length, 150 mm Width, 120 mm Depth, NEMA 4, Hinged Cover, 7.13 x 5.16 in Panel, Lock: Quarter Turn Latch, Wall Mount, Steel, Polyester Powder Painted, Light Gray
Application Controls and Drives ARRA Compliant C Brand nVent HOFFMAN Buy American Compliant C Catalog Number LWC201512 Color Light Gray Country of Origin MX Currency USD Depth 4.72 EU RoHS Indicator NEW Gross Volume Per Pack 0.17 Gross Volume UOM FC Gross Weight Per Pack 4.1400 lb Gross Weight per Pack Metric 1.90 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height 5.5000 in Height [Metric] 13.9700 cm Item Group A54 Length 6.6000 in Length [Metric] 21.0820 cm Manufacturer HOFFMAN ENCLOSURES Material Mild Steel NEMA Rating 4 Watertight Returnable Y Size 200x150x120mm Standards UL 508A Listed, Type 3, 4, 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 3, 4, 12, File No. E61997, NEMA/EEMAC Type 4 and 12, CSA, File No. 42186: Type 4 and 12, IEC 60529, RoHS Complaint Stock Status NONSTOCK Sub Brand InLine Type Mild Steel Wall Mounted Industrial Enclosures UNSPSC 39121303 UPC 11 78351061130 UPC 12 78351061130 Width 8.3000 in Width [Metric] 16.7640 cm Controls and Drives Metric dimensions, 1.4-mm (16 gauge) steel, Seams continuously welded and ground smooth, External formed body flange channels away liquids, Large perimeter body opening, Mounting holes in back of body for direct mounting or optional external mounting brackets, Seamless foam-in-place gasket , Grounding stud on the body, Bonding provision on the door, Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes, Installation instructions INLINE Screw-Cover Enclosures:, Captivated cover screws with sealing bushings INLINE Hinged-Door and Window-Door Enclosures:, Door opens 180 degrees, Removable hinged door, Self-grounding, slotted quarter-turn latch, Flush-mounted 4.8-mm (3/16-in.) clear polycarbonate window Seams continuously welded and ground smooth External formed body flange Large body opening, external wall mounting brackets Large perimeter body opening Aesthetic styling, with an attractive, durable light gray finish, makes INLINE™ enclosures an excellent choice when style and functionality are important INLINE™ enclosures have an outward formed flange to prevent contaminants from entering the enclosure Aesthetic styling, with an attractive, durable light gray finish, makes INLINE™ enclosures an excellent choice when style and functionality are important INLINE enclosures have an outward formed flange to prevent contaminants from entering the enclosure RAL 7035 textured light gray polyester powder paint inside and out
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Controls and Drives |
| ARRA Compliant | C |
| Brand | nVent HOFFMAN |
| Buy American Compliant | C |
| Catalog Number | LWC201512 |
| Color | Light Gray |
| Country of Origin | MX |
| Currency | USD |
| Depth | 4.72 |
| EU RoHS Indicator | NEW |
| Gross Volume Per Pack | 0.17 |
| Gross Volume UOM | FC |
| Gross Weight Per Pack | 4.1400 lb |
| Gross Weight per Pack Metric | 1.90 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height | 5.5000 in |
| Height [Metric] | 13.9700 cm |
| Item Group | A54 |
| Length | 6.6000 in |
| Length [Metric] | 21.0820 cm |
| Manufacturer | HOFFMAN ENCLOSURES |
| Material | Mild Steel |
| NEMA Rating | 4 Watertight |
| Returnable | Y |
| Size | 200x150x120mm |
| Standards | UL 508A Listed, Type 3, 4, 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 3, 4, 12, File No. E61997, NEMA/EEMAC Type 4 and 12, CSA, File No. 42186: Type 4 and 12, IEC 60529, RoHS Complaint |
| Stock Status | NONSTOCK |
| Sub Brand | InLine |
| Type | Mild Steel Wall Mounted Industrial Enclosures |
| UNSPSC | 39121303 |
| UPC 11 | 78351061130 |
| UPC 12 | 78351061130 |
| Width | 8.3000 in |
| Width [Metric] | 16.7640 cm |
| Controls and Drives |
| Metric dimensions, 1.4-mm (16 gauge) steel, Seams continuously welded and ground smooth, External formed body flange channels away liquids, Large perimeter body opening, Mounting holes in back of body for direct mounting or optional external mounting brackets, Seamless foam-in-place gasket , Grounding stud on the body, Bonding provision on the door, Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes, Installation instructions INLINE Screw-Cover Enclosures:, Captivated cover screws with sealing bushings INLINE Hinged-Door and Window-Door Enclosures:, Door opens 180 degrees, Removable hinged door, Self-grounding, slotted quarter-turn latch, Flush-mounted 4.8-mm (3/16-in.) clear polycarbonate window |
| Seams continuously welded and ground smooth |
| External formed body flange |
| Large body opening, external wall mounting brackets |
| Large perimeter body opening |
| Aesthetic styling, with an attractive, durable light gray finish, makes INLINE™ enclosures an excellent choice when style and functionality are important |
| INLINE™ enclosures have an outward formed flange to prevent contaminants from entering the enclosure |
| Aesthetic styling, with an attractive, durable light gray finish, makes INLINE™ enclosures an excellent choice when style and functionality are important |
| INLINE enclosures have an outward formed flange to prevent contaminants from entering the enclosure |
| RAL 7035 textured light gray polyester powder paint inside and out |
