SKU25551
MFGR #E1PBG
Your Cost: $107.96/ea

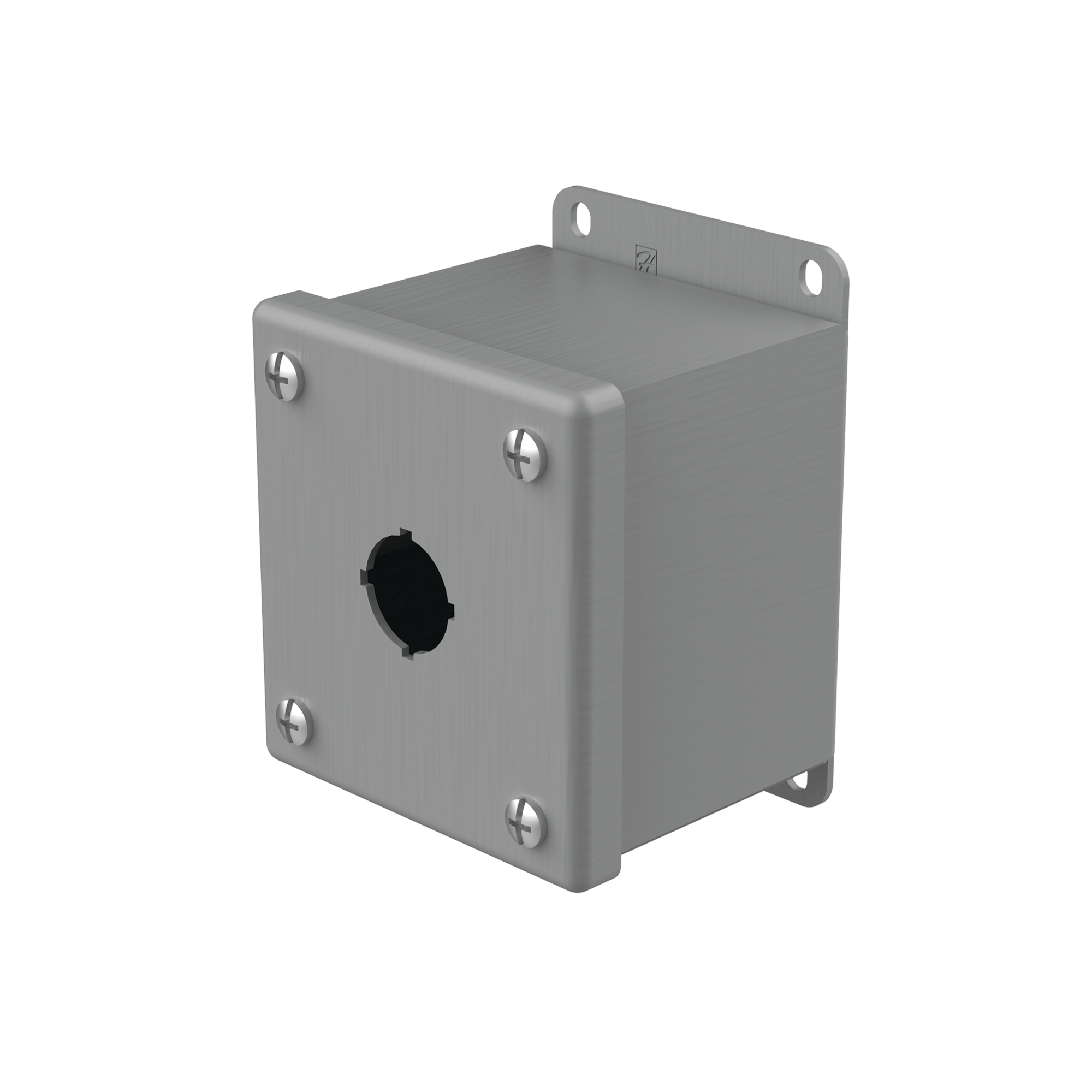

nVent HOFFMAN Pushbutton Enclosure, Series: PB1, 3-1/2 in Length, 3-1/4 in Width, 2-3/4 in Depth, NEMA 12/IP65, Hinged Cover, 1 Outlets, Wall Mount, Steel, ANSI 61 Polyester Powder Painted, Gray
nVent HOFFMAN Pushbutton Enclosure, Series: PB1, 3-1/2 in Length, 3-1/4 in Width, 2-3/4 in Depth, NEMA 12/IP65, Hinged Cover, 1 Outlets, Wall Mount, Steel, ANSI 61 Polyester Powder Painted, Gray
Application Controls and Drives ARRA Compliant C Assemble to Order No Brand nVent HOFFMAN Buy American Compliant C Catalog Number E1PBG Color Gray Color Code ANSI 61 Country of Origin MX Currency USD Depth 2.75 Enclosure Type Pushbutton EU RoHS Indicator NEW Finish Powder Coated Gross Volume Per Pack 0.02 Gross Volume UOM FC Gross Weight Per Pack 1.3450 lb Gross Weight per Pack Metric 0.64 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height 2.9000 in Height [Metric] 7.6200 cm Hole Size [Metric] 22.5 mm Interchangeable No IP Rating IP65 Item Group PB1 Length 3.5000 in Length [Metric] 10.1600 cm Manufacturer HOFFMAN ENCLOSURES Material Mild Steel Modification Services Yes Mounting [Metric] 102 x 60 mm NEMA Rating 12 Indoor, dust-resistant Number Of Holes 1 Overall Dimensions 4.50 x 3.47 in Overall Dimensions [Metric] 114 x 88 mm Package Quantity 1 Returnable Y Shipping Weight 17 lb Size 1PB x 22.5mm Standards UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E61997, RoHS Complaint Stock Status NORMALLY STOCKED Thickness 16 ga Thickness [Metric] 1.52 mm Type Mild Steel Industrial Terminal and Junction Boxes UNSPSC 39121326 UPC 11 78351057930 UPC 12 783510579302 Width 4.0000 in Width [Metric] 8.8900 cm Controls and Drives 16 or 14 gauge steel, Seams continuously welded and ground smooth, Captivated cover screws thread into sealed wells, Bonding provision on cover, Grounding stud on body, Oil-resistant gasket, Factory stAed 4-way pushbutton holes, Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, External welded-on mounting brackets for easy installation, 30.5-mm or 22.5-mm size holes Seams continuously welded and ground smooth Captivated cover screws thread into sealed wells Grounding nut in body of enclosure Bonding provision on cover Oil resistant gasket Factory stamped 4-way pushbutton holes Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal External wall mounting brackets 16 or 14 ga steel These pushbutton enclosures are designed to hold 30.5 mm or 22.5 mm pushbuttons and switches 4.5 in L x 3.47 in W overall dimension 16 or 14 ga steel ANSI 61 gray polyester powder paint inside and out
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Controls and Drives |
| ARRA Compliant | C |
| Assemble to Order | No |
| Brand | nVent HOFFMAN |
| Buy American Compliant | C |
| Catalog Number | E1PBG |
| Color | Gray |
| Color Code | ANSI 61 |
| Country of Origin | MX |
| Currency | USD |
| Depth | 2.75 |
| Enclosure Type | Pushbutton |
| EU RoHS Indicator | NEW |
| Finish | Powder Coated |
| Gross Volume Per Pack | 0.02 |
| Gross Volume UOM | FC |
| Gross Weight Per Pack | 1.3450 lb |
| Gross Weight per Pack Metric | 0.64 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height | 2.9000 in |
| Height [Metric] | 7.6200 cm |
| Hole Size [Metric] | 22.5 mm |
| Interchangeable | No |
| IP Rating | IP65 |
| Item Group | PB1 |
| Length | 3.5000 in |
| Length [Metric] | 10.1600 cm |
| Manufacturer | HOFFMAN ENCLOSURES |
| Material | Mild Steel |
| Modification Services | Yes |
| Mounting [Metric] | 102 x 60 mm |
| NEMA Rating | 12 Indoor, dust-resistant |
| Number Of Holes | 1 |
| Overall Dimensions | 4.50 x 3.47 in |
| Overall Dimensions [Metric] | 114 x 88 mm |
| Package Quantity | 1 |
| Returnable | Y |
| Shipping Weight | 17 lb |
| Size | 1PB x 22.5mm |
| Standards | UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 12, 13, File No. E61997, RoHS Complaint |
| Stock Status | NORMALLY STOCKED |
| Thickness | 16 ga |
| Thickness [Metric] | 1.52 mm |
| Type | Mild Steel Industrial Terminal and Junction Boxes |
| UNSPSC | 39121326 |
| UPC 11 | 78351057930 |
| UPC 12 | 783510579302 |
| Width | 4.0000 in |
| Width [Metric] | 8.8900 cm |
| Controls and Drives |
| 16 or 14 gauge steel, Seams continuously welded and ground smooth, Captivated cover screws thread into sealed wells, Bonding provision on cover, Grounding stud on body, Oil-resistant gasket, Factory stAed 4-way pushbutton holes, Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, External welded-on mounting brackets for easy installation, 30.5-mm or 22.5-mm size holes |
| Seams continuously welded and ground smooth |
| Captivated cover screws thread into sealed wells |
| Grounding nut in body of enclosure |
| Bonding provision on cover |
| Oil resistant gasket |
| Factory stamped 4-way pushbutton holes |
| Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal |
| External wall mounting brackets |
| 16 or 14 ga steel |
| These pushbutton enclosures are designed to hold 30.5 mm or 22.5 mm pushbuttons and switches |
| 4.5 in L x 3.47 in W overall dimension |
| 16 or 14 ga steel |
| ANSI 61 gray polyester powder paint inside and out |
