SKU61798
MFGR #CSD24168
Your Cost: $589.26/ea

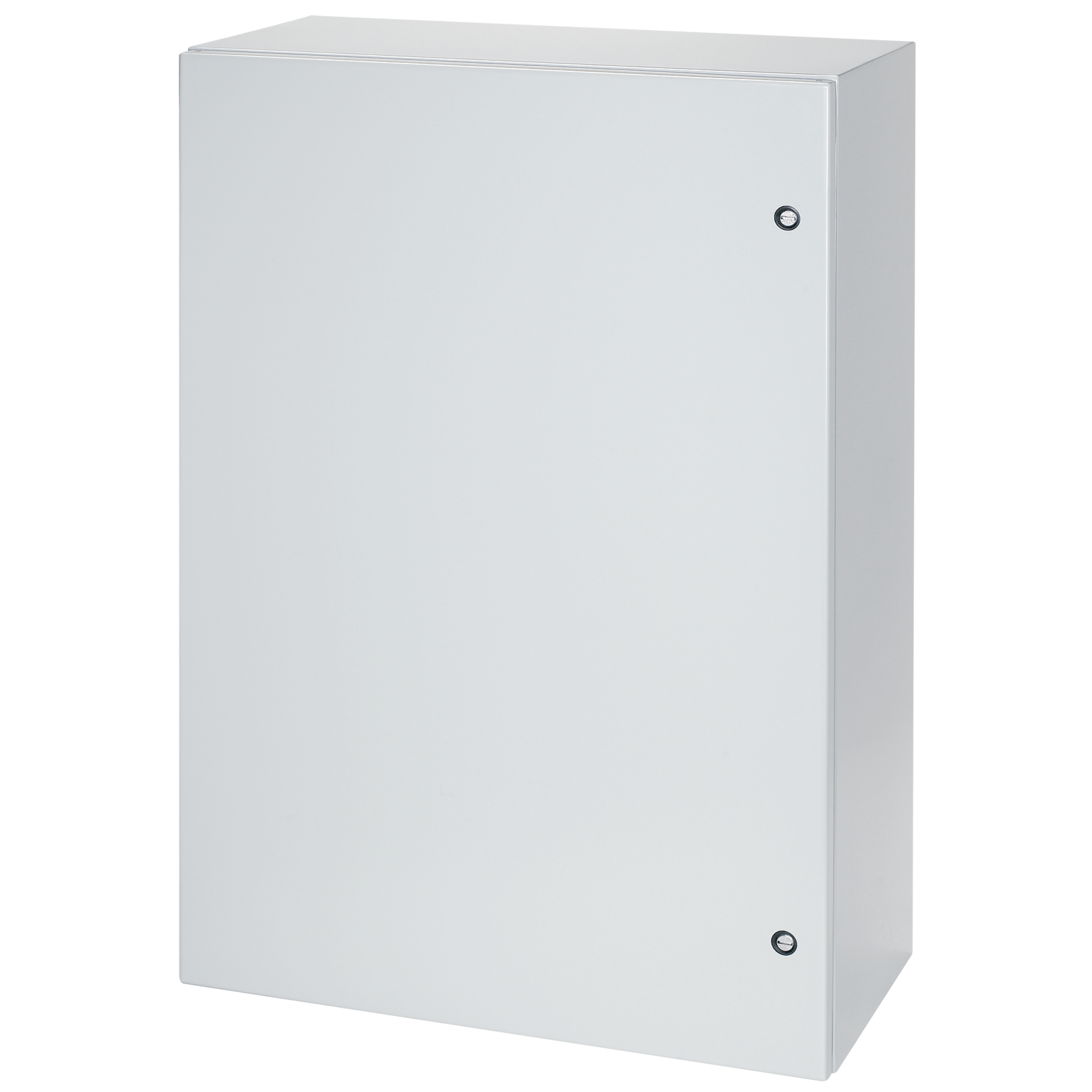

nVent HOFFMAN CONCEPT™ Enclosure, 1-Door, Series: CW1, 24 in Length, 16 in Width, 8 in Depth, NEMA 4/12, Concealed Hinged Cover, 14.2 in W x 22.2 in H Panel, Lock: Quarter Turn Latch, Wall Mount, Steel, Polyester Powder Painted, Gray
nVent HOFFMAN CONCEPT™ Enclosure, 1-Door, Series: CW1, 24 in Length, 16 in Width, 8 in Depth, NEMA 4/12, Concealed Hinged Cover, 14.2 in W x 22.2 in H Panel, Lock: Quarter Turn Latch, Wall Mount, Steel, Polyester Powder Painted, Gray
Application Controls and Drives ARRA Compliant C Assemble to Order No Body Thickness 16 ga Body Thickness [Metric] 1.52 mm Brand nVent HOFFMAN Buy American Compliant C Catalog Number CSD24168 Color Gray Color Code ANSI 61 Concept Panel CP2416 Conductive Concept Panel CP2416G Country of Origin US Currency USD Depth 8 Door Thickness 16 ga Door Thickness [Metric] 1.52 mm EU RoHS Indicator RCP Finish Powder Coat Gross Volume Per Pack 2.87 Gross Volume UOM FC Gross Weight Per Pack 29.0000 lb Gross Weight per Pack Metric 13.15 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height 10.0000 in Height [Metric] 25.4000 cm Interchangeable No IP Rating IP66 Item Group CW1 Latch Type Quarter-turn Length 17.2500 in Length [Metric] 73.0250 cm Manufacturer HOFFMAN ENCLOSURES Material Mild Steel Modification Services Yes Mounting [Metric] 572 x 368 mm NEMA Rating 12 Indoor, dust-resistant Number of Latches 1 Package Quantity 1 Panel Size 22.20 x 14.20 Panel Size [Metric] 564 x 361 mm Product Family Concept Returnable Y Shipping Weight 26 lb Size 24.00x16.00x8.00 in Standards UL 508A Listed, Type 4, 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 4, 12, File No. E61997, NEMA/EEMAC Type 4, 12, 13, CSA Certified, File No. 42186: Type 4, 12, VDE IP66, IEC 60529 Stock Status NORMALLY STOCKED Sub Brand Concept Type Mild Steel Wall Mounted Industrial Enclosures UNSPSC 39121324 UPC 11 78351077440 UPC 12 78351077440 Width 28.7500 in Width [Metric] 43.8150 cm Controls and Drives 16 or 14 gauge steel, Seams continuously welded and ground smooth, Corner-formed doors, Simple easy-to-remove and install hinge pins with captivation clip, High-torque threadless studs and fasteners on door, Minimum-width body flange provides maximum door opening, Door opens 210?degrees, External formed body flange, Panel mounting studs fit optional CONCEPT panels and other accessories, Mounting holes in back of body for direct mounting or optional external mounting brackets, Removable door with hidden hinges for clean, aesthetic appearance, Seamless foam-in-place gasket, Quarter-turn slotted latch(es), Door alignment device on doors wider than 30 in., Four hinges on 60-in.-high enclosures, Grounding stud on body; bonding provision on door (except window-door models), Provisions on door for optional high-impact thermoplastic data pocket, Hardware kit with panel Streamlined styling, flush quarter-turn latches and an attractive, durable finish Seams continuously welded and ground smooth Corner formed door Simple easy-to-remove and install hinge pins with built-in captivation clip High-torque threadless studs and fasteners on door Minimum width body flange provides maximum door opening External formed body flange Door opens 210 deg Removable door with hidden hinges for clean, aesthetic appearance Seamless foam in place gasket Four hinges on 60 in high enclosures Grounding stud on body, bonding provision on door Installation instructions provided 3 point latch system on enclosures with height equal to or greater than 42-in. with quarter turn, slotted latch Removable door with hidden hinges for clean, aesthetic appearance Hardware kit with panel mounting nuts, panel grounding Installation instructions provided 18 ga steel, polyester powder coated ANSI 61 gray
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Controls and Drives |
| ARRA Compliant | C |
| Assemble to Order | No |
| Body Thickness | 16 ga |
| Body Thickness [Metric] | 1.52 mm |
| Brand | nVent HOFFMAN |
| Buy American Compliant | C |
| Catalog Number | CSD24168 |
| Color | Gray |
| Color Code | ANSI 61 |
| Concept Panel | CP2416 |
| Conductive Concept Panel | CP2416G |
| Country of Origin | US |
| Currency | USD |
| Depth | 8 |
| Door Thickness | 16 ga |
| Door Thickness [Metric] | 1.52 mm |
| EU RoHS Indicator | RCP |
| Finish | Powder Coat |
| Gross Volume Per Pack | 2.87 |
| Gross Volume UOM | FC |
| Gross Weight Per Pack | 29.0000 lb |
| Gross Weight per Pack Metric | 13.15 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height | 10.0000 in |
| Height [Metric] | 25.4000 cm |
| Interchangeable | No |
| IP Rating | IP66 |
| Item Group | CW1 |
| Latch Type | Quarter-turn |
| Length | 17.2500 in |
| Length [Metric] | 73.0250 cm |
| Manufacturer | HOFFMAN ENCLOSURES |
| Material | Mild Steel |
| Modification Services | Yes |
| Mounting [Metric] | 572 x 368 mm |
| NEMA Rating | 12 Indoor, dust-resistant |
| Number of Latches | 1 |
| Package Quantity | 1 |
| Panel Size | 22.20 x 14.20 |
| Panel Size [Metric] | 564 x 361 mm |
| Product Family | Concept |
| Returnable | Y |
| Shipping Weight | 26 lb |
| Size | 24.00x16.00x8.00 in |
| Standards | UL 508A Listed, Type 4, 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 4, 12, File No. E61997, NEMA/EEMAC Type 4, 12, 13, CSA Certified, File No. 42186: Type 4, 12, VDE IP66, IEC 60529 |
| Stock Status | NORMALLY STOCKED |
| Sub Brand | Concept |
| Type | Mild Steel Wall Mounted Industrial Enclosures |
| UNSPSC | 39121324 |
| UPC 11 | 78351077440 |
| UPC 12 | 78351077440 |
| Width | 28.7500 in |
| Width [Metric] | 43.8150 cm |
| Controls and Drives |
| 16 or 14 gauge steel, Seams continuously welded and ground smooth, Corner-formed doors, Simple easy-to-remove and install hinge pins with captivation clip, High-torque threadless studs and fasteners on door, Minimum-width body flange provides maximum door opening, Door opens 210?degrees, External formed body flange, Panel mounting studs fit optional CONCEPT panels and other accessories, Mounting holes in back of body for direct mounting or optional external mounting brackets, Removable door with hidden hinges for clean, aesthetic appearance, Seamless foam-in-place gasket, Quarter-turn slotted latch(es), Door alignment device on doors wider than 30 in., Four hinges on 60-in.-high enclosures, Grounding stud on body; bonding provision on door (except window-door models), Provisions on door for optional high-impact thermoplastic data pocket, Hardware kit with panel |
| Streamlined styling, flush quarter-turn latches and an attractive, durable finish |
| Seams continuously welded and ground smooth |
| Corner formed door |
| Simple easy-to-remove and install hinge pins with built-in captivation clip |
| High-torque threadless studs and fasteners on door |
| Minimum width body flange provides maximum door opening |
| External formed body flange |
| Door opens 210 deg |
| Removable door with hidden hinges for clean, aesthetic appearance |
| Seamless foam in place gasket |
| Four hinges on 60 in high enclosures |
| Grounding stud on body, bonding provision on door |
| Installation instructions provided |
| 3 point latch system on enclosures with height equal to or greater than 42-in. with quarter turn, slotted latch |
| Removable door with hidden hinges for clean, aesthetic appearance |
| Hardware kit with panel mounting nuts, panel grounding |
| Installation instructions provided |
| 18 ga steel, polyester powder coated |
| ANSI 61 gray |
