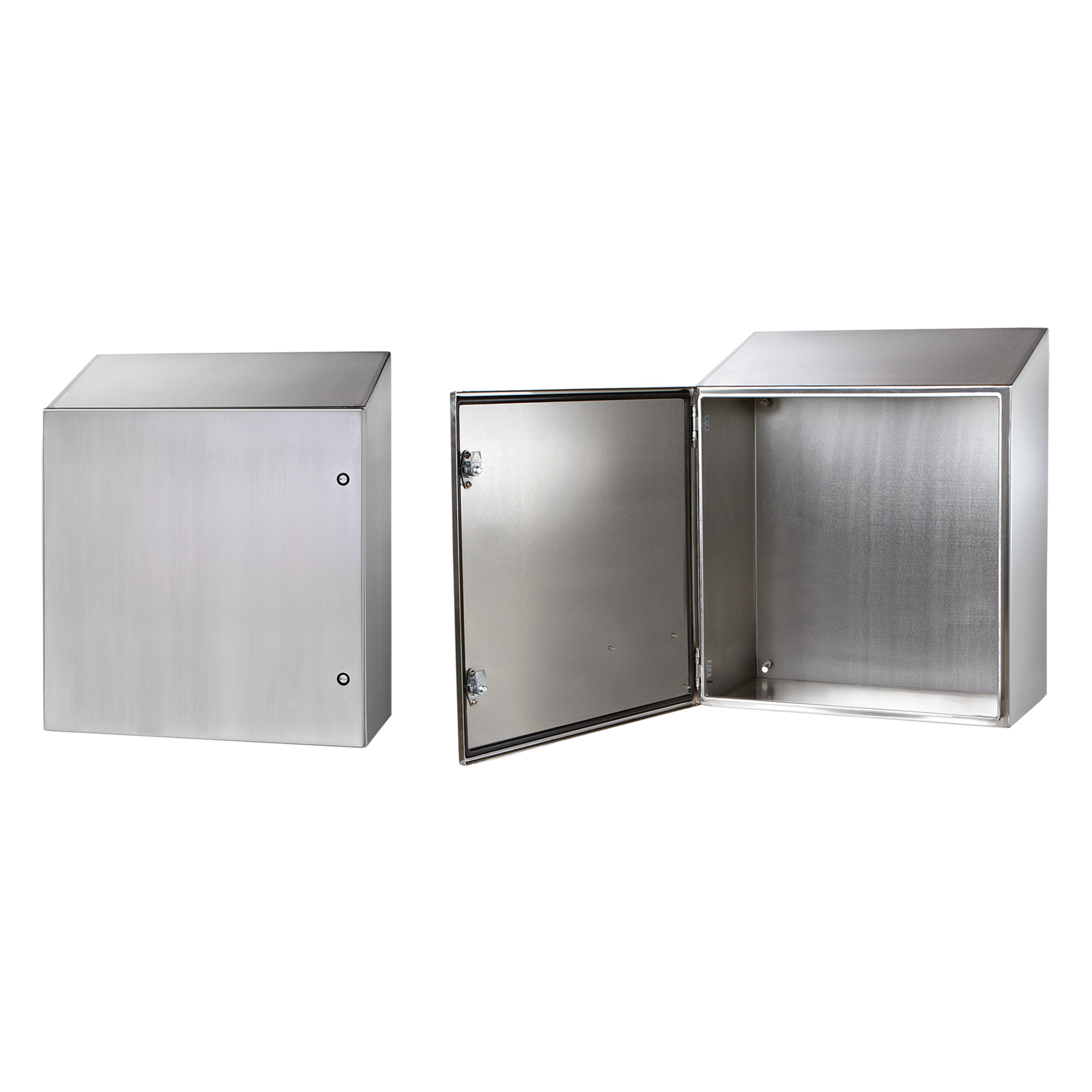

nVent HOFFMAN CONCEPT™ CSD20208SSST CWS2 1-Door Sloped Top Enclosure, 20 in L x 20 in W x 8 in D, NEMA 4X NEMA Rating, 304 Stainless Steel
Hoffman On-Demand
730551
MFG #: CSD20208SSST
nVent HOFFMAN
2136.22000
/ ea
nVent HOFFMAN CONCEPT™ Enclosure, 1-Door Sloped Top, Series: CWS2, 20 in Length, 20 in Width, 8 in Depth, NEMA 4X, Concealed Hinged Cover, 18.2 x 18.2 in Panel, Lock: Quarter Turn Latch, Wall Mount, 304 Stainless Steel, Brushed
- http://www.hoffmanonline.com(Seller Home Page URL)
- Install Instructions 1 URL - 11015_UR2KL0GPSQFCZMH9.pdf(Install Instructions 1 URL)
- Tech Drawing URL - 89096390.gif(Tech Drawing URL)
- Warranty URL - terms-of-sale(Warranty URL)
- Spec Sheet URL - Spec-01014.pdf(Spec Sheet URL)
- Install Instructions URL - stream_document.aspx?rRID=19409&pRID=361357(Install Instructions URL)
- Applications
- Features
| Controls and Drives; Corrosive Environments; Hygienic Environments |
| Manufactured from 16 and 14 gauge Type 304 stainless steel, 20 degree sloped top prevents pooling of liquids and accumulation of other debris, Minimum-width body flange provides maximum body opening, External formed 90-degree body flange, Panel mounting studs fit optional CONCEPT panels and other accessories, Mounting holes in back of body for direct mounting or for optional external mounting brackets, Type 304 stainless steel hidden hinges promote clean aesthetic appearance (two hinges on models under 36 in. in height; three hinges for models 36 in. and taller), Corner-formed doors are interchangeable and easily removed by pulling clip-style hinge pins, Provision on door for thermoplastic data pocket, Provision on door for optional door stop kit, Seams continuously welded and ground smooth, Stainless steel quarter-turn latches furnished with flush slotted inser |
| Manufactured from 16 and 14 ga 304 stainless steel |
| 20 deg sloped top prevents pooling of liquids and accumulation of other debris |
| Minimum width body flange provides maximum body opening |
| External formed 90 deg body flange channels away liquids |
| Type 304 stainless steel hidden hinges promote clean aesthetic appearance (two hinges on models under 36 in in height, three hinges for models 36 in and taller) |
| Corner formed doors are interchangeable and easily removed by pulling clip style hinge pins |
| Seams continuously welded and ground smooth |
| Stainless steel quarter-turn latches furnished with flush slotted insert |
| Seamless foam in place gasket |
| Self-grounding latch system with double seal |
| Bonding provision on door, grounding stud on body |
| Furnished hardware kit consists of panel mounting fasteners, grounding hardware and sealing washers for wall mounting holes |
| Installation instructions provided |
| Seamless foam-in-place gasket |
| Self-grounding latch system with double seal |
| Bonding provision on door, grounding stud on body |
| Furnished hardware kit consists of panel mounting fasteners, grounding hardware and sealing washers for wall mounting holes |
| Installation instructions provided |
| NO 4 smooth brushed finish |
