Custom_Product_Images_Illustration
SKU25133
MFGR #A8R86HCR
Your Cost: $148.03/ea

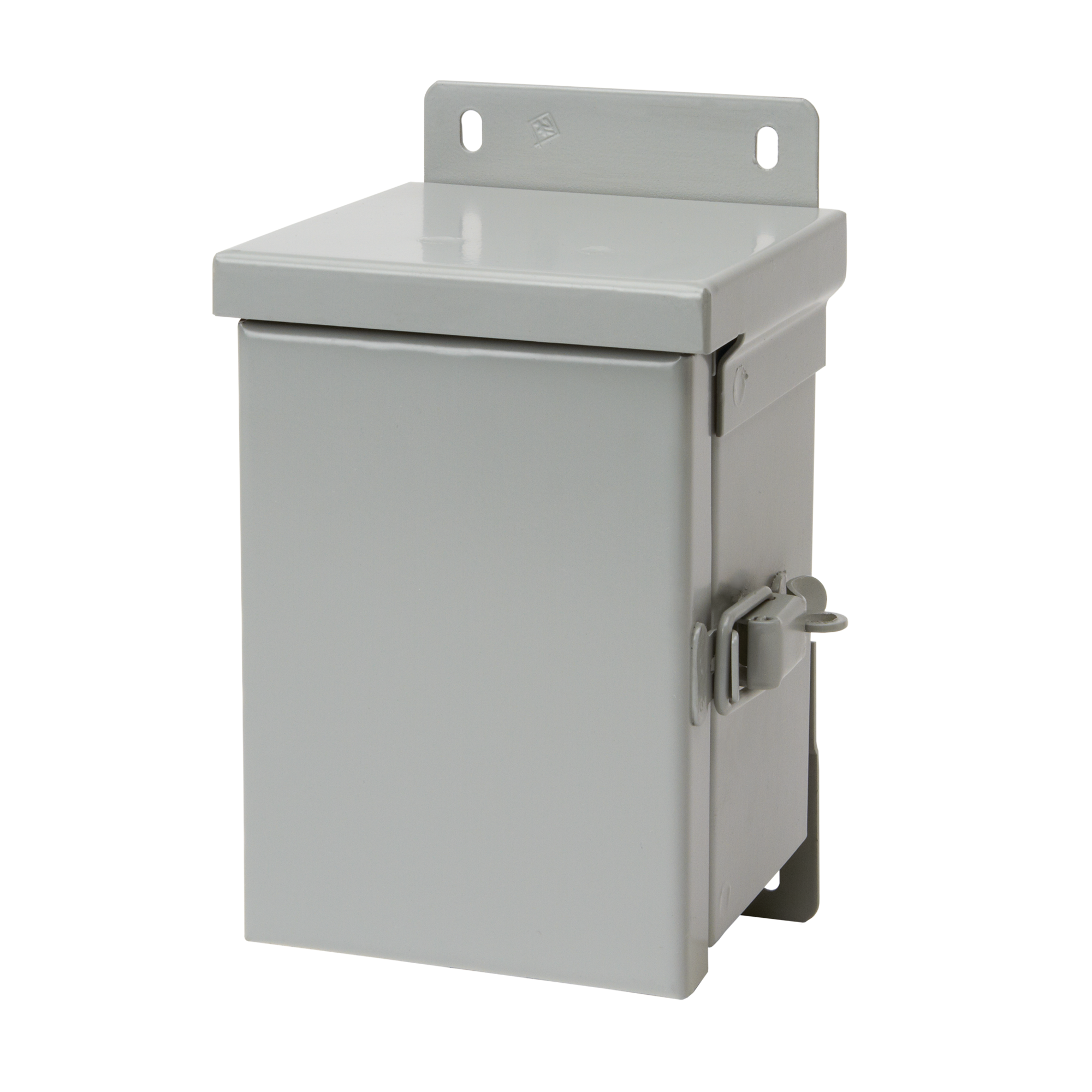

nVent HOFFMAN Enclosure, Small, Series: A3SM, 8 in Length, 8 in Width, 6 in Depth, NEMA 3R, Hinged Cover, 6-1/4 in W x 6-1/4 in H Panel, Lock: Draw Pull Catch Padlock, (2) 1/2 to 3/4 in, (2) 3/4 to 1 in Knockout Bottom Cable Entry, Wall Mount, Steel, Galvanized/Powder Coated, Gray
nVent HOFFMAN Enclosure, Small, Series: A3SM, 8 in Length, 8 in Width, 6 in Depth, NEMA 3R, Hinged Cover, 6-1/4 in W x 6-1/4 in H Panel, Lock: Draw Pull Catch Padlock, (2) 1/2 to 3/4 in, (2) 3/4 to 1 in Knockout Bottom Cable Entry, Wall Mount, Steel, Galvanized/Powder Coated, Gray
Application Controls and Drives; Power Distribution ARRA Compliant C Assemble to Order No Brand nVent HOFFMAN Buy American Compliant C Catalog Number A8R86HCR Color Gray Color Code ANSI 61 Country of Origin MX Currency USD Depth 6 EU RoHS Indicator NEW Finish Powder Coat Gross Volume Per Pack 0.28 Gross Volume UOM FC Gross Weight Per Pack 7.5200 lb Gross Weight per Pack Metric 3.63 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height 6.5000 in Height [Metric] 16.5100 cm Interchangeable No IP Rating IP32 Item Group A3SM Length 8.5000 in Length [Metric] 22.8600 cm Manufacturer HOFFMAN ENCLOSURES Material Mild Steel Modification Services Yes Mounting [Metric] 229 mm NEMA Rating 3R Weather-resistant, except dust Overall Dimensions 10.00 x 8.81 in Overall Dimensions [Metric] 254 x 224 mm Package Quantity 1 Panel Size 6.25 x 6.25 in Panel Size [Metric] 159 x 159 mm Panel Type A8N8P Perforated Panel A8N8PP Returnable Y Shipping Weight 32 lb Size 8.00x8.00x6.00 in Stock Status NORMALLY STOCKED Thickness 16 ga Thickness [Metric] 1.52 mm Type Wall-Mounted / Pad-Mounted Enclosures UNSPSC 39121324 UPC 11 78351038730 UPC 12 78351038730 Width 10.0000 in Width [Metric] 20.9550 cm Controls and Drives; Power Distribution 16 gauge galvanized steel Drip shield top and seam-free sides, front and back Provisions for padlocking on zinc plated draw pull catch Plated steel hinge has stainless steel pin Knockouts on bottom of enclosure No gasketing 16 gauge galvanized steel
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Controls and Drives; Power Distribution |
| ARRA Compliant | C |
| Assemble to Order | No |
| Brand | nVent HOFFMAN |
| Buy American Compliant | C |
| Catalog Number | A8R86HCR |
| Color | Gray |
| Color Code | ANSI 61 |
| Country of Origin | MX |
| Currency | USD |
| Depth | 6 |
| EU RoHS Indicator | NEW |
| Finish | Powder Coat |
| Gross Volume Per Pack | 0.28 |
| Gross Volume UOM | FC |
| Gross Weight Per Pack | 7.5200 lb |
| Gross Weight per Pack Metric | 3.63 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height | 6.5000 in |
| Height [Metric] | 16.5100 cm |
| Interchangeable | No |
| IP Rating | IP32 |
| Item Group | A3SM |
| Length | 8.5000 in |
| Length [Metric] | 22.8600 cm |
| Manufacturer | HOFFMAN ENCLOSURES |
| Material | Mild Steel |
| Modification Services | Yes |
| Mounting [Metric] | 229 mm |
| NEMA Rating | 3R Weather-resistant, except dust |
| Overall Dimensions | 10.00 x 8.81 in |
| Overall Dimensions [Metric] | 254 x 224 mm |
| Package Quantity | 1 |
| Panel Size | 6.25 x 6.25 in |
| Panel Size [Metric] | 159 x 159 mm |
| Panel Type | A8N8P |
| Perforated Panel | A8N8PP |
| Returnable | Y |
| Shipping Weight | 32 lb |
| Size | 8.00x8.00x6.00 in |
| Stock Status | NORMALLY STOCKED |
| Thickness | 16 ga |
| Thickness [Metric] | 1.52 mm |
| Type | Wall-Mounted / Pad-Mounted Enclosures |
| UNSPSC | 39121324 |
| UPC 11 | 78351038730 |
| UPC 12 | 78351038730 |
| Width | 10.0000 in |
| Width [Metric] | 20.9550 cm |
| Controls and Drives; Power Distribution |
| 16 gauge galvanized steel |
| Drip shield top and seam-free sides, front and back |
| Provisions for padlocking on zinc plated draw pull catch |
| Plated steel hinge has stainless steel pin |
| Knockouts on bottom of enclosure |
| No gasketing |
| 16 gauge galvanized steel |
