SKU695440
MFGR #A74H7218LP3PT
Your Cost: $6,564.04/ea

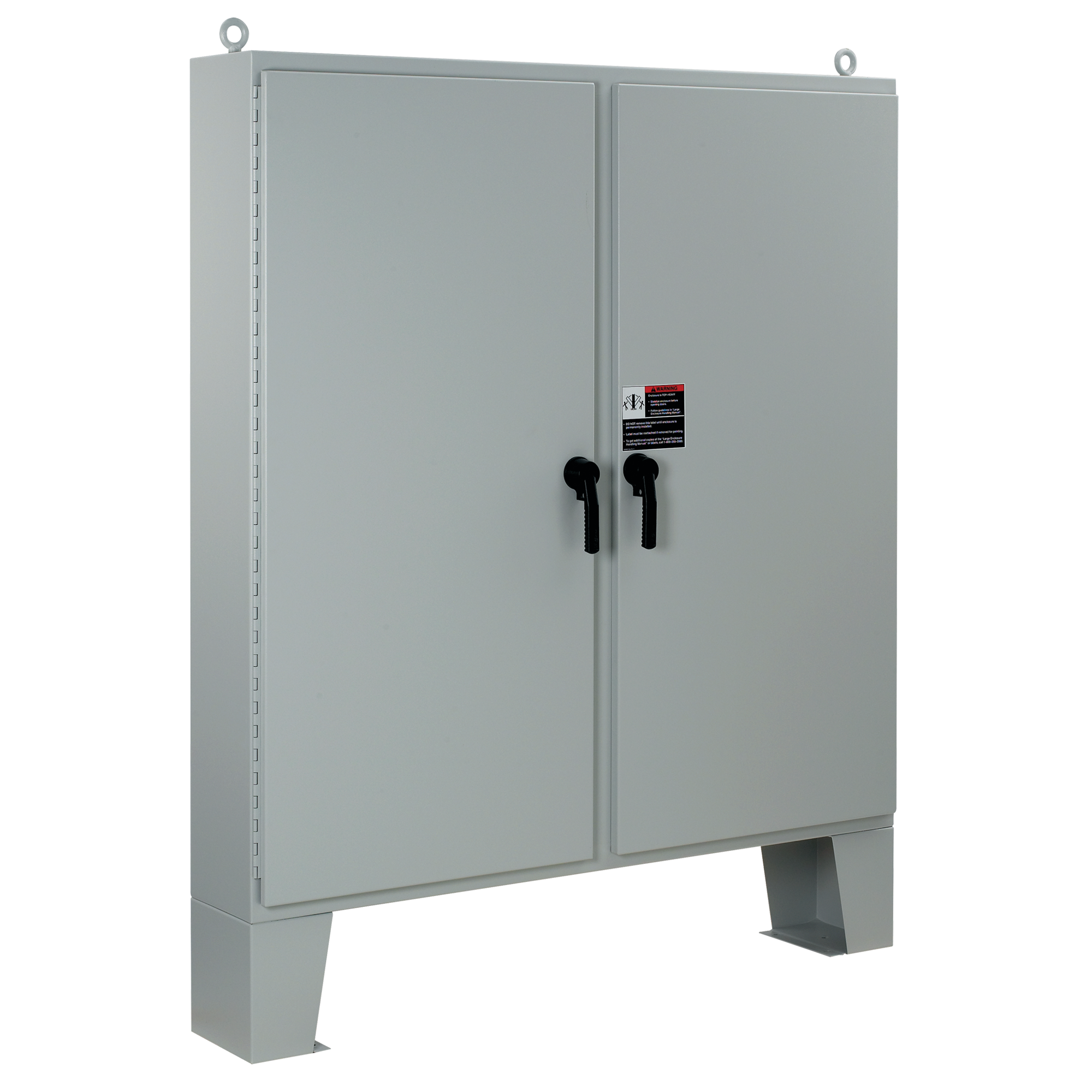

nVent HOFFMAN Enclosure, 2-Door Large, Series: A4L3, 74.06 in Length, 72.06 in Width, 18.06 in Depth, NEMA 3/4/IP66, Continuous Hinged Cover, 68 in W x 68 in H Panel, Lock: 3-Point Latch/Padlock Handle, Floor Mount, Steel, Polyester Powder Painted, Gray
nVent HOFFMAN Enclosure, 2-Door Large, Series: A4L3, 74.06 in Length, 72.06 in Width, 18.06 in Depth, NEMA 3/4/IP66, Continuous Hinged Cover, 68 in W x 68 in H Panel, Lock: 3-Point Latch/Padlock Handle, Floor Mount, Steel, Polyester Powder Painted, Gray
Application Controls and Drives; Power Distribution ARRA Compliant C Assemble to Order No Body Stiffener 24 in Body Stiffener [Metric] 610 mm Brand nVent HOFFMAN Buy American Compliant C Catalog Number A74H7218LP3PT Color Gray Color Code ANSI 61 Conductive Panel A72P72G Country of Origin MX Currency USD Depth 18.06 EU RoHS Indicator NEW Finish Powder Coat Gross Volume Per Pack 134.72 Gross Volume UOM FC Gross Weight Per Pack 719.0000 lb Gross Weight per Pack Metric 326.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height 97.0000 in Height [Metric] 246.3800 cm Interchangeable No IP Rating IP66 Item Group A4L3 Length 80.0000 in Length [Metric] 203.2000 cm Manufacturer HOFFMAN ENCLOSURES Material Mild Steel Modification Services Yes NEMA Rating 4 Watertight Package Quantity 1 Panel Size 68.00 x 68.00 in Panel Size [Metric] 1727 x 1727 mm Panel Type A72P72 Returnable Y Shipping Weight 719 lb Size 74.06x72.06x18.06 in Stock Status NONSTOCK Thickness 12 ga Thickness [Metric] 2.66 mm Type Mild Steel Freestanding Industrial Enclosures UNSPSC 39121324 UPC 11 78351023831 UPC 12 783510238315 Width 30.0000 in Width [Metric] 76.2000 cm Controls and Drives; Power Distribution 12 gauge steel, 3-point latch system with POWERGLIDE™ padlocking handles, Seams continuously welded and ground smooth; no holes or knockouts, Body stiffeners, Panel supports, Heavy gauge continuous hinge with stainless steel hinge pin, Data pocket is high-impact thermoplastic, 12-in. floor stands are welded to enclosure, Heavy-duty lifting eyes, Oil-resistant door gasket, Collar stud for mounting optional panels, Grounding stud on body, Bonding provision on door, Provision for mounting flourescent light Three-point latch for security and ease of use Return flange around the door opening excludes liquids and contaminants Removable center post permits easy panel installation 12 ga steel Three-point latch system with POWERGLIDE™ padlocking handles Seams continuously welded and ground smooth, no holes or knockouts Body stiffeners Heavy gauge continuous hinge with stainless steel hinge pin Data pocket is high impact thermoplastic 12 in floor stands are welded to enclosure Heavy duty lifting eyes anchor into reinforced top on larger models Oil-resistant door gasket Grounding stud on body Bonding provision on door Provision for mounting fluorescent light 12 ga steel
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Controls and Drives; Power Distribution |
| ARRA Compliant | C |
| Assemble to Order | No |
| Body Stiffener | 24 in |
| Body Stiffener [Metric] | 610 mm |
| Brand | nVent HOFFMAN |
| Buy American Compliant | C |
| Catalog Number | A74H7218LP3PT |
| Color | Gray |
| Color Code | ANSI 61 |
| Conductive Panel | A72P72G |
| Country of Origin | MX |
| Currency | USD |
| Depth | 18.06 |
| EU RoHS Indicator | NEW |
| Finish | Powder Coat |
| Gross Volume Per Pack | 134.72 |
| Gross Volume UOM | FC |
| Gross Weight Per Pack | 719.0000 lb |
| Gross Weight per Pack Metric | 326.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height | 97.0000 in |
| Height [Metric] | 246.3800 cm |
| Interchangeable | No |
| IP Rating | IP66 |
| Item Group | A4L3 |
| Length | 80.0000 in |
| Length [Metric] | 203.2000 cm |
| Manufacturer | HOFFMAN ENCLOSURES |
| Material | Mild Steel |
| Modification Services | Yes |
| NEMA Rating | 4 Watertight |
| Package Quantity | 1 |
| Panel Size | 68.00 x 68.00 in |
| Panel Size [Metric] | 1727 x 1727 mm |
| Panel Type | A72P72 |
| Returnable | Y |
| Shipping Weight | 719 lb |
| Size | 74.06x72.06x18.06 in |
| Stock Status | NONSTOCK |
| Thickness | 12 ga |
| Thickness [Metric] | 2.66 mm |
| Type | Mild Steel Freestanding Industrial Enclosures |
| UNSPSC | 39121324 |
| UPC 11 | 78351023831 |
| UPC 12 | 783510238315 |
| Width | 30.0000 in |
| Width [Metric] | 76.2000 cm |
| Controls and Drives; Power Distribution |
| 12 gauge steel, 3-point latch system with POWERGLIDE™ padlocking handles, Seams continuously welded and ground smooth; no holes or knockouts, Body stiffeners, Panel supports, Heavy gauge continuous hinge with stainless steel hinge pin, Data pocket is high-impact thermoplastic, 12-in. floor stands are welded to enclosure, Heavy-duty lifting eyes, Oil-resistant door gasket, Collar stud for mounting optional panels, Grounding stud on body, Bonding provision on door, Provision for mounting flourescent light |
| Three-point latch for security and ease of use |
| Return flange around the door opening excludes liquids and contaminants |
| Removable center post permits easy panel installation |
| 12 ga steel |
| Three-point latch system with POWERGLIDE™ padlocking handles |
| Seams continuously welded and ground smooth, no holes or knockouts |
| Body stiffeners |
| Heavy gauge continuous hinge with stainless steel hinge pin |
| Data pocket is high impact thermoplastic |
| 12 in floor stands are welded to enclosure |
| Heavy duty lifting eyes anchor into reinforced top on larger models |
| Oil-resistant door gasket |
| Grounding stud on body |
| Bonding provision on door |
| Provision for mounting fluorescent light |
| 12 ga steel |
