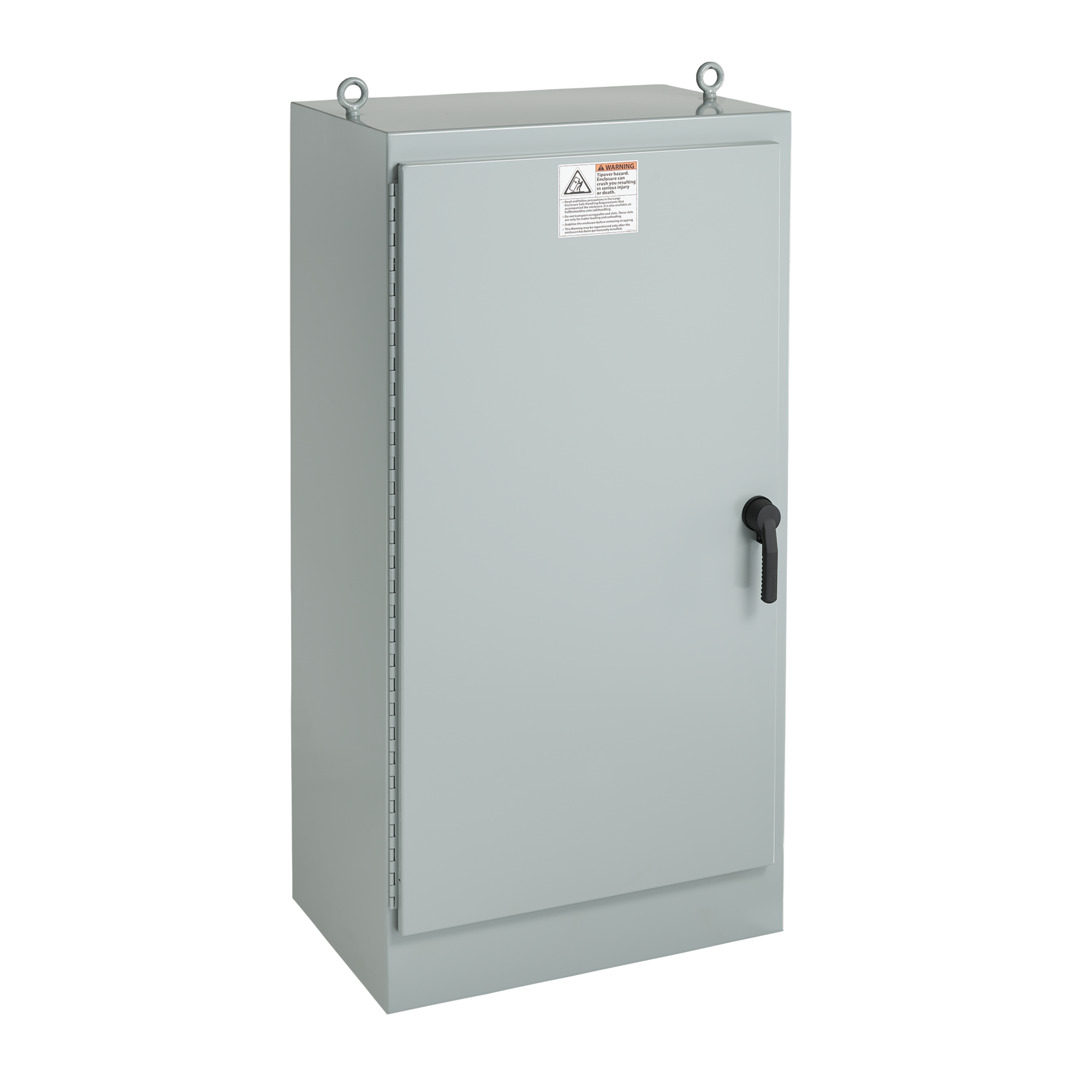

nVent HOFFMAN A72H3124FS3PT A4L3 1-Door Large Enclosure, 72.06 in L x 31.06 in W x 24.06 in D, NEMA 4/IP66 NEMA Rating, Steel
Hoffman Free Standing and Floor Mount Enclosures
309974
MFG #: A72H3124FS3PT
nVent HOFFMAN
4326.89000
/ ea
nVent HOFFMAN Enclosure, 1-Door Large, Series: A4L3, 72.06 in Length, 31.06 in Width, 24.06 in Depth, NEMA 4/IP66, Continuous Hinged Cover, Lock: 3-Point Latch, Floor Mount, Steel, Polyester Powder Painted, Gray
- http://www.hoffmanonline.com(Seller Home Page URL)
- Install Instructions 1 URL - 11015_SQ85LFCZ4PUAY9MG.pdf(Install Instructions 1 URL)
- Install Instructions URL - stream_document.aspx?rRID=19301&pRID=45487(Install Instructions URL)
- Spec Sheet URL - Spec-00156.pdf(Spec Sheet URL)
- Tech Drawing URL - 87794173.gif(Tech Drawing URL)
- Warranty URL - terms-of-sale(Warranty URL)
- Applications
- Features
| Controls and Drives; Power Distribution |
| 12 gauge steel, 3-point latch system with POWERGLIDE handle, Seams continuously welded and ground smooth; no holes or knockouts, Mounting channels welded horizontally to interior body sides at top, bottom and center, Heavy-gauge continuous hinge with stainless steel hinge pin, Data pocket is high-impact thermoplastic, Lifting eyes, Oil-resistant door gasket, Bonding provision on door, Provision for mounting fluorescent light |
| Three-point latch for security and ease of use |
| Mounting channels accommodate panel or rack mount equipment |
| Panels and rack mounting angles can be mounted anywhere along channels |
| Rolled flange around door opening excludes liquids and contaminants |
| Lifting eyes for easy handling |
| Seams continuously welded and ground smooth, no holes or knockouts |
| Mounting channels welded horizontally to interior body sides at top, bottom and center |
| Heavy gauge continuous hinge with stainless steel hinge pin |
| Data pocket is high impact thermoplastic |
| Lifting eyes |
| Oil-resistant door gasket |
| Bonding provision on door |
| Provision for mounting fluorescent light |
| 12 ga steel |
| ANSI 61 gray polyester powder paint inside and out over pretreated surfaces |
| 35 number of rack units |
