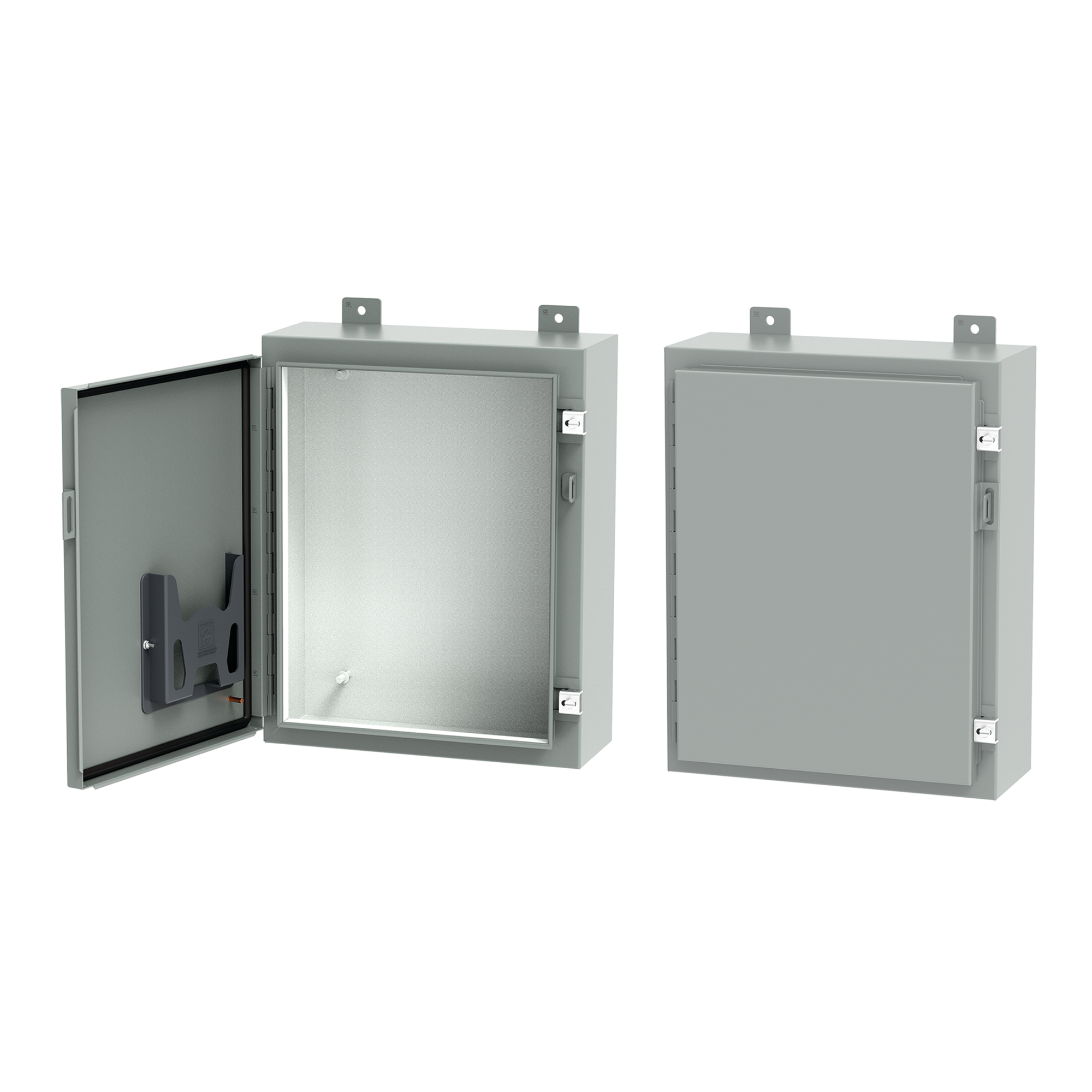

nVent HOFFMAN A483612LP A12 Medium Enclosure, 48 in L x 36 in W x 12 in D, NEMA 12/IP65 NEMA Rating, Steel
Custom_Product_Images_Illustration
nVent HOFFMAN A483612LP A12 Medium Enclosure, 48 in L x 36 in W x 12 in D, NEMA 12/IP65 NEMA Rating, Steel
SKU24925
MFGR #A483612LP
$/ea
nVent HOFFMAN Enclosure, Medium, Series: A12, 48 in Length, 36 in Width, 12 in Depth, NEMA 12/IP65, Clamp/Continuous Hinged Cover, 33 in W x 45 in H Panel, Lock: Hasp and Staple/Padlock, Wall Mount, Steel, Painted, Gray
nVent HOFFMAN Enclosure, Medium, Series: A12, 48 in Length, 36 in Width, 12 in Depth, NEMA 12/IP65, Clamp/Continuous Hinged Cover, 33 in W x 45 in H Panel, Lock: Hasp and Staple/Padlock, Wall Mount, Steel, Painted, Gray
Application Controls and Drives ARRA Compliant C Assemble to Order No Brand nVent HOFFMAN Buy American Compliant C Catalog Number A483612LP Clamp Quantity 3 Conductive Panel A48P36G Country of Origin MX Currency USD Data Pocket Size Large Depth 12 EU RoHS Indicator NEW Exterior Color Gray Exterior Color Code ANSI 61 Finish Powder Coat Gross Volume Per Pack 15.89 Gross Volume UOM FC Gross Weight Per Pack 127.0000 lb Gross Weight per Pack Metric 57.61 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height 14.0000 in Height [Metric] 35.5600 cm Interchangeable No Interior Color White IP Rating IP65 Item Group A12 Length 37.0000 in Length [Metric] 134.6200 cm Manufacturer HOFFMAN ENCLOSURES Material Mild Steel Modification Services Yes NEMA Rating 12 Indoor, dust-resistant Package Quantity 1 Panel Size 45.00 x 33.00 in Panel Size [Metric] 1143 x 838 mm Panel Type A48P36 Returnable Y Shipping Weight 134 lb Size 48.00x36.00x12.00 in Stock Status NORMALLY STOCKED Thickness 16 ga Thickness [Metric] 1.52 mm Type Mild Steel Wall Mounted Industrial Enclosures UNSPSC 39121324 UPC 11 78351028550 UPC 12 783510285500 Width 53.0000 in Width [Metric] 93.9800 cm Controls and Drives 16 or 14 gauge steel, Seams continuously welded and ground smooth, External welded-on mounting brackets for easy installation, Formed external return flanges around all sides of enclosure opening, Screw-down door clAs, Removable heavy-gauge continuous hinge pin, Hasp and staple for padlocking, Data pocket is high-impact thermoplastic, Collar studs for mounting optional panels, Bonding provision on door, Removable door with continuous hinge, Oil-resistant gasket Enclosure bodies are 14 or 16 ga steel, doors are 14 ga steel Seams continuously welded and ground smooth External wall mounting brackets for easy installation Formed external return flanges around all sides of enclosure opening Screw-down door clamps Removable heavy gauge continuous hinge pin Hasp and staple is provided for padlocking Data pocket is high impact thermoplastic Bonding provision on door Removable door with continuous hinge Oil-resistant gasket Oil-resistant gasket ANSI 61 gray
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Controls and Drives |
| ARRA Compliant | C |
| Assemble to Order | No |
| Brand | nVent HOFFMAN |
| Buy American Compliant | C |
| Catalog Number | A483612LP |
| Clamp Quantity | 3 |
| Conductive Panel | A48P36G |
| Country of Origin | MX |
| Currency | USD |
| Data Pocket Size | Large |
| Depth | 12 |
| EU RoHS Indicator | NEW |
| Exterior Color | Gray |
| Exterior Color Code | ANSI 61 |
| Finish | Powder Coat |
| Gross Volume Per Pack | 15.89 |
| Gross Volume UOM | FC |
| Gross Weight Per Pack | 127.0000 lb |
| Gross Weight per Pack Metric | 57.61 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height | 14.0000 in |
| Height [Metric] | 35.5600 cm |
| Interchangeable | No |
| Interior Color | White |
| IP Rating | IP65 |
| Item Group | A12 |
| Length | 37.0000 in |
| Length [Metric] | 134.6200 cm |
| Manufacturer | HOFFMAN ENCLOSURES |
| Material | Mild Steel |
| Modification Services | Yes |
| NEMA Rating | 12 Indoor, dust-resistant |
| Package Quantity | 1 |
| Panel Size | 45.00 x 33.00 in |
| Panel Size [Metric] | 1143 x 838 mm |
| Panel Type | A48P36 |
| Returnable | Y |
| Shipping Weight | 134 lb |
| Size | 48.00x36.00x12.00 in |
| Stock Status | NORMALLY STOCKED |
| Thickness | 16 ga |
| Thickness [Metric] | 1.52 mm |
| Type | Mild Steel Wall Mounted Industrial Enclosures |
| UNSPSC | 39121324 |
| UPC 11 | 78351028550 |
| UPC 12 | 783510285500 |
| Width | 53.0000 in |
| Width [Metric] | 93.9800 cm |
| Controls and Drives |
| 16 or 14 gauge steel, Seams continuously welded and ground smooth, External welded-on mounting brackets for easy installation, Formed external return flanges around all sides of enclosure opening, Screw-down door clAs, Removable heavy-gauge continuous hinge pin, Hasp and staple for padlocking, Data pocket is high-impact thermoplastic, Collar studs for mounting optional panels, Bonding provision on door, Removable door with continuous hinge, Oil-resistant gasket |
| Enclosure bodies are 14 or 16 ga steel, doors are 14 ga steel |
| Seams continuously welded and ground smooth |
| External wall mounting brackets for easy installation |
| Formed external return flanges around all sides of enclosure opening |
| Screw-down door clamps |
| Removable heavy gauge continuous hinge pin |
| Hasp and staple is provided for padlocking |
| Data pocket is high impact thermoplastic |
| Bonding provision on door |
| Removable door with continuous hinge |
| Oil-resistant gasket |
| Oil-resistant gasket |
| ANSI 61 gray |
