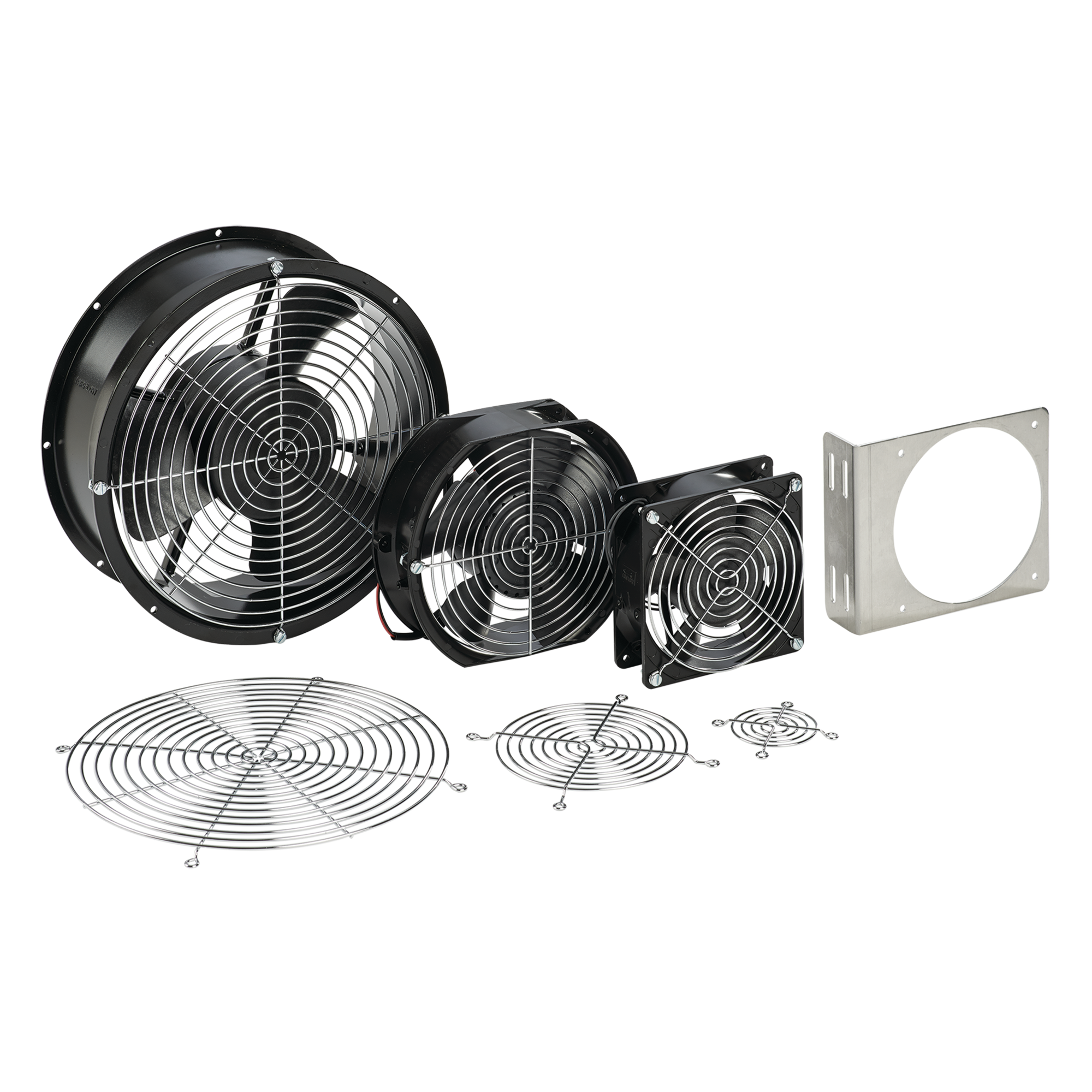

nVent HOFFMAN A10AXFN D85 Compact Axial Fan, 115 VAC, 0.88/1 A, 36/36 W Power Rating, 480/560 cfm Air Flow
Custom_Product_Images_Illustration
nVent HOFFMAN A10AXFN D85 Compact Axial Fan, 115 VAC, 0.88/1 A, 36/36 W Power Rating, 480/560 cfm Air Flow
SKU24608
MFGR #A10AXFN
Your Cost: $440.67/ea
nVent HOFFMAN Axial Fan, Compact, Series: D85, 115 VAC, 0.88/1 A, 36/36 W, 46/49 dBA, 480/560 cfm, 1350/1650 rpm, AC Motor, Polycarbonate Housing, 10 in Dia x 3-1/2 in D
nVent HOFFMAN Axial Fan, Compact, Series: D85, 115 VAC, 0.88/1 A, 36/36 W, 46/49 dBA, 480/560 cfm, 1350/1650 rpm, AC Motor, Polycarbonate Housing, 10 in Dia x 3-1/2 in D
Application Controls and Drives; Power Distribution ARRA Compliant C Blade Size 10-inch diameter in Buy American Compliant C Catalog Number A10AXFN Color Jet Black Color Code RAL 9005 Country of Origin TW Currency USD EU RoHS Indicator RCP Fan Depth 3.5 in Fan Diameter 10 in Fan Size 10-in. Fans in Fan Speed 1650rpm at 60Hz Finish Powder Coat Flow Rate 480/560 CFM max Gross Volume Per Pack 0.36 Gross Volume UOM FC Gross Weight Per Pack 5.5000 lb Gross Weight per Pack Metric 2.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8414596590 Height 5.0000 in Height [Metric] 12.7000 cm Item Group D85 Length 11.2000 in Length [Metric] 28.4480 cm Material Mild Steel Max CFM 480/560 CFM Max Current 1.0/.88 A Max m3|hr 816/951 CMH Motor Type AC Motor Nominal Fan Size 10 in Package Quantity 1 Returnable Y Size 115v 50/60Hz in Sound Pressure Level 49dBA at 60 Hz Type Fans and Filter Fans UNSPSC 40101604 UPC 11 78351022230 UPC 12 783510222307 Voltage AC 100 - 120 VAC Width 11.0000 in Width [Metric] 27.9400 cm Stock Status NONSTOCK Brand nVent HOFFMAN Manufacturer HOFFMAN ENCLOSURES Amperage Rating 1.0/.88 A Voltage Rating 100 - 120 VAC Controls and Drives; Power Distribution Maximum operating temperature is 158 deg F 4 in fan is thermally protected and uses permanently lubricated ball bearings Split capacitor motors are thermally protected to avoid premature failure Dynamically balanced impellers molded from polycarbonate material One finger guard is furnished All mounting hardware is provided 240 and 560 cfm fans have ball bearing construction and split capacitor motors Fans have lead wires with ends stripped 1/2 in or 6 ft cord with polarized plug for power connections Fan housing is black finish Can be installed on any surface of an enclosure, with the addition of accessory fan brackets, compact cooling fans can also be installed in any position inside the enclosure for spot cooling or air circulation installation
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Controls and Drives; Power Distribution |
| ARRA Compliant | C |
| Blade Size | 10-inch diameter in |
| Buy American Compliant | C |
| Catalog Number | A10AXFN |
| Color | Jet Black |
| Color Code | RAL 9005 |
| Country of Origin | TW |
| Currency | USD |
| EU RoHS Indicator | RCP |
| Fan Depth | 3.5 in |
| Fan Diameter | 10 in |
| Fan Size | 10-in. Fans in |
| Fan Speed | 1650rpm at 60Hz |
| Finish | Powder Coat |
| Flow Rate | 480/560 CFM max |
| Gross Volume Per Pack | 0.36 |
| Gross Volume UOM | FC |
| Gross Weight Per Pack | 5.5000 lb |
| Gross Weight per Pack Metric | 2.27 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8414596590 |
| Height | 5.0000 in |
| Height [Metric] | 12.7000 cm |
| Item Group | D85 |
| Length | 11.2000 in |
| Length [Metric] | 28.4480 cm |
| Material | Mild Steel |
| Max CFM | 480/560 CFM |
| Max Current | 1.0/.88 A |
| Max m3|hr | 816/951 CMH |
| Motor Type | AC Motor |
| Nominal Fan Size | 10 in |
| Package Quantity | 1 |
| Returnable | Y |
| Size | 115v 50/60Hz in |
| Sound Pressure Level | 49dBA at 60 Hz |
| Type | Fans and Filter Fans |
| UNSPSC | 40101604 |
| UPC 11 | 78351022230 |
| UPC 12 | 783510222307 |
| Voltage AC | 100 - 120 VAC |
| Width | 11.0000 in |
| Width [Metric] | 27.9400 cm |
| Stock Status | NONSTOCK |
| Brand | nVent HOFFMAN |
| Manufacturer | HOFFMAN ENCLOSURES |
| Amperage Rating | 1.0/.88 A |
| Voltage Rating | 100 - 120 VAC |
| Controls and Drives; Power Distribution |
| Maximum operating temperature is 158 deg F |
| 4 in fan is thermally protected and uses permanently lubricated ball bearings |
| Split capacitor motors are thermally protected to avoid premature failure |
| Dynamically balanced impellers molded from polycarbonate material |
| One finger guard is furnished |
| All mounting hardware is provided |
| 240 and 560 cfm fans have ball bearing construction and split capacitor motors |
| Fans have lead wires with ends stripped 1/2 in or 6 ft cord with polarized plug for power connections |
| Fan housing is black finish |
| Can be installed on any surface of an enclosure, with the addition of accessory fan brackets, compact cooling fans can also be installed in any position inside the enclosure for spot cooling or air circulation installation |
