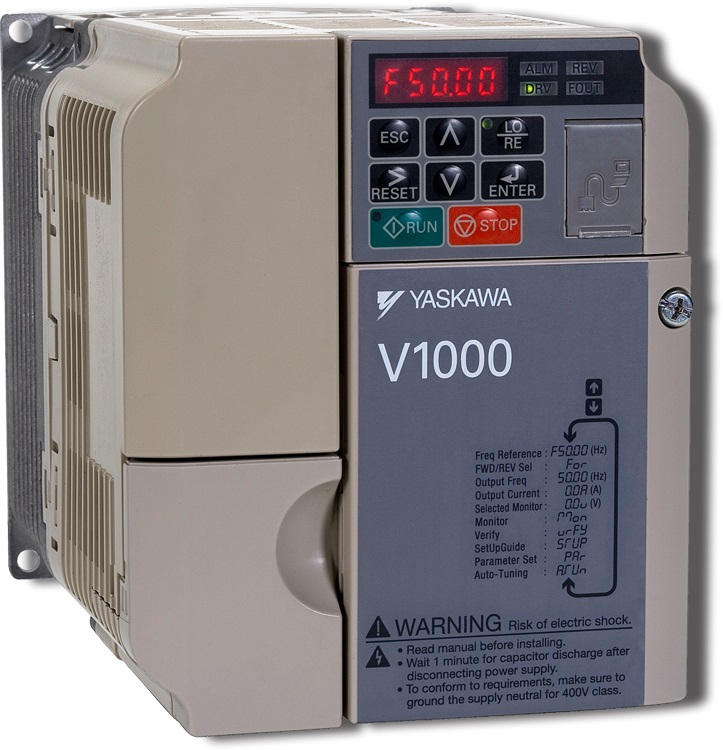

Yaskawa CIMR-VU4A0011FAA V1000 AC Drive, 480V 3-Phase, IP20, 7.5 HP Normal Duty
SKU583834
MFGR #CIMR-VU4A0011FAA
Your Cost: $1,065.00/ea
The V1000 is a compact AC current open loop vector drive. Its input voltage rated at 380 to 480 VAC and is 3 phase. The normal duty horsepower rating to the drive is 7.5 HP.
The V1000 is a compact AC current open loop vector drive. Its input voltage rated at 380 to 480 VAC and is 3 phase. The normal duty horsepower rating to the drive is 7.5 HP.
Amperage Rating 11.1 A (Nominal Duty);9.2 A (Heavy Duty) Brand Yaskawa Catalog Number CIMR-VU4A0011FAA Color Gray;Clear Depth 5.63 in Display Type Analog Enclosure Type NEMA Type 1 Gross Weight Per Pack 6.3500 lb Height 6.02 in Horsepower 7.5 hp (Nominal Duty);5 hp (Heavy Duty) Manufacturer Yaskawa Mounting Type Panel Mount Series V1000 Stock Status NORMALLY STOCKED Type AC Drive Voltage Rating 380 to 480 V Width 5.51 in Up to 30% smaller than the competition Current vector control, open loop Increased vibration resistance, from 20 Hz to 50 Hz (0.65G) Modbus communication Induction motor (IM) or permanent magnet motor (PM) operation Common programming with all other Yaskawa drives EN954-1 Safety Cat. 3, Stop Cat. 0 RoHS compliance MTBF: 28 years
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 11.1 A (Nominal Duty);9.2 A (Heavy Duty) |
| Brand | Yaskawa |
| Catalog Number | CIMR-VU4A0011FAA |
| Color | Gray;Clear |
| Depth | 5.63 in |
| Display Type | Analog |
| Enclosure Type | NEMA Type 1 |
| Gross Weight Per Pack | 6.3500 lb |
| Height | 6.02 in |
| Horsepower | 7.5 hp (Nominal Duty);5 hp (Heavy Duty) |
| Manufacturer | Yaskawa |
| Mounting Type | Panel Mount |
| Series | V1000 |
| Stock Status | NORMALLY STOCKED |
| Type | AC Drive |
| Voltage Rating | 380 to 480 V |
| Width | 5.51 in |
| Up to 30% smaller than the competition |
| Current vector control, open loop |
| Increased vibration resistance, from 20 Hz to 50 Hz (0.65G) |
| Modbus communication |
| Induction motor (IM) or permanent magnet motor (PM) operation |
| Common programming with all other Yaskawa drives |
| EN954-1 Safety Cat. 3, Stop Cat. 0 |
| RoHS compliance |
| MTBF: 28 years |
