YG-1

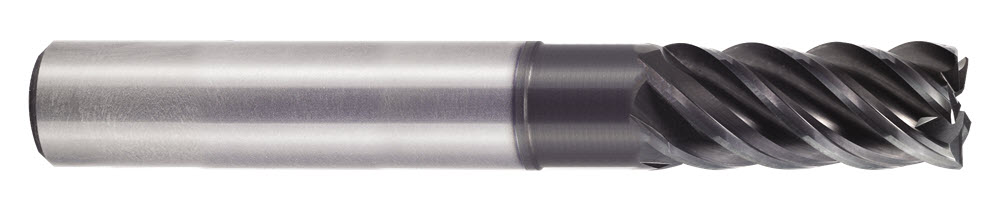

YG-1 UGMH07912 3/8(R.030) x 3/8 x 1/2 x 2-1/8 x 4 TitaNox-POWER 5 FLUTE CORNER RADIUS EXTENDED NECK END MILL
YG-1
YG-1 UGMH07912 3/8(R.030) x 3/8 x 1/2 x 2-1/8 x 4 TitaNox-POWER 5 FLUTE CORNER RADIUS EXTENDED NECK END MILL
SKUPDW~12872548
MFGR #UGMH07912
Your Cost: $137.43/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Stainless Steel, Superalloys Catalog Number UGMH07912 Country of Origin KR Cut Type Center Cutting Direction Right Hand Flute Type Spiral Gross Weight Per Pack 0.2300 lb Helix Angle Variable Material Micrograin Carbide Series UGMH07 Shank Style Plain Shank Type Plain Type 5 Flute Square Extended Neck Usable Length 2.125 in Brand YG-1 Manufacturer YG-1 U.S.A. Corner Radius 0.03 in Cutter Diameter 0.375 in Finish Y-Coating Length of Cut 0.5 in Number of Flutes 5 Overall Length 4 in Shank Diameter 0.375 in Stainless Steel, Superalloys
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Stainless Steel, Superalloys |
| Catalog Number | UGMH07912 |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.2300 lb |
| Helix Angle | Variable |
| Material | Micrograin Carbide |
| Series | UGMH07 |
| Shank Style | Plain |
| Shank Type | Plain |
| Type | 5 Flute Square Extended Neck |
| Usable Length | 2.125 in |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Corner Radius | 0.03 in |
| Cutter Diameter | 0.375 in |
| Finish | Y-Coating |
| Length of Cut | 0.5 in |
| Number of Flutes | 5 |
| Overall Length | 4 in |
| Shank Diameter | 0.375 in |
| Stainless Steel, Superalloys |
