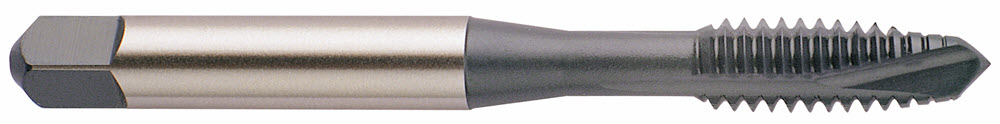

YG-1 TK808516 M12 -1.5 D6 HSS-PM 3 FLUTE SPIRAL POINTED PLUG STYLE TICN COATED STEELS UP TO 45HRc TAP
YG-1 TK808516 M12 -1.5 D6 HSS-PM 3 FLUTE SPIRAL POINTED PLUG STYLE TICN COATED STEELS UP TO 45HRc TAP
SKUPDW~12662756
MFGR #TK808516
Your Cost: $99.22/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Catalog Number TK808516 Chamfer Length 4P-5P Connection 0.367 x 0.275 in Country of Origin KR Diameter 0.4724 in Drill Size 0.4187 in Finish|Coating TICN Gross Weight Per Pack 0.1100 lb Industry Standard 302A Length of Square 0.44 in Neck Diameter 0.354 in Overall Length 3.38 in Series TK808 Shank Diameter 0.367 in Shank Type Square Square Size 0.275 in Tap Type SPPT Thread Diameter 12 mm Thread Length 0.984 in Thread Standard MF Through Coolant No TPI or Pitch 1.5 mm Usable Length 1.657 in Brand YG-1 Manufacturer YG-1 U.S.A. Chamfer Type Plug Material P-HSS Number of Flutes 3 Thread Limit D6 Thread Size M12x1.5
content loaded
content loaded
- Attributes
- Substitute Products
| Catalog Number | TK808516 |
| Chamfer Length | 4P-5P |
| Connection | 0.367 x 0.275 in |
| Country of Origin | KR |
| Diameter | 0.4724 in |
| Drill Size | 0.4187 in |
| Finish|Coating | TICN |
| Gross Weight Per Pack | 0.1100 lb |
| Industry Standard | 302A |
| Length of Square | 0.44 in |
| Neck Diameter | 0.354 in |
| Overall Length | 3.38 in |
| Series | TK808 |
| Shank Diameter | 0.367 in |
| Shank Type | Square |
| Square Size | 0.275 in |
| Tap Type | SPPT |
| Thread Diameter | 12 mm |
| Thread Length | 0.984 in |
| Thread Standard | MF |
| Through Coolant | No |
| TPI or Pitch | 1.5 mm |
| Usable Length | 1.657 in |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Chamfer Type | Plug |
| Material | P-HSS |
| Number of Flutes | 3 |
| Thread Limit | D6 |
| Thread Size | M12x1.5 |
