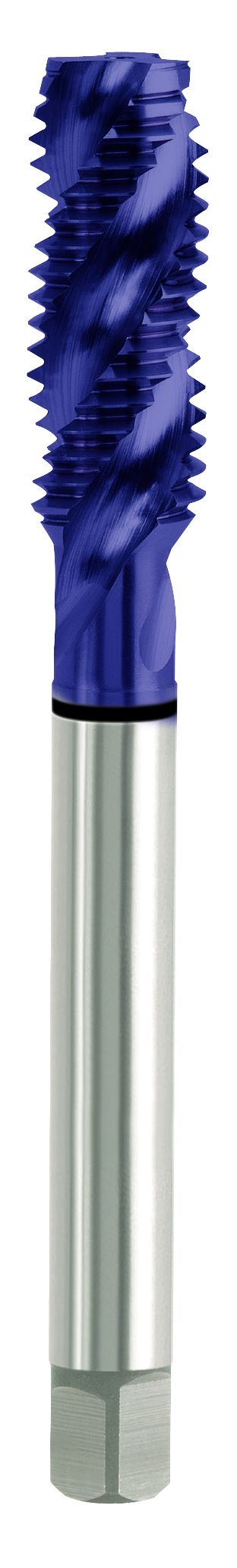

YG-1 T4222C #5-44, H2 3 FLUTE SPIRAL POINTED COMBO TAP FOR MULTI-PURPOSE TICN COATED HSS-EX
SKUPDW~10964681
MFGR #T4222C
Your Cost: $28.60/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Catalog Number T4222C Chamfer Length 4P - 5P Connection 0.141 x 0.11 in Country of Origin KR Diameter 0.125 in Drill Size 0.1043 in Finish|Coating TICN Gross Weight Per Pack 0.0100 lb Industry Standard 302A Length of Square 0.19 in Neck Diameter 0.09 in Overall Length 1.94 in Ring Color Black Series T4-C Shank Diameter 0.141 in Shank Type Square Square Size 0.11 in Tap Type SPPT Thread Diameter #5 Thread Length 0.374 in Thread Standard UNF Through Coolant No TPI or Pitch 44 Usable Length 0.626 in Brand YG-1 Manufacturer YG-1 U.S.A. Chamfer Type Plug Material HSS-EX Number of Flutes 3 Thread Limit H2 Thread Size #5-44
content loaded
content loaded
- Attributes
- Substitute Products
| Catalog Number | T4222C |
| Chamfer Length | 4P - 5P |
| Connection | 0.141 x 0.11 in |
| Country of Origin | KR |
| Diameter | 0.125 in |
| Drill Size | 0.1043 in |
| Finish|Coating | TICN |
| Gross Weight Per Pack | 0.0100 lb |
| Industry Standard | 302A |
| Length of Square | 0.19 in |
| Neck Diameter | 0.09 in |
| Overall Length | 1.94 in |
| Ring Color | Black |
| Series | T4-C |
| Shank Diameter | 0.141 in |
| Shank Type | Square |
| Square Size | 0.11 in |
| Tap Type | SPPT |
| Thread Diameter | #5 |
| Thread Length | 0.374 in |
| Thread Standard | UNF |
| Through Coolant | No |
| TPI or Pitch | 44 |
| Usable Length | 0.626 in |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Chamfer Type | Plug |
| Material | HSS-EX |
| Number of Flutes | 3 |
| Thread Limit | H2 |
| Thread Size | #5-44 |
