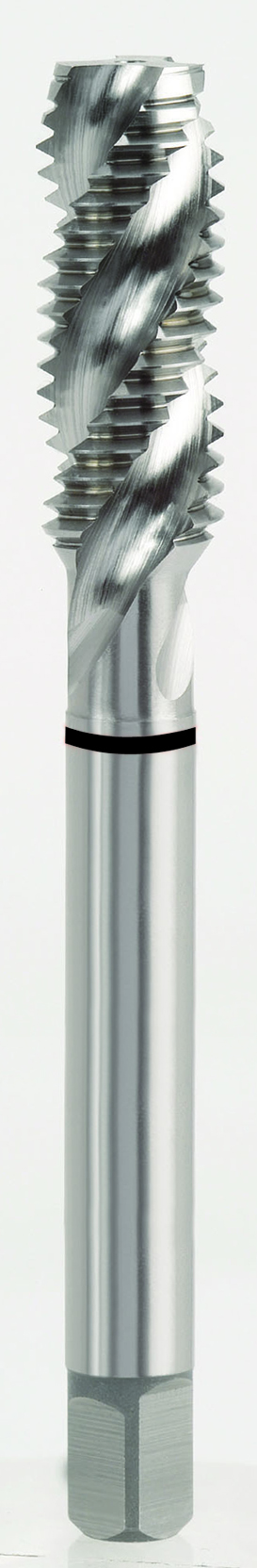

YG-1 T2625 9/16-18, H5 3 FLUTE SPIRAL FLUTED COMBO TAP FOR MULTI-PURPOSE BRIGHT FINISH HSS-EX
SKU1076441
MFGR #T2625
$/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Catalog Number T2625 Chamfer Length 2P - 3P Connection 0.429 x 0.322 in Country of Origin KR Diameter 0.5625 in Drill Size 0.512 in Finish|Coating Bright Gross Weight Per Pack 0.1300 lb Helix Angle 40 ° Industry Standard 302A Length of Square 0.5 in Neck Diameter 0.417 in Overall Length 3.59 in Ring Color Black Series T2 Shank Diameter 0.429 in Shank Type Square Square Size 0.322 in Tap Type SPFL Thread Diameter 9/16 in Thread Length 0.512 in Thread Standard UNF Through Coolant No TPI or Pitch 18 Usable Length 2.067 in Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Chamfer Type Modified Bottoming Material HSS-EX Number of Flutes 3 Thread Limit H5 Thread Size 9/16-18
content loaded
content loaded
- Attributes
- Substitute Products
| Catalog Number | T2625 |
| Chamfer Length | 2P - 3P |
| Connection | 0.429 x 0.322 in |
| Country of Origin | KR |
| Diameter | 0.5625 in |
| Drill Size | 0.512 in |
| Finish|Coating | Bright |
| Gross Weight Per Pack | 0.1300 lb |
| Helix Angle | 40 ° |
| Industry Standard | 302A |
| Length of Square | 0.5 in |
| Neck Diameter | 0.417 in |
| Overall Length | 3.59 in |
| Ring Color | Black |
| Series | T2 |
| Shank Diameter | 0.429 in |
| Shank Type | Square |
| Square Size | 0.322 in |
| Tap Type | SPFL |
| Thread Diameter | 9/16 in |
| Thread Length | 0.512 in |
| Thread Standard | UNF |
| Through Coolant | No |
| TPI or Pitch | 18 |
| Usable Length | 2.067 in |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Chamfer Type | Modified Bottoming |
| Material | HSS-EX |
| Number of Flutes | 3 |
| Thread Limit | H5 |
| Thread Size | 9/16-18 |
