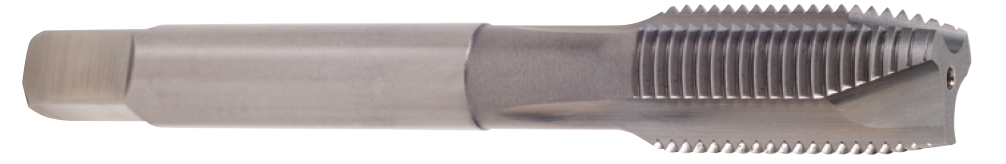

YG-1 T2496323 10-24UNC H3 HSS-EX 2 FLUTE MODI SPIRAL POINT PLUG STYLE TAP FOR ALUMIMIUM
SKU1103372
MFGR #T2496323
$/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Catalog Number T2496323 Chamfer Length 4P-5P Connection 0.194 x 0.152 in Country of Origin KR Diameter 0.19 in Drill Size 0.1521 in Finish|Coating Bright Gross Weight Per Pack 0.0200 lb Industry Standard 302A Length of Square 0.25 in Neck Diameter 0.131 in Overall Length 2.38 in Series T2496 Shank Diameter 0.194 in Shank Type Square Square Size 0.152 in Tap Type SPPT Thread Diameter #10 Thread Length 0.531 in Thread Standard UNC Through Coolant No TPI or Pitch 24 Usable Length 0.906 in Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Chamfer Type Plug Material HSSE-V3 Number of Flutes 2 Thread Limit H3 Thread Size #10-24
content loaded
content loaded
- Attributes
- Substitute Products
| Catalog Number | T2496323 |
| Chamfer Length | 4P-5P |
| Connection | 0.194 x 0.152 in |
| Country of Origin | KR |
| Diameter | 0.19 in |
| Drill Size | 0.1521 in |
| Finish|Coating | Bright |
| Gross Weight Per Pack | 0.0200 lb |
| Industry Standard | 302A |
| Length of Square | 0.25 in |
| Neck Diameter | 0.131 in |
| Overall Length | 2.38 in |
| Series | T2496 |
| Shank Diameter | 0.194 in |
| Shank Type | Square |
| Square Size | 0.152 in |
| Tap Type | SPPT |
| Thread Diameter | #10 |
| Thread Length | 0.531 in |
| Thread Standard | UNC |
| Through Coolant | No |
| TPI or Pitch | 24 |
| Usable Length | 0.906 in |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Chamfer Type | Plug |
| Material | HSSE-V3 |
| Number of Flutes | 2 |
| Thread Limit | H3 |
| Thread Size | #10-24 |
