YG-1

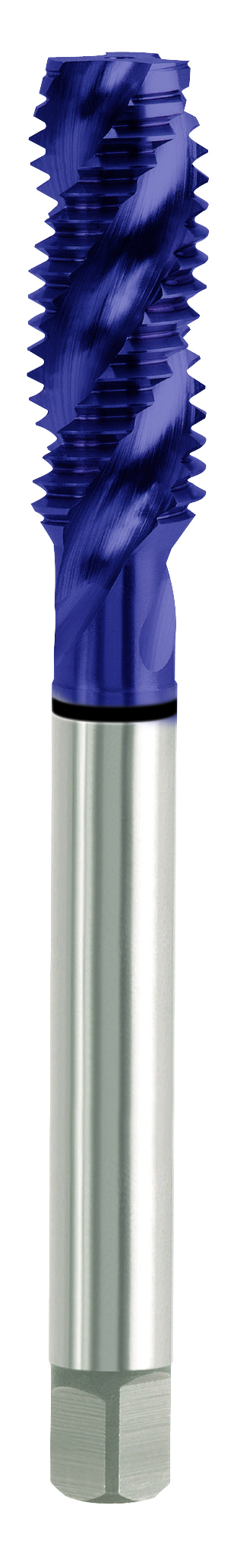

YG-1 T2445C 5/16-18, H5 3 FLUTE SPIRAL FLUTED COMBO TAP FOR MULTI-PURPOSE TICN COATED HSS-EX
YG-1
YG-1 T2445C 5/16-18, H5 3 FLUTE SPIRAL FLUTED COMBO TAP FOR MULTI-PURPOSE TICN COATED HSS-EX
SKU1076859
MFGR #T2445C
$/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Catalog Number T2445C Chamfer Length 2P - 3P Connection 0.318 x 0.238 in Country of Origin KR Diameter 0.3125 in Drill Size 0.262 in Finish|Coating TICN Gross Weight Per Pack 0.0500 lb Helix Angle 40 ° Industry Standard 302A Length of Square 0.38 in Neck Diameter 0.234 in Overall Length 2.72 in Ring Color Black Series T2-C Shank Diameter 0.318 in Shank Type Square Square Size 0.238 in Tap Type SPFL Thread Diameter 5/16 in Thread Length 0.472 in Thread Standard UNC Through Coolant No TPI or Pitch 18 Usable Length 1.126 in Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Chamfer Type Modified Bottoming Material HSS-EX Number of Flutes 3 Thread Limit H5 Thread Size 5/16-18
content loaded
content loaded
- Attributes
- Substitute Products
| Catalog Number | T2445C |
| Chamfer Length | 2P - 3P |
| Connection | 0.318 x 0.238 in |
| Country of Origin | KR |
| Diameter | 0.3125 in |
| Drill Size | 0.262 in |
| Finish|Coating | TICN |
| Gross Weight Per Pack | 0.0500 lb |
| Helix Angle | 40 ° |
| Industry Standard | 302A |
| Length of Square | 0.38 in |
| Neck Diameter | 0.234 in |
| Overall Length | 2.72 in |
| Ring Color | Black |
| Series | T2-C |
| Shank Diameter | 0.318 in |
| Shank Type | Square |
| Square Size | 0.238 in |
| Tap Type | SPFL |
| Thread Diameter | 5/16 in |
| Thread Length | 0.472 in |
| Thread Standard | UNC |
| Through Coolant | No |
| TPI or Pitch | 18 |
| Usable Length | 1.126 in |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Chamfer Type | Modified Bottoming |
| Material | HSS-EX |
| Number of Flutes | 3 |
| Thread Limit | H5 |
| Thread Size | 5/16-18 |
