YG-1

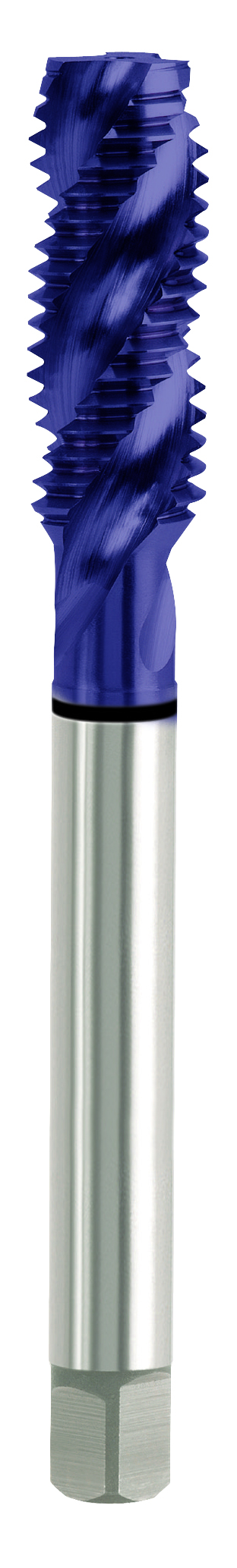

YG-1 T2262C 6-40, H2 3 FLUTE SPIRAL FLUTED COMBO TAP FOR MULTI-PURPOSE TICN COATED HSS-EX
YG-1
YG-1 T2262C 6-40, H2 3 FLUTE SPIRAL FLUTED COMBO TAP FOR MULTI-PURPOSE TICN COATED HSS-EX
SKUPDW~10964553
MFGR #T2262C
Your Cost: $28.22/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Catalog Number T2262C Chamfer Length 2P - 3P Connection 0.141 x 0.11 in Country of Origin KR Diameter 0.138 in Drill Size 0.1153 in Finish|Coating TiCN Gross Weight Per Pack 0.0100 lb Helix Angle 40 ° Industry Standard 302A Length of Square 0.19 in Neck Diameter 0.094 in Overall Length 2 in Ring Color Black Series T2-C Shank Diameter 0.141 in Shank Type Square Square Size 0.11 in Tap Type SPFL Thread Diameter #6 Thread Length 0.276 in Thread Standard UNF Through Coolant No TPI or Pitch 40 Usable Length 0.689 in Brand YG-1 Manufacturer YG-1 U.S.A. Chamfer Type Modified Bottoming Material HSS-EX Number of Flutes 3 Thread Limit H2 Thread Size #6-40
content loaded
content loaded
- Attributes
- Substitute Products
| Catalog Number | T2262C |
| Chamfer Length | 2P - 3P |
| Connection | 0.141 x 0.11 in |
| Country of Origin | KR |
| Diameter | 0.138 in |
| Drill Size | 0.1153 in |
| Finish|Coating | TiCN |
| Gross Weight Per Pack | 0.0100 lb |
| Helix Angle | 40 ° |
| Industry Standard | 302A |
| Length of Square | 0.19 in |
| Neck Diameter | 0.094 in |
| Overall Length | 2 in |
| Ring Color | Black |
| Series | T2-C |
| Shank Diameter | 0.141 in |
| Shank Type | Square |
| Square Size | 0.11 in |
| Tap Type | SPFL |
| Thread Diameter | #6 |
| Thread Length | 0.276 in |
| Thread Standard | UNF |
| Through Coolant | No |
| TPI or Pitch | 40 |
| Usable Length | 0.689 in |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Chamfer Type | Modified Bottoming |
| Material | HSS-EX |
| Number of Flutes | 3 |
| Thread Limit | H2 |
| Thread Size | #6-40 |
