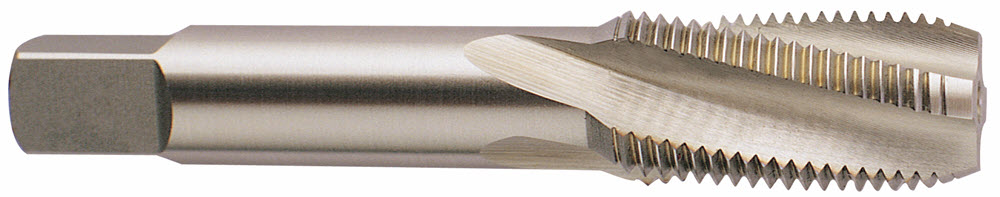

YG-1 Q0480 3/8 - 18 4 FLUTE SPIRAL FLUTED PIPE TAP 15 DEG HELIX HP NPT/F STEAM OXIDE
Custom_Product_Images_Illustration
YG-1 Q0480 3/8 - 18 4 FLUTE SPIRAL FLUTED PIPE TAP 15 DEG HELIX HP NPT/F STEAM OXIDE
SKU1065488
MFGR #Q0480
Your Cost: $36.65/ea
List: YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Catalog Number Q0480 Chamfer Length 2P-3P Chamfer Type Modified Bottoming Connection 0.7 x 0.531 in Country of Origin KR Diameter 0.375 in Drill Size 0.5625 in Finish|Coating Steam Oxide Gross Weight Per Pack 0.2100 lb Industry Standard 311 Length of Square 0.5 in Material HSSE-V3 Number of Flutes 4 Overall Length 2.56 in Series Q6 Shank Diameter 0.7 in Shank Type Square Square Size 0.531 in Tap Type NPT(F) Taper Pipe Tap Thread Diameter 3/8 in Thread Length 1.06 in Thread Standard NPTF TPI or Pitch 18 Usable Length 1.06 in Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Helix Angle 15 ° Thread Size 3/8-18
content loaded
content loaded
- Attributes
- Substitute Products
| Catalog Number | Q0480 |
| Chamfer Length | 2P-3P |
| Chamfer Type | Modified Bottoming |
| Connection | 0.7 x 0.531 in |
| Country of Origin | KR |
| Diameter | 0.375 in |
| Drill Size | 0.5625 in |
| Finish|Coating | Steam Oxide |
| Gross Weight Per Pack | 0.2100 lb |
| Industry Standard | 311 |
| Length of Square | 0.5 in |
| Material | HSSE-V3 |
| Number of Flutes | 4 |
| Overall Length | 2.56 in |
| Series | Q6 |
| Shank Diameter | 0.7 in |
| Shank Type | Square |
| Square Size | 0.531 in |
| Tap Type | NPT(F) Taper Pipe Tap |
| Thread Diameter | 3/8 in |
| Thread Length | 1.06 in |
| Thread Standard | NPTF |
| TPI or Pitch | 18 |
| Usable Length | 1.06 in |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Helix Angle | 15 ° |
| Thread Size | 3/8-18 |
