YG-1

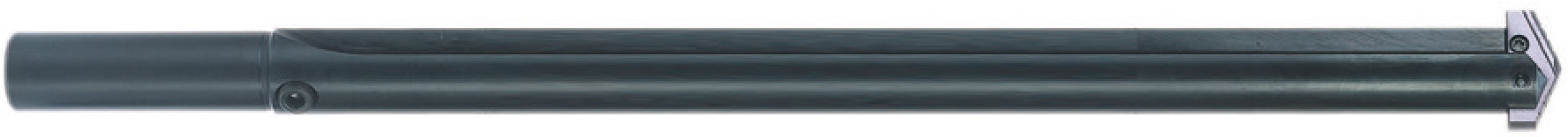

YG-1 P16001 Extended Length Spade Drill Holder, 3/4 in Straight Shank, 7-11/16 in OAL, 33/64 - 11/16 in Blade
Custom_Product_Images_Illustration
YG-1
YG-1 P16001 Extended Length Spade Drill Holder, 3/4 in Straight Shank, 7-11/16 in OAL, 33/64 - 11/16 in Blade
SKU698641
MFGR #P16001
Your Cost: $281.41/ea
List: YG-1 Spade Drill Holder, Extended Length, Series: P16, 33/64 - 11/16 in Blade, 4-1/2 in Maximum Drill Depth, 5-27/64 in Body Length, 7-11/16 in Overall Length, 3/4 in Shank, Straight Shank, 0 Seat
YG-1 Spade Drill Holder, Extended Length, Series: P16, 33/64 - 11/16 in Blade, 4-1/2 in Maximum Drill Depth, 5-27/64 in Body Length, 7-11/16 in Overall Length, 3/4 in Shank, Straight Shank, 0 Seat
Body Length 5-27/64 in Catalog Number P16001 Country of Origin KR Cutting Direction Right Hand Finish Oxide Flute Length 5.3125 in Flute Type Straight Gross Weight Per Pack 0.5200 lb Material Steel Maximum Drill Depth 4.5 in Maximum Insert Diameter 0.6875 in Minimum Insert Diameter 0.5156 in Number of Flutes 2 Pipe Tap Size 0.125 in Seat Size 0 Series P16 Shank Diameter 0.75 in Shank Length 2.375 in Through Coolant Yes Type Straight Shank Spade Drill Holder Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Blade Range 33/64 to 11/16 in Overall Length 7.6875 in Shank Size 3/4 in Dia x 2-3/8 in L Shank Type Straight 5-5/16 in Flute length 2-3/8 in L Shank
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Body Length | 5-27/64 in |
| Catalog Number | P16001 |
| Country of Origin | KR |
| Cutting Direction | Right Hand |
| Finish | Oxide |
| Flute Length | 5.3125 in |
| Flute Type | Straight |
| Gross Weight Per Pack | 0.5200 lb |
| Material | Steel |
| Maximum Drill Depth | 4.5 in |
| Maximum Insert Diameter | 0.6875 in |
| Minimum Insert Diameter | 0.5156 in |
| Number of Flutes | 2 |
| Pipe Tap Size | 0.125 in |
| Seat Size | 0 |
| Series | P16 |
| Shank Diameter | 0.75 in |
| Shank Length | 2.375 in |
| Through Coolant | Yes |
| Type | Straight Shank Spade Drill Holder |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Blade Range | 33/64 to 11/16 in |
| Overall Length | 7.6875 in |
| Shank Size | 3/4 in Dia x 2-3/8 in L |
| Shank Type | Straight |
| 5-5/16 in Flute length |
| 2-3/8 in L Shank |
