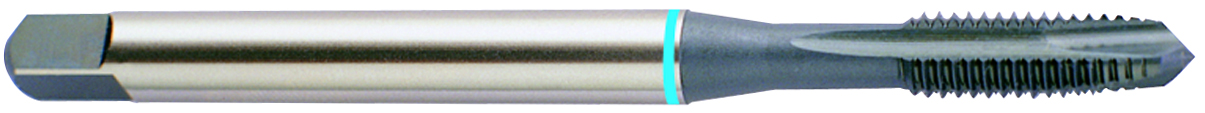

YG-1 O5 Single End Straight Flute Spiral Point Tap, Imperial, 5/16-18, UNC Thread, 3 Flutes, Plug, Super HSS
YG-1 O5 Single End Straight Flute Spiral Point Tap, Imperial, 5/16-18, UNC Thread, 3 Flutes, Plug, Super HSS
SKU1083250
MFGR #O5445
$/ea
YG-1 Spiral Point Tap, Single End Straight Flute, Series: O5, Measurement System Imperial, 5/16-18, UNC Thread Standard, Plug Chamfer, 3 Flutes, Super HSS, Hardslick Coated, Right Hand Cutting, 0.669 in Thread Length, 3.543 in Overall Length, 0.318 in Shank Dia
YG-1 Spiral Point Tap, Single End Straight Flute, Series: O5, Measurement System Imperial, 5/16-18, UNC Thread Standard, Plug Chamfer, 3 Flutes, Super HSS, Hardslick Coated, Right Hand Cutting, 0.669 in Thread Length, 3.543 in Overall Length, 0.318 in Shank Dia
Catalog Number O5445 Chamfer Length 4P-5P Connection 0.318 x 0.238 in Country of Origin KR Diameter 0.3125 in Drill Size 0.262 in Finish|Coating Steam Oxide Gross Weight Per Pack 1.1300 lb Industry Standard 302A Length of Square 0.38 in Measurement System Imperial Neck Diameter 0.234 in Overall Length 2.72 in Ring Color Blue Ring Series O5 Shank Diameter 0.318 in Shank Type Square Size 5/16-18 Square Size 0.238 in Standards ANSI/DIN Specified Tap Type SPPT Thread Diameter 5/16 in Thread Length 0.669 in Thread Standard UNC TPI or Pitch 18 Type Single End Straight Flute Usable Length 1.126 in Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Chamfer Type Plug Cutting Direction Right Hand Material Super HSS Material Application Steel and Stainless Steel Number of Flutes 3 Thread Limit H5 Thread Size 5/16-18 For steels and stainless steels up to 35 HRc 60 deg thread 0.238 in square size 4P-5P chamfer H5 thread limit
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | O5445 |
| Chamfer Length | 4P-5P |
| Connection | 0.318 x 0.238 in |
| Country of Origin | KR |
| Diameter | 0.3125 in |
| Drill Size | 0.262 in |
| Finish|Coating | Steam Oxide |
| Gross Weight Per Pack | 1.1300 lb |
| Industry Standard | 302A |
| Length of Square | 0.38 in |
| Measurement System | Imperial |
| Neck Diameter | 0.234 in |
| Overall Length | 2.72 in |
| Ring Color | Blue Ring |
| Series | O5 |
| Shank Diameter | 0.318 in |
| Shank Type | Square |
| Size | 5/16-18 |
| Square Size | 0.238 in |
| Standards | ANSI/DIN Specified |
| Tap Type | SPPT |
| Thread Diameter | 5/16 in |
| Thread Length | 0.669 in |
| Thread Standard | UNC |
| TPI or Pitch | 18 |
| Type | Single End Straight Flute |
| Usable Length | 1.126 in |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Chamfer Type | Plug |
| Cutting Direction | Right Hand |
| Material | Super HSS |
| Material Application | Steel and Stainless Steel |
| Number of Flutes | 3 |
| Thread Limit | H5 |
| Thread Size | 5/16-18 |
| For steels and stainless steels up to 35 HRc |
| 60 deg thread |
| 0.238 in square size |
| 4P-5P chamfer |
| H5 thread limit |
