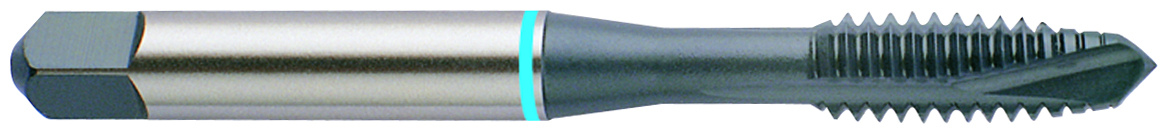

YG-1 N7284 N7 Single End Straight Flute Spiral Point Tap, Metric, M5x0.8, Fine Thread, 3 Flutes, Right Hand Cutting Direction
Spiral Point Taps
716943
MFG #: N7284
YG-1
12.09000
/ ea
YG-1 Spiral Point Tap, Single End Straight Flute, Series: N7, Measurement System Metric, M5x0.8, Fine Thread Standard, Plug Chamfer, 3 Flutes, Super HSS, Steam Oxide, Right Hand Cutting, 0.531 in Thread Length, 2.756 in Overall Length, 0.194 in Shank Dia
- Features
| For steels and stainless steels up to 35 HRc |
| 60 deg thread |
| 0.152 in square size |
| 4P-5P chamfer |
| D4 thread limit |
