YG-1 L1786 1 - 8, H6 3 FLUTE SPIRAL POINTED PLUG HARDSLICK COATED TAP FOR MULTI PURPOSE

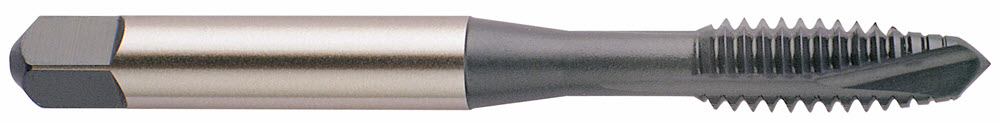

Custom_Product_Images_Illustration
YG-1 L1786 1 - 8, H6 3 FLUTE SPIRAL POINTED PLUG HARDSLICK COATED TAP FOR MULTI PURPOSE
SKUPDW~10961067
MFGR #L1786
Your Cost: $202.35/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Catalog Number L1786 Chamfer Length 4P-5P Connection 0.8 x 0.6 in Country of Origin KR Diameter 1 in Drill Size 0.8863 in Finish|Coating Hardslick Gross Weight Per Pack 0.7100 lb Industry Standard 302A Length of Square 0.81 in Neck Diameter 0.787 in Overall Length 5.13 in Series L1 Shank Diameter 0.8 in Shank Type Square Square Size 0.6 in Tap Type SPPT Thread Diameter 1 in Thread Length 1.496 in Thread Standard UNC Through Coolant No TPI or Pitch 8 Usable Length 2.5 in Brand YG-1 Manufacturer YG-1 U.S.A. Chamfer Type Plug Material HSS-V Number of Flutes 3 Thread Limit H6 Thread Size 1-8
content loaded
content loaded
- Attributes
- Substitute Products
| Catalog Number | L1786 |
| Chamfer Length | 4P-5P |
| Connection | 0.8 x 0.6 in |
| Country of Origin | KR |
| Diameter | 1 in |
| Drill Size | 0.8863 in |
| Finish|Coating | Hardslick |
| Gross Weight Per Pack | 0.7100 lb |
| Industry Standard | 302A |
| Length of Square | 0.81 in |
| Neck Diameter | 0.787 in |
| Overall Length | 5.13 in |
| Series | L1 |
| Shank Diameter | 0.8 in |
| Shank Type | Square |
| Square Size | 0.6 in |
| Tap Type | SPPT |
| Thread Diameter | 1 in |
| Thread Length | 1.496 in |
| Thread Standard | UNC |
| Through Coolant | No |
| TPI or Pitch | 8 |
| Usable Length | 2.5 in |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Chamfer Type | Plug |
| Material | HSS-V |
| Number of Flutes | 3 |
| Thread Limit | H6 |
| Thread Size | 1-8 |
