YG-1

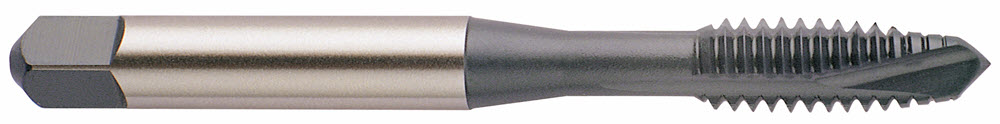

YG-1 L1663 5/8-18 3 FLUTE H3 HARDSLICK SPIRAL POINT TAP
YG-1
YG-1 L1663 5/8-18 3 FLUTE H3 HARDSLICK SPIRAL POINT TAP
SKU939251
MFGR #L1663
Your Cost: $43.29/ea
List: Spiral point is designed to push the chips ahead of the cutting action, helping to reduce loading in the flutes.
Spiral point is designed to push the chips ahead of the cutting action, helping to reduce loading in the flutes.
Catalog Number L1663 Chamfer Length 4P-5P Chamfer Style Plug Connection 0.48 x 0.36 in Country of Origin KR Diameter 0.625 in Drill Size 0.5745 in Finish Coating Hardslick coating Finish|Coating Hardslick Gross Weight Per Pack 0.2000 lb Industry Standard 302A Length of Square 0.56 in Limits H3 Neck Diameter 0.469 in Overall Length 3.81 in Pitch 18 Series L1 Shank Diameter 0.48 in Shank Type Square Size 5/8 In Square Size 0.36 in Tap Type SPPT Thread Diameter 5/8 in Thread Length 1.083 in Thread Standard UNF Through Coolant No TPI or Pitch 18 Usable Length 1.811 in Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Chamfer Type Plug Material HSS-V Number of Flutes 3 Thread Limit H3 Thread Size 5/8-18 - Spiral point is designed to push the chips ahead of the cutting action, helping to reduce loading in the flutes.
Features
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | L1663 |
| Chamfer Length | 4P-5P |
| Chamfer Style | Plug |
| Connection | 0.48 x 0.36 in |
| Country of Origin | KR |
| Diameter | 0.625 in |
| Drill Size | 0.5745 in |
| Finish Coating | Hardslick coating |
| Finish|Coating | Hardslick |
| Gross Weight Per Pack | 0.2000 lb |
| Industry Standard | 302A |
| Length of Square | 0.56 in |
| Limits | H3 |
| Neck Diameter | 0.469 in |
| Overall Length | 3.81 in |
| Pitch | 18 |
| Series | L1 |
| Shank Diameter | 0.48 in |
| Shank Type | Square |
| Size | 5/8 In |
| Square Size | 0.36 in |
| Tap Type | SPPT |
| Thread Diameter | 5/8 in |
| Thread Length | 1.083 in |
| Thread Standard | UNF |
| Through Coolant | No |
| TPI or Pitch | 18 |
| Usable Length | 1.811 in |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Chamfer Type | Plug |
| Material | HSS-V |
| Number of Flutes | 3 |
| Thread Limit | H3 |
| Thread Size | 5/8-18 |
Features |
