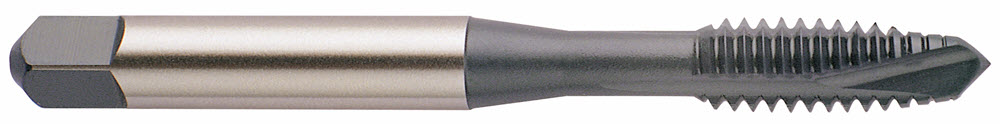

YG-1 L1243 L1 SINGLE END STRAIGHT FLUTE SPIRAL POINT TAP, IMPERIAL, #6-32, UNC THREAD, 2 FLUTES, RIGHT HAND CUTTING DIRECTION
Custom_Product_Images_Illustration
YG-1 L1243 L1 SINGLE END STRAIGHT FLUTE SPIRAL POINT TAP, IMPERIAL, #6-32, UNC THREAD, 2 FLUTES, RIGHT HAND CUTTING DIRECTION
SKU828719
MFGR #L1243
$/ea
YG-1 Spiral Point Tap, Single End Straight Flute, Series: L1, Measurement System Imperial, #6-32, UNC Thread Standard, Plug Chamfer, 2 Flutes, HSS-V, Hardslick Coated, Right Hand Cutting, 3/8 in Thread Length, 2.205 in Overall Length, 0.141 in Shank Dia
YG-1 Spiral Point Tap, Single End Straight Flute, Series: L1, Measurement System Imperial, #6-32, UNC Thread Standard, Plug Chamfer, 2 Flutes, HSS-V, Hardslick Coated, Right Hand Cutting, 3/8 in Thread Length, 2.205 in Overall Length, 0.141 in Shank Dia
Catalog Number L1243 Chamfer Length 4P-5P Connection 0.141 x 0.11 in Country of Origin KR Diameter 0.138 in Drill Size 0.1096 in Finish|Coating Hardslick Gross Weight Per Pack 0.0100 lb Industry Standard 302A Length of Square 0.19 in Neck Diameter 0.094 in Overall Length 2 in Series L1 Shank Diameter 0.141 in Shank Type Square Square Size 0.11 in Standards ANSI Specified Tap Type SPPT Thread Diameter #6 Thread Length 0.413 in Thread Standard UNC Through Coolant No TPI or Pitch 32 Type Multi-Purpose Single End Usable Length 0.689 in Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Chamfer Type Plug Cutting Direction Right Hand Material HSS-V Number of Flutes 2 Thread Limit H3 Thread Size #6-32 60 deg thread 0.11 in square size 4P-5P chamfer H3 thread limit
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | L1243 |
| Chamfer Length | 4P-5P |
| Connection | 0.141 x 0.11 in |
| Country of Origin | KR |
| Diameter | 0.138 in |
| Drill Size | 0.1096 in |
| Finish|Coating | Hardslick |
| Gross Weight Per Pack | 0.0100 lb |
| Industry Standard | 302A |
| Length of Square | 0.19 in |
| Neck Diameter | 0.094 in |
| Overall Length | 2 in |
| Series | L1 |
| Shank Diameter | 0.141 in |
| Shank Type | Square |
| Square Size | 0.11 in |
| Standards | ANSI Specified |
| Tap Type | SPPT |
| Thread Diameter | #6 |
| Thread Length | 0.413 in |
| Thread Standard | UNC |
| Through Coolant | No |
| TPI or Pitch | 32 |
| Type | Multi-Purpose Single End |
| Usable Length | 0.689 in |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Chamfer Type | Plug |
| Cutting Direction | Right Hand |
| Material | HSS-V |
| Number of Flutes | 2 |
| Thread Limit | H3 |
| Thread Size | #6-32 |
| 60 deg thread |
| 0.11 in square size |
| 4P-5P chamfer |
| H3 thread limit |
