YG-1

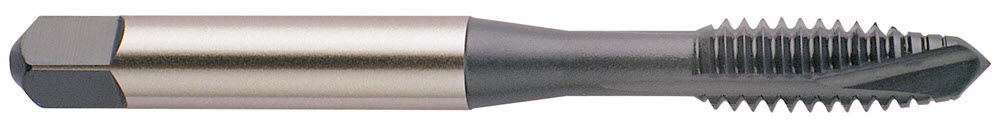

YG-1 J2504 3/8 - 24, H4 3 FLUTE SPIRAL POINTED PLUG HARDSLICK COATED TAP FOR STAINLESS STEELS UPTO 28HRc
YG-1
YG-1 J2504 3/8 - 24, H4 3 FLUTE SPIRAL POINTED PLUG HARDSLICK COATED TAP FOR STAINLESS STEELS UPTO 28HRc
SKUPDW~12098641
MFGR #J2504
Your Cost: $46.29/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Catalog Number J2504 Chamfer Length 4P-5P Connection 0.381 x 0.286 in Country of Origin KR Diameter 0.375 in Drill Size 0.3371 in Finish|Coating Hardslick Gross Weight Per Pack 1.2500 lb Industry Standard 302A Length of Square 0.44 in Neck Diameter 0.316 in Overall Length 2.94 in Series J2 Shank Diameter 0.381 in Shank Type Square Square Size 0.286 in Tap Type SPPT Thread Diameter 3/8 in Thread Length 0.748 in Thread Standard UNF TPI or Pitch 24 Usable Length 1.252 in Brand YG-1 Manufacturer YG-1 U.S.A. Chamfer Type Plug Material HSSE-V3 Number of Flutes 3 Thread Limit H4 Thread Size 3/8-24
content loaded
content loaded
- Attributes
- Substitute Products
| Catalog Number | J2504 |
| Chamfer Length | 4P-5P |
| Connection | 0.381 x 0.286 in |
| Country of Origin | KR |
| Diameter | 0.375 in |
| Drill Size | 0.3371 in |
| Finish|Coating | Hardslick |
| Gross Weight Per Pack | 1.2500 lb |
| Industry Standard | 302A |
| Length of Square | 0.44 in |
| Neck Diameter | 0.316 in |
| Overall Length | 2.94 in |
| Series | J2 |
| Shank Diameter | 0.381 in |
| Shank Type | Square |
| Square Size | 0.286 in |
| Tap Type | SPPT |
| Thread Diameter | 3/8 in |
| Thread Length | 0.748 in |
| Thread Standard | UNF |
| TPI or Pitch | 24 |
| Usable Length | 1.252 in |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Chamfer Type | Plug |
| Material | HSSE-V3 |
| Number of Flutes | 3 |
| Thread Limit | H4 |
| Thread Size | 3/8-24 |
