YG-1

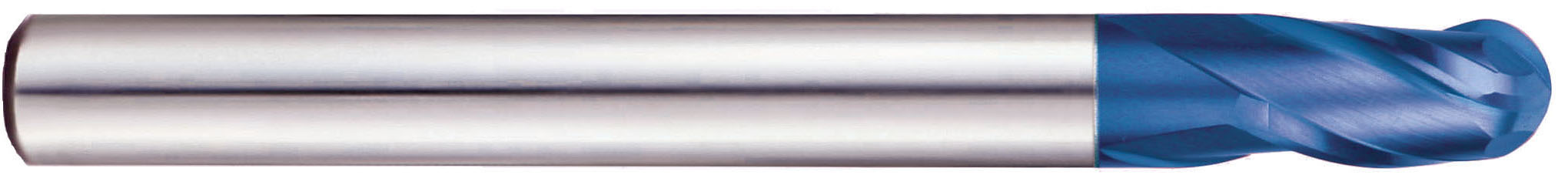

YG-1 G8A59100 10 x 10 x 18 x 100 R5.0 3 FLUTE BALL X-5070 END MILL
YG-1
YG-1 G8A59100 10 x 10 x 18 x 100 R5.0 3 FLUTE BALL X-5070 END MILL
SKUPDW~10959059
MFGR #G8A59100
Your Cost: $312.92/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Steel, Hardened Steel Catalog Number G8A59100 Country of Origin KR Cut Type Center Cutting Direction Right Hand Flute Type Spiral Gross Weight Per Pack 0.2500 lb Helix Angle 30 ° Material Carbide Nose Radius 5 mm Series G8A59 Shank Type Plain Type Carbide, 3 Flute Ball Nose Brand YG-1 Manufacturer YG-1 U.S.A. Cutter Diameter 10 mm Finish Blue Coating Length of Cut 18 mm Number of Flutes 3 Overall Length 100 mm Shank Diameter 10 mm Steel, Hardened Steel
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Steel, Hardened Steel |
| Catalog Number | G8A59100 |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.2500 lb |
| Helix Angle | 30 ° |
| Material | Carbide |
| Nose Radius | 5 mm |
| Series | G8A59 |
| Shank Type | Plain |
| Type | Carbide, 3 Flute Ball Nose |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Cutter Diameter | 10 mm |
| Finish | Blue Coating |
| Length of Cut | 18 mm |
| Number of Flutes | 3 |
| Overall Length | 100 mm |
| Shank Diameter | 10 mm |
| Steel, Hardened Steel |
