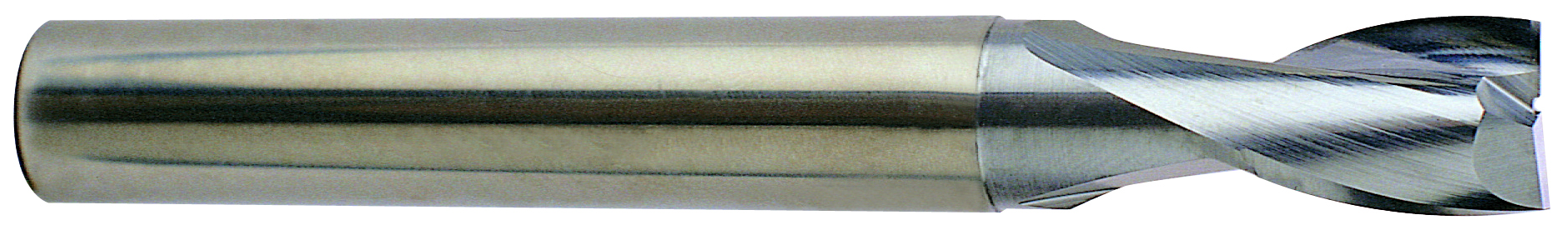

YG-1 EG930030 3.0 x 3 x 4 x 8 x 40 R.2 x N2.9 2 FLUTE 25 DEGREE HELIX STUB CUT LENGTH CORNER RADIUS TICN COATED CARBIDE FOR ALUMINUM
YG-1 EG930030 3.0 x 3 x 4 x 8 x 40 R.2 x N2.9 2 FLUTE 25 DEGREE HELIX STUB CUT LENGTH CORNER RADIUS TICN COATED CARBIDE FOR ALUMINUM
SKUPDW~10957185
MFGR #EG930030
Your Cost: $39.64/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Non-Ferrous Materials Catalog Number EG930030 Corner Radius 0.2 mm Country of Origin KR Cut Type Center Cutting Direction Right Hand Flute Type Spiral Gross Weight Per Pack 0.0200 lb Helix Angle 25 ° Material Carbide Neck Diameter 2.9 mm Series EG930 Shank Style Plain Shank Type Plain Type Carbide, 2 Flute 25° Helix Stub Cut Length Corner Radius TiCN Coated Usable Length 8.0 mm Brand YG-1 Manufacturer YG-1 U.S.A. Cutter Diameter 3 mm Finish TiCN Length of Cut 4 mm Number of Flutes 2 Overall Length 40 mm Shank Diameter 3 mm Non-Ferrous Materials
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Non-Ferrous Materials |
| Catalog Number | EG930030 |
| Corner Radius | 0.2 mm |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.0200 lb |
| Helix Angle | 25 ° |
| Material | Carbide |
| Neck Diameter | 2.9 mm |
| Series | EG930 |
| Shank Style | Plain |
| Shank Type | Plain |
| Type | Carbide, 2 Flute 25° Helix Stub Cut Length Corner Radius TiCN Coated |
| Usable Length | 8.0 mm |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Cutter Diameter | 3 mm |
| Finish | TiCN |
| Length of Cut | 4 mm |
| Number of Flutes | 2 |
| Overall Length | 40 mm |
| Shank Diameter | 3 mm |
| Non-Ferrous Materials |
