YG-1

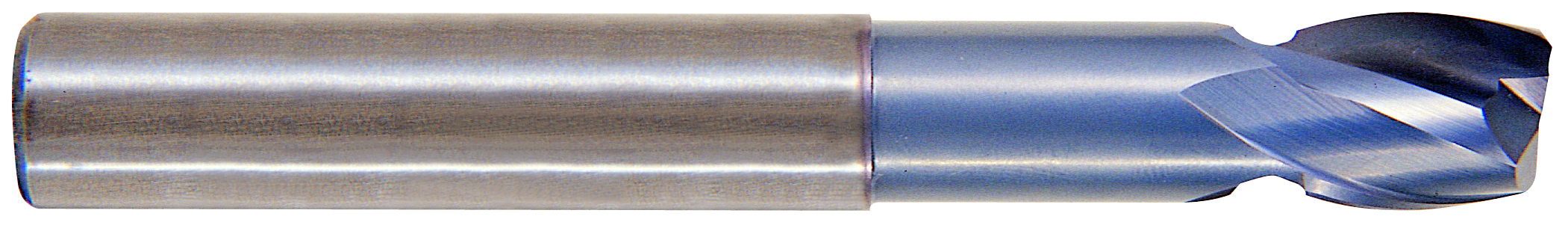

YG-1 EG909120 12.0 x 12 x 14 x 40 x 90 R1.0 N11.0 2 FLUTE 30 DEGREE HELIX STUB CUT CORNER RADIUS WITH NECK TICN COATED CARBIDE
YG-1
YG-1 EG909120 12.0 x 12 x 14 x 40 x 90 R1.0 N11.0 2 FLUTE 30 DEGREE HELIX STUB CUT CORNER RADIUS WITH NECK TICN COATED CARBIDE
SKUPDW~10957176
MFGR #EG909120
Your Cost: $188.35/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Non-Ferrous Materials Catalog Number EG909120 Country of Origin KR Cut Type Center Cutting Direction Right Hand Flute Type Spiral Gross Weight Per Pack 0.3000 lb Helix Angle 30 ° Material Carbide Neck Diameter 11.0 mm Series EG909 Shank Style Plain Shank Type Plain Type Carbide, 2 Flute Stub Cut Length Corner Radius with Neck TiCN Coated Usable Length 40.0 mm Brand YG-1 Manufacturer YG-1 U.S.A. Corner Radius 1 mm Cutter Diameter 12 mm Finish TiCN Length of Cut 14 mm Number of Flutes 2 Overall Length 90 mm Shank Diameter 12 mm Non-Ferrous Materials
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Non-Ferrous Materials |
| Catalog Number | EG909120 |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.3000 lb |
| Helix Angle | 30 ° |
| Material | Carbide |
| Neck Diameter | 11.0 mm |
| Series | EG909 |
| Shank Style | Plain |
| Shank Type | Plain |
| Type | Carbide, 2 Flute Stub Cut Length Corner Radius with Neck TiCN Coated |
| Usable Length | 40.0 mm |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Corner Radius | 1 mm |
| Cutter Diameter | 12 mm |
| Finish | TiCN |
| Length of Cut | 14 mm |
| Number of Flutes | 2 |
| Overall Length | 90 mm |
| Shank Diameter | 12 mm |
| Non-Ferrous Materials |
