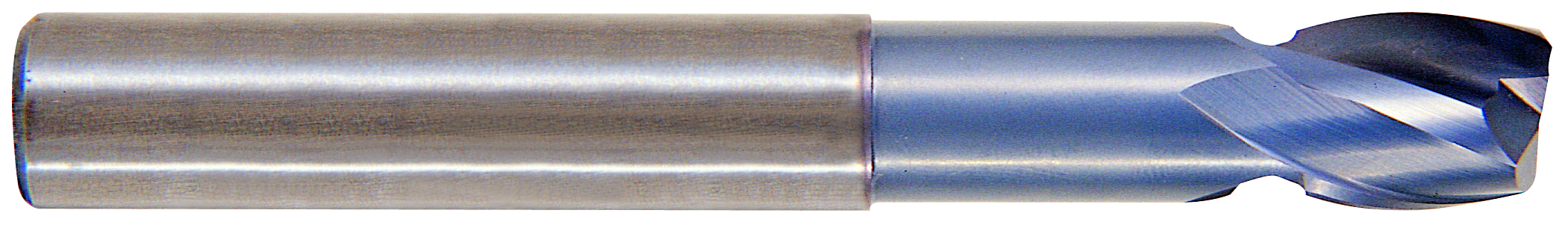

YG-1 EG909100 10.0 x10 x 12 x 36 x 80 R.8 N9.0 2 FLUTE 30 DEGREE HELIX STUB CUT CORNER RADIUS WITH NECK TICN COATED CARBIDE
YG-1 EG909100 10.0 x10 x 12 x 36 x 80 R.8 N9.0 2 FLUTE 30 DEGREE HELIX STUB CUT CORNER RADIUS WITH NECK TICN COATED CARBIDE
SKUPDW~10957175
MFGR #EG909100
Your Cost: $123.90/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Non-Ferrous Materials Catalog Number EG909100 Country of Origin KR Cut Type Center Cutting Direction Right Hand Gross Weight Per Pack 0.1800 lb Helix Angle 30 ° Material Carbide Neck Diameter 9.0 mm Series EG909 Shank Type Plain Type Carbide, 2 Flute Stub Cut Length Corner Radius with Neck TiCN Coated Usable Length 36.0 mm Brand YG-1 Manufacturer YG-1 U.S.A. Corner Radius 0.8 mm Cutter Diameter 10 mm Finish TiCN Length of Cut 12 mm Number of Flutes 2 Overall Length 80 mm Shank Diameter 10 mm Non-Ferrous Materials
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Non-Ferrous Materials |
| Catalog Number | EG909100 |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.1800 lb |
| Helix Angle | 30 ° |
| Material | Carbide |
| Neck Diameter | 9.0 mm |
| Series | EG909 |
| Shank Type | Plain |
| Type | Carbide, 2 Flute Stub Cut Length Corner Radius with Neck TiCN Coated |
| Usable Length | 36.0 mm |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Corner Radius | 0.8 mm |
| Cutter Diameter | 10 mm |
| Finish | TiCN |
| Length of Cut | 12 mm |
| Number of Flutes | 2 |
| Overall Length | 80 mm |
| Shank Diameter | 10 mm |
| Non-Ferrous Materials |
