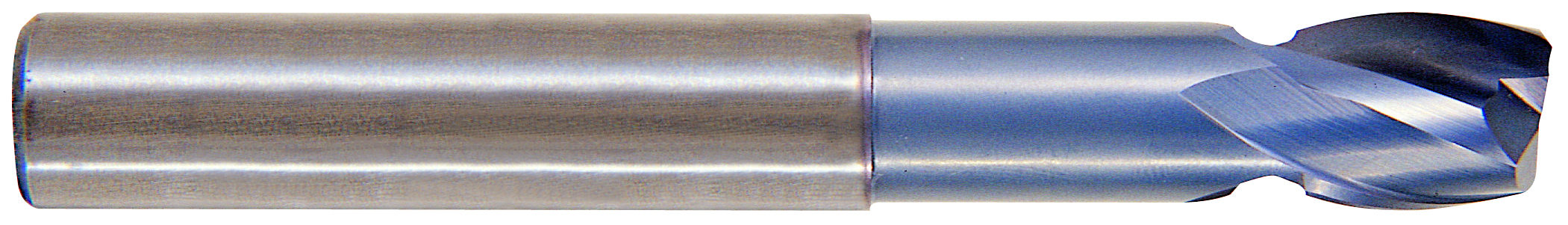

YG-1 EG909040 4.0 x 6 x 5 x 10 x 50 R.3 N3.6 2 FLUTE 30 DEGREE HELIX STUB CUT CORNER RADIUS WITH NECK TICN COATED CARBIDE
YG-1 EG909040 4.0 x 6 x 5 x 10 x 50 R.3 N3.6 2 FLUTE 30 DEGREE HELIX STUB CUT CORNER RADIUS WITH NECK TICN COATED CARBIDE
SKUPDW~10957172
MFGR #EG909040
Your Cost: $54.50/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Non-Ferrous Materials Catalog Number EG909040 Country of Origin KR Cut Type Center Cutting Direction Right Hand Gross Weight Per Pack 0.0500 lb Helix Angle 30 ° Material Carbide Neck Diameter 3.6 mm Series EG909 Shank Type Plain Type Carbide, 2 Flute Stub Cut Length Corner Radius with Neck TiCN Coated Usable Length 10.0 mm Brand YG-1 Manufacturer YG-1 U.S.A. Corner Radius 0.3 mm Cutter Diameter 4 mm Finish TiCN Length of Cut 5 mm Number of Flutes 2 Overall Length 50 mm Shank Diameter 6 mm Non-Ferrous Materials
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Non-Ferrous Materials |
| Catalog Number | EG909040 |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.0500 lb |
| Helix Angle | 30 ° |
| Material | Carbide |
| Neck Diameter | 3.6 mm |
| Series | EG909 |
| Shank Type | Plain |
| Type | Carbide, 2 Flute Stub Cut Length Corner Radius with Neck TiCN Coated |
| Usable Length | 10.0 mm |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Corner Radius | 0.3 mm |
| Cutter Diameter | 4 mm |
| Finish | TiCN |
| Length of Cut | 5 mm |
| Number of Flutes | 2 |
| Overall Length | 50 mm |
| Shank Diameter | 6 mm |
| Non-Ferrous Materials |
