YG-1

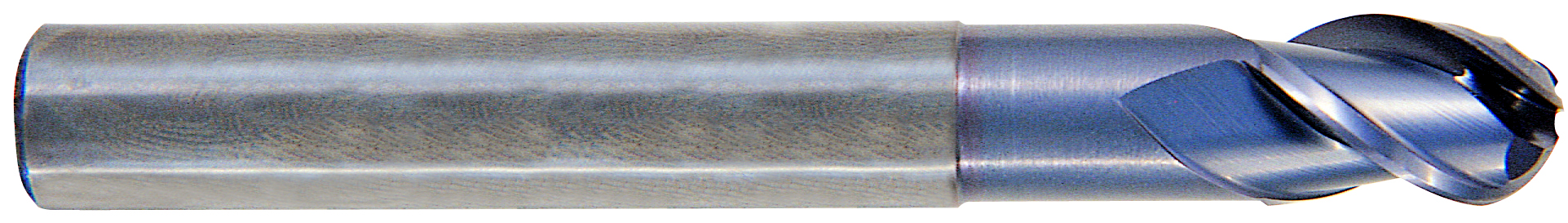

YG-1 EG908050 5.0 x 6 x 7.5 x 10 x 65 R3.0 N5.6 3 FLUTE 40 DEGREE HELIX LONG LENGTH BALL NOSE WITH NECK TICN COATED CARBIDE
YG-1
YG-1 EG908050 5.0 x 6 x 7.5 x 10 x 65 R3.0 N5.6 3 FLUTE 40 DEGREE HELIX LONG LENGTH BALL NOSE WITH NECK TICN COATED CARBIDE
SKUPDW~10957166
MFGR #EG908050
Your Cost: $72.03/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Non-Ferrous Materials Catalog Number EG908050 Country of Origin KR Cut Type Center Cutting Direction Right Hand Flute Type Spiral Gross Weight Per Pack 0.0600 lb Helix Angle 40 ° Material Carbide Neck Diameter 4.6 mm Nose Radius 2.5 mm Series EG908 Shank Style Plain Shank Type Plain Type Carbide, 3 Flute 40° Helix Long Length Ball Nose with Neck TiCN Coated Usable Length 10.0 mm Brand YG-1 Manufacturer YG-1 U.S.A. Cutter Diameter 5 mm Finish TiCN Length of Cut 7.5 mm Number of Flutes 3 Overall Length 65 mm Shank Diameter 6 mm Non-Ferrous Materials
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Non-Ferrous Materials |
| Catalog Number | EG908050 |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.0600 lb |
| Helix Angle | 40 ° |
| Material | Carbide |
| Neck Diameter | 4.6 mm |
| Nose Radius | 2.5 mm |
| Series | EG908 |
| Shank Style | Plain |
| Shank Type | Plain |
| Type | Carbide, 3 Flute 40° Helix Long Length Ball Nose with Neck TiCN Coated |
| Usable Length | 10.0 mm |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Cutter Diameter | 5 mm |
| Finish | TiCN |
| Length of Cut | 7.5 mm |
| Number of Flutes | 3 |
| Overall Length | 65 mm |
| Shank Diameter | 6 mm |
| Non-Ferrous Materials |
