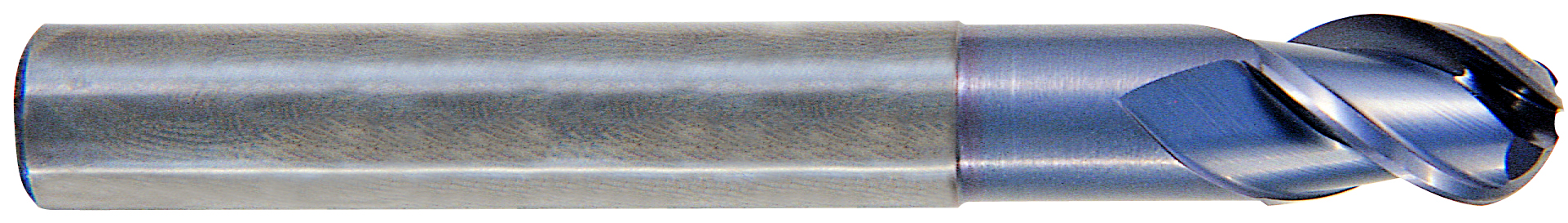

YG-1 EG908035 3.5 x 6 x 5 x 7 x 65 R1.75 N3.2 3 FLUTE 40 DEGREE HELIX LONG LENGTH BALL NOSE WITH NECK TICN COATED CARBIDE
YG-1 EG908035 3.5 x 6 x 5 x 7 x 65 R1.75 N3.2 3 FLUTE 40 DEGREE HELIX LONG LENGTH BALL NOSE WITH NECK TICN COATED CARBIDE
SKUPDW~10957164
MFGR #EG908035
Your Cost: $72.03/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Non-Ferrous Materials Catalog Number EG908035 Country of Origin KR Cut Type Center Cutting Direction Right Hand Flute Type Spiral Gross Weight Per Pack 0.0600 lb Helix Angle 40 ° Material Carbide Neck Diameter 3.2 mm Nose Radius 1.75 mm Series EG908 Shank Style Plain Shank Type Plain Type Carbide, 3 Flute 40° Helix Long Length Ball Nose with Neck TiCN Coated Usable Length 7.0 mm Brand YG-1 Manufacturer YG-1 U.S.A. Cutter Diameter 3.5 mm Finish TiCN Length of Cut 5 mm Number of Flutes 3 Overall Length 65 mm Shank Diameter 6 mm Non-Ferrous Materials
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Non-Ferrous Materials |
| Catalog Number | EG908035 |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.0600 lb |
| Helix Angle | 40 ° |
| Material | Carbide |
| Neck Diameter | 3.2 mm |
| Nose Radius | 1.75 mm |
| Series | EG908 |
| Shank Style | Plain |
| Shank Type | Plain |
| Type | Carbide, 3 Flute 40° Helix Long Length Ball Nose with Neck TiCN Coated |
| Usable Length | 7.0 mm |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Cutter Diameter | 3.5 mm |
| Finish | TiCN |
| Length of Cut | 5 mm |
| Number of Flutes | 3 |
| Overall Length | 65 mm |
| Shank Diameter | 6 mm |
| Non-Ferrous Materials |
