YG-1

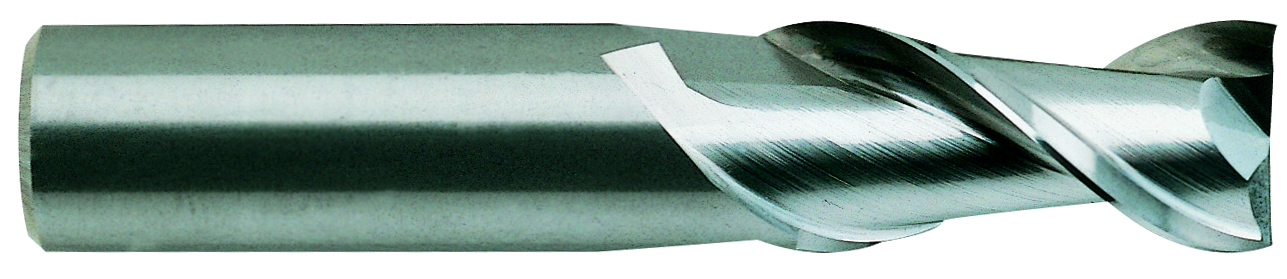

YG-1 EG522200 20 x 20 x 38 x 104 2 FLUTE 45 DEG HELIX TICN COATED ALU-POWER
YG-1
YG-1 EG522200 20 x 20 x 38 x 104 2 FLUTE 45 DEG HELIX TICN COATED ALU-POWER
SKUPDW~10957160
MFGR #EG522200
Your Cost: $436.36/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Non-Ferrous Materials Catalog Number EG522200 Country of Origin KR Cut Type Center Cutting Direction Right Hand Flute Type Spiral Gross Weight Per Pack 0.8500 lb Helix Angle 45 ° Material Carbide Series E5522 Shank Style Plain Shank Type Plain Type Carbide, 2 Flute 45° Helix Long Length - TiCN Coated Brand YG-1 Manufacturer YG-1 U.S.A. Cutter Diameter 20 mm Finish TiCN Length of Cut 38 mm Number of Flutes 2 Overall Length 104 mm Shank Diameter 20 mm Non-Ferrous Materials
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Non-Ferrous Materials |
| Catalog Number | EG522200 |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.8500 lb |
| Helix Angle | 45 ° |
| Material | Carbide |
| Series | E5522 |
| Shank Style | Plain |
| Shank Type | Plain |
| Type | Carbide, 2 Flute 45° Helix Long Length - TiCN Coated |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Cutter Diameter | 20 mm |
| Finish | TiCN |
| Length of Cut | 38 mm |
| Number of Flutes | 2 |
| Overall Length | 104 mm |
| Shank Diameter | 20 mm |
| Non-Ferrous Materials |
