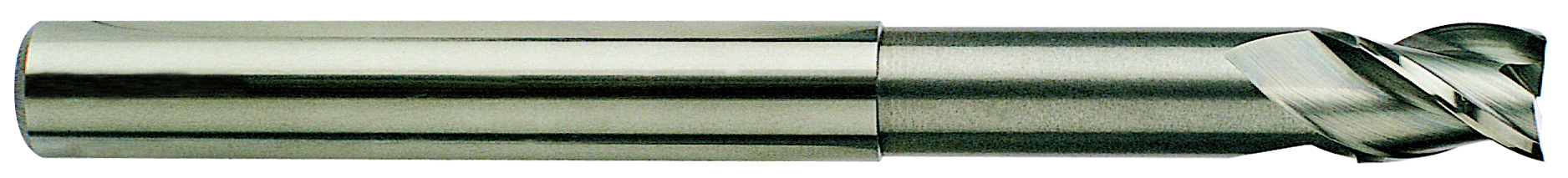

YG-1 EA40401C 5/8 x 5/8 x 3/4 x 2-1/4 LBS 5 3 FLUTE 37 DEGREE HELIX 0.060 RADIUS & EXTENDED NECK TICN COATEDALU-POWER
YG-1 EA40401C 5/8 x 5/8 x 3/4 x 2-1/4 LBS 5 3 FLUTE 37 DEGREE HELIX 0.060 RADIUS & EXTENDED NECK TICN COATEDALU-POWER
SKUPDW~10957105
MFGR #EA40401C
Your Cost: $252.32/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Non-Ferrous Materials Catalog Number EA40401C Country of Origin KR Cut Type Center Cutting Direction Right Hand Gross Weight Per Pack 0.7300 lb Helix Angle 37 ° Material Carbide Neck Diameter 0.585 in Series E5985 Shank Type Plain Type Carbide, 3 Flute 37° Helix With Extended Neck Corner Radius Usable Length 2.25 in Brand YG-1 Manufacturer YG-1 U.S.A. Corner Radius 0.06 in Cutter Diameter 0.625 in Finish TiCN Length of Cut 0.75 in Number of Flutes 3 Overall Length 5 in Shank Diameter 0.625 in Non-Ferrous Materials
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Non-Ferrous Materials |
| Catalog Number | EA40401C |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.7300 lb |
| Helix Angle | 37 ° |
| Material | Carbide |
| Neck Diameter | 0.585 in |
| Series | E5985 |
| Shank Type | Plain |
| Type | Carbide, 3 Flute 37° Helix With Extended Neck Corner Radius |
| Usable Length | 2.25 in |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Corner Radius | 0.06 in |
| Cutter Diameter | 0.625 in |
| Finish | TiCN |
| Length of Cut | 0.75 in |
| Number of Flutes | 3 |
| Overall Length | 5 in |
| Shank Diameter | 0.625 in |
| Non-Ferrous Materials |
