YG-1

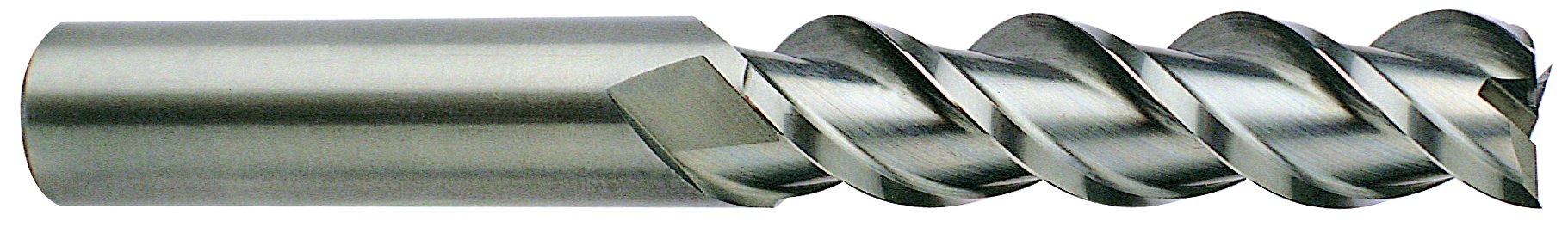

YG-1 EA30641C 1 x 1 x 3-1/4 x 6 3 FLUTE 45 DEGREE HELIX LONG LENGTH 0.120 CORNER RADIUS TICN COATED ALU-POWER
YG-1
YG-1 EA30641C 1 x 1 x 3-1/4 x 6 3 FLUTE 45 DEGREE HELIX LONG LENGTH 0.120 CORNER RADIUS TICN COATED ALU-POWER
SKUPDW~10957099
MFGR #EA30641C
Your Cost: $715.97/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Non-Ferrous Materials Catalog Number EA30641C Country of Origin KR Cut Type Center Cutting Direction Right Hand Gross Weight Per Pack 1.8700 lb Helix Angle 45 ° Material Carbide Series E5984 Shank Type Plain Type Carbide, 3 Flute 45° Helix Long Length Square and Corner Radius Brand YG-1 Manufacturer YG-1 U.S.A. Corner Radius 0.12 in Cutter Diameter 1 in Finish TiCN Length of Cut 3.25 in Number of Flutes 3 Overall Length 6 in Shank Diameter 1 in Non-Ferrous Materials
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Non-Ferrous Materials |
| Catalog Number | EA30641C |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 1.8700 lb |
| Helix Angle | 45 ° |
| Material | Carbide |
| Series | E5984 |
| Shank Type | Plain |
| Type | Carbide, 3 Flute 45° Helix Long Length Square and Corner Radius |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Corner Radius | 0.12 in |
| Cutter Diameter | 1 in |
| Finish | TiCN |
| Length of Cut | 3.25 in |
| Number of Flutes | 3 |
| Overall Length | 6 in |
| Shank Diameter | 1 in |
| Non-Ferrous Materials |
