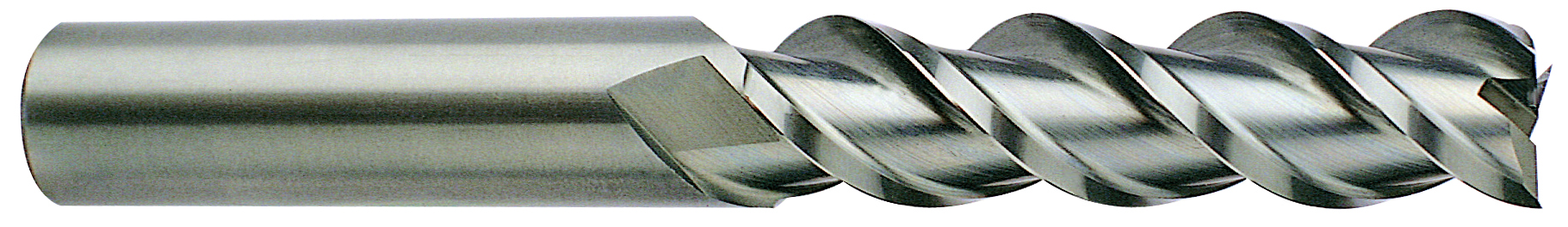

YG-1 EA30401C 5/8 x 5/8 x 2-1/2 x 5 3 FLUTE 45 DEGREE HELIX LONG LENGTH 0.120 CORNER RADIUS TICN COATED ALU-POWER
YG-1 EA30401C 5/8 x 5/8 x 2-1/2 x 5 3 FLUTE 45 DEGREE HELIX LONG LENGTH 0.120 CORNER RADIUS TICN COATED ALU-POWER
SKUPDW~10957095
MFGR #EA30401C
Your Cost: $300.08/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Non-Ferrous Materials Catalog Number EA30401C Country of Origin KR Cut Type Center Cutting Direction Right Hand Flute Type Spiral Gross Weight Per Pack 0.6400 lb Helix Angle 45 ° Material Carbide Series E5984 Shank Style Plain Shank Type Plain Type Carbide, 3 Flute 45° Helix Long Length Square and Corner Radius Brand YG-1 Manufacturer YG-1 U.S.A. Corner Radius 0.12 in Cutter Diameter 0.625 in Finish TiCN Length of Cut 2.5 in Number of Flutes 3 Overall Length 5 in Shank Diameter 0.625 in Non-Ferrous Materials
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Non-Ferrous Materials |
| Catalog Number | EA30401C |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.6400 lb |
| Helix Angle | 45 ° |
| Material | Carbide |
| Series | E5984 |
| Shank Style | Plain |
| Shank Type | Plain |
| Type | Carbide, 3 Flute 45° Helix Long Length Square and Corner Radius |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Corner Radius | 0.12 in |
| Cutter Diameter | 0.625 in |
| Finish | TiCN |
| Length of Cut | 2.5 in |
| Number of Flutes | 3 |
| Overall Length | 5 in |
| Shank Diameter | 0.625 in |
| Non-Ferrous Materials |
