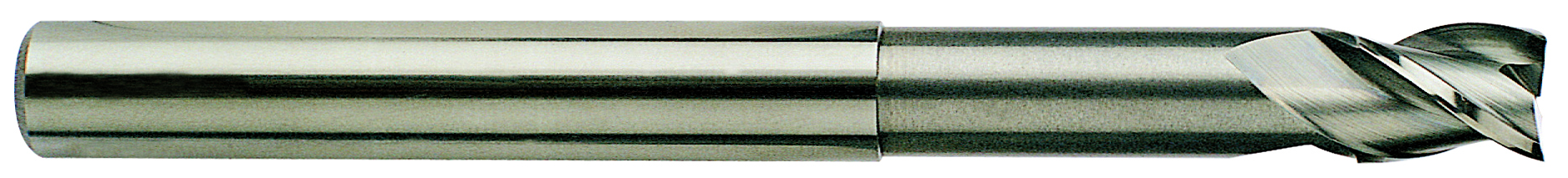

YG-1 EA10482 3/4 x 3/4 x 1 x 3-1/4 LBS 6 3 FLUTE 37 DEGREE HELIX 0.120 RADIUS & EXTENDED NECK ALU-POWER
Custom_Product_Images_Illustration
YG-1 EA10482 3/4 x 3/4 x 1 x 3-1/4 LBS 6 3 FLUTE 37 DEGREE HELIX 0.120 RADIUS & EXTENDED NECK ALU-POWER
SKUPDW~10957074
MFGR #EA10482
Your Cost: $333.58/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Non-Ferrous Materials Catalog Number EA10482 Country of Origin KR Cut Type Center Cutting Direction Right Hand Gross Weight Per Pack 1.0400 lb Helix Angle 37 ° Material Carbide Neck Diameter 0.71 in Series E5985 Shank Type Plain Type Carbide, 3 Flute 37° Helix with Extended Neck Cornier Radius Usable Length 3.25 in Brand YG-1 Manufacturer YG-1 U.S.A. Corner Radius 0.12 in Cutter Diameter 0.75 in Finish Bright Length of Cut 1 in Number of Flutes 3 Overall Length 6 in Shank Diameter 0.75 in Non-Ferrous Materials
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Non-Ferrous Materials |
| Catalog Number | EA10482 |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 1.0400 lb |
| Helix Angle | 37 ° |
| Material | Carbide |
| Neck Diameter | 0.71 in |
| Series | E5985 |
| Shank Type | Plain |
| Type | Carbide, 3 Flute 37° Helix with Extended Neck Cornier Radius |
| Usable Length | 3.25 in |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Corner Radius | 0.12 in |
| Cutter Diameter | 0.75 in |
| Finish | Bright |
| Length of Cut | 1 in |
| Number of Flutes | 3 |
| Overall Length | 6 in |
| Shank Diameter | 0.75 in |
| Non-Ferrous Materials |
