YG-1

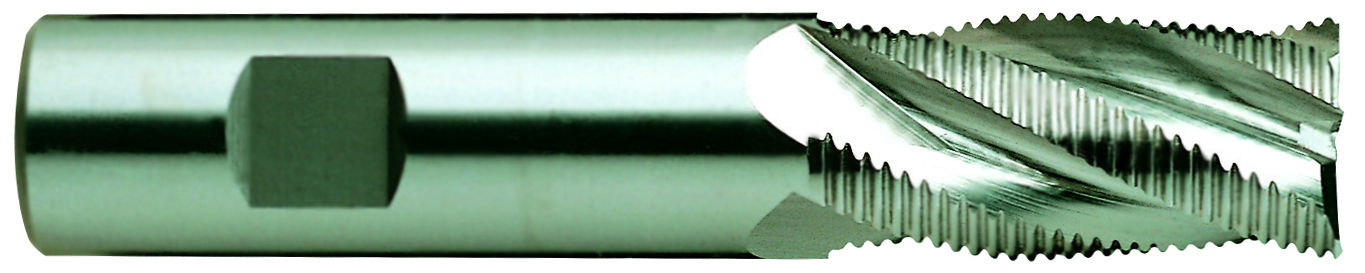

YG-1 E9990905TF 1 x 1 x 3 x 5-1/2 5 FLUTE MEDIUM LENGTH CENTER CUT FINE PITCH ROUGHER TIALN-FUTURA COATED POWDER METAL TANK-POWER
Custom_Product_Images_Illustration
YG-1
YG-1 E9990905TF 1 x 1 x 3 x 5-1/2 5 FLUTE MEDIUM LENGTH CENTER CUT FINE PITCH ROUGHER TIALN-FUTURA COATED POWDER METAL TANK-POWER
SKU1396143
MFGR #E9990905TF
Your Cost: $127.35/ea
List: YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Steel, Stainless Steel, Cast Iron Catalog Number E9990905TF Country of Origin KR Cut Type Center Cutting Direction Right Hand Flute Type Spiral Gross Weight Per Pack 1.0900 lb Helix Angle 30 ° Material Premium HSS-PM Series E9990 TANK-POWER Shank Length 2-1/2 Shank Style Flat Shank Type Flat Type Premium HSS-PM, 5 Flute Regular Length Fine Pitch Roughing Stock Status NONSTOCK Brand YG-1 Manufacturer YG-1 U.S.A. Cutter Diameter 1 in Finish TiALN Length of Cut 3 in Number of Flutes 5 Overall Length 5.5 in Shank Diameter 1 in Steel, Stainless Steel, Cast Iron
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Steel, Stainless Steel, Cast Iron |
| Catalog Number | E9990905TF |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Gross Weight Per Pack | 1.0900 lb |
| Helix Angle | 30 ° |
| Material | Premium HSS-PM |
| Series | E9990 TANK-POWER |
| Shank Length | 2-1/2 |
| Shank Style | Flat |
| Shank Type | Flat |
| Type | Premium HSS-PM, 5 Flute Regular Length Fine Pitch Roughing |
| Stock Status | NONSTOCK |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Cutter Diameter | 1 in |
| Finish | TiALN |
| Length of Cut | 3 in |
| Number of Flutes | 5 |
| Overall Length | 5.5 in |
| Shank Diameter | 1 in |
| Steel, Stainless Steel, Cast Iron |
