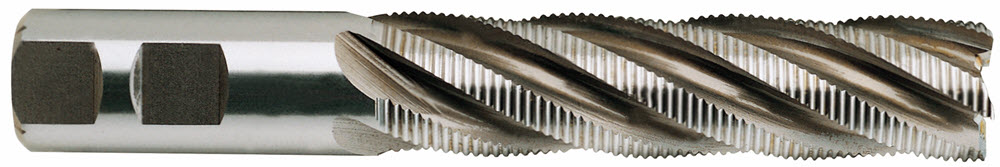

YG-1 E9990904TF 1-1/4 x 1-1/4 x 4 x 6-1/2 6 FLUTE LONG LENGTH CENTER CUT FINE PITCH ROUGHER TIALN-FUTURA COATED POWDER METAL TANK-POWER
Custom_Product_Images_Illustration
YG-1 E9990904TF 1-1/4 x 1-1/4 x 4 x 6-1/2 6 FLUTE LONG LENGTH CENTER CUT FINE PITCH ROUGHER TIALN-FUTURA COATED POWDER METAL TANK-POWER
SKUPDW~10956949
MFGR #E9990904TF
Your Cost: $385.85/ea
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
YG-1 is a manufacturer of high-quality drills, taps, end mills, spade drills, and rotary tooling. Refer to the sections below for all specifications and product details.
Application Steel, Stainless Steel, Cast Iron Catalog Number E9990904TF Country of Origin KR Cut Type Center Cutting Direction Right Hand Flute Type Spiral Gross Weight Per Pack 1.9600 lb Helix Angle 30 ° Material Premium HSS-PM Series E9A86 Shank Length 2-1/2 Shank Style Flat Shank Type Flat Type Premium HSS-PM, 6 Flute Regular Length Fine Pitch Roughing Brand YG-1 Manufacturer YG-1 U.S.A. Cutter Diameter 1.25 in Finish TiAlN Length of Cut 4 in Number of Flutes 6 Overall Length 6.5 in Shank Diameter 1.25 in Steel, Stainless Steel, Cast Iron
content loaded
content loaded
content loaded
- Attributes
- Applications
- Substitute Products
| Application | Steel, Stainless Steel, Cast Iron |
| Catalog Number | E9990904TF |
| Country of Origin | KR |
| Cut Type | Center |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Gross Weight Per Pack | 1.9600 lb |
| Helix Angle | 30 ° |
| Material | Premium HSS-PM |
| Series | E9A86 |
| Shank Length | 2-1/2 |
| Shank Style | Flat |
| Shank Type | Flat |
| Type | Premium HSS-PM, 6 Flute Regular Length Fine Pitch Roughing |
| Brand | YG-1 |
| Manufacturer | YG-1 U.S.A. |
| Cutter Diameter | 1.25 in |
| Finish | TiAlN |
| Length of Cut | 4 in |
| Number of Flutes | 6 |
| Overall Length | 6.5 in |
| Shank Diameter | 1.25 in |
| Steel, Stainless Steel, Cast Iron |
